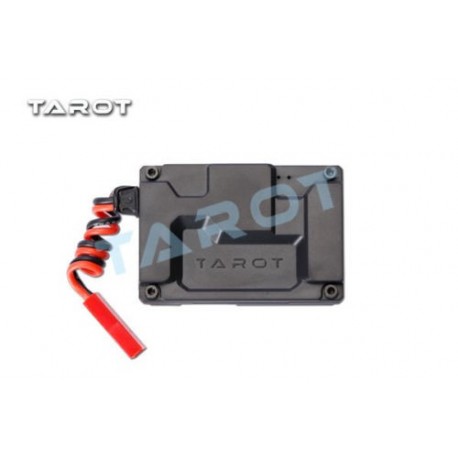

TAROT ZYX-OSD TL300C OSD Video Overlay System for FPV

(SKU): TL300C

Νέο προϊόν


45,00 €

Άλλες πληροφορίες


  •  With ZYX-OSD, basic fight information, such as altitude and speed, can be superposed on the receiver. You can obtain actual fight status in real time to ensure a safe and delightful journey.
  •  Moreover, the data-recording function ensures all the fight data would be saved in MINI-SD card, which facilitates you to analyze information and serves as a black box in the critical moment.
  •  Also, please make sure MINI-SD has been formatted into FAT32.

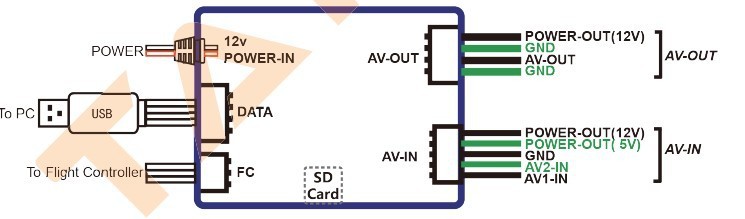

  •  Two video outputs are available to be switched by R/C, and PAL or NTSC (video format) can berecognized automatically.

 Please note that: ZYX-OSD has to work with ZYX-M fight control system

  •  Input voltage/current:12 V (80mA) with no external power
  •  Output voltage/current: 12V(1.5A) & 5V(2.0A)

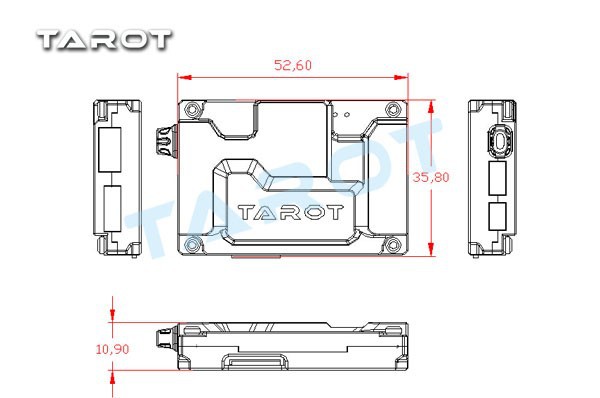

  •  Dimensions: 53mm*36 mm*10 mm
  •  Weigh:18g
  •  Video Format: PAL/NTSC (AUTO-identifcation)
  •  Operating Temperature: -20 ~60 Centigrade


                                                 TL300 1
