Πώληση! Youbi XV-130 130MM FPV Racer ARF with F3 Integraded 40CH VTX 600TVL CAM 4 IN 1 BLHeli_S 20A ESC Μεγαλύτερη προβολή

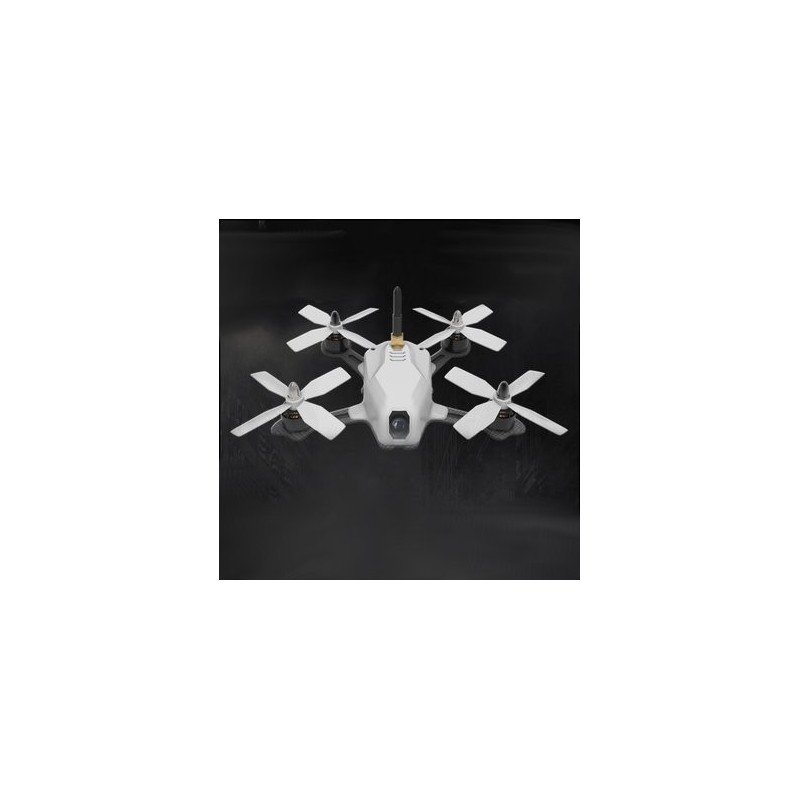

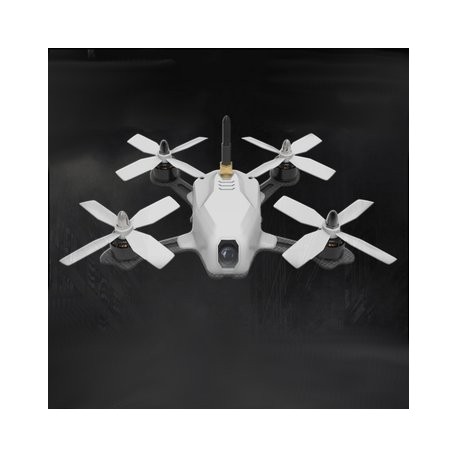

Youbi XV-130 130MM FPV Racer ARF with F3 Integraded 40CH VTX 600TVL CAM 4 IN 1 BLHeli_S 20A ESC

(SKU): 518232

Νέο προϊόν

200,00 € με Φ.Π.Α

-10,00 €

210,00 € με Φ.Π.Α

Άλλες πληροφορίες

Description : User Manual
Brand Name : Youbi
Item Name : XV-130 ARF
Color :   White
Propeller : 75mm
Wheelbase : 130mm
Fuselage : 150 * 115 * 35mm
Weight : 115g
Motor : 1306 3600kv
ESC : BLHeli-S 20A
Flight Controller : Awesome F3

Camera :
Format : PAL/NTSC
Sensor :  CMOS
FOV : 100 degree
Resolution : 600 TVL
Video Output : 1.0V/75P-PΩ
Power Input :  DC5V

5.8G VTX :
Transmission Power : 25mW/200mW/400mW
Channel : 40CH
Working Voltage : 5V 1A
Working Frequency : 5600-6000mHz
Antenna Connector :

1306 Motor:
Framework : 12N14P
NO. of Cells : 2-4s
Length : 2mm
KV : 3600
Max Thrust : 265g
Weight : 10g

BLHeli-S 20A :
Copper Thickness : 3OZ
Max. Power Input :  4S
Max. Current : 40A
Processor : EFM8BB2

F3 Flight Controller Integrade  5.8G VTX :
Awesome F3 FC : 5V/15A BEC
F303 Flight Controller with power anti-reverse connection function
Support cleanflight
Integraded 5.8G 40CH VTX, with 4P socket
25mW/200mW/400mW Adjustable
Power Connector :  XT-30


Features :
Carbon fiber frame kit and PP material cover ,toughness and impact resistan
Light and small, can play it indoors and outdoors.
Latest 4 in 1 BLHELI-S ESC, better Linear flight,save more room.
Uses multi-functional module disign, integraded F3 flight controller and 5.8G VTX

Recommanded Part(not included) :
Remote Control System:  Recever and Transmitter
Battery


Package Included : (only white canopy included.)
1 x Youbi XV-130 Frame Kit
1 x PP Cover
1 x F3 5.8G VTX Integraded Board
1 x 4 in 1 BLHeli-S 20A ESC
4 x 1306 Motor
4 x 75MM Prop
1 x 600TVL CMOS Camera

1 x Antenna
