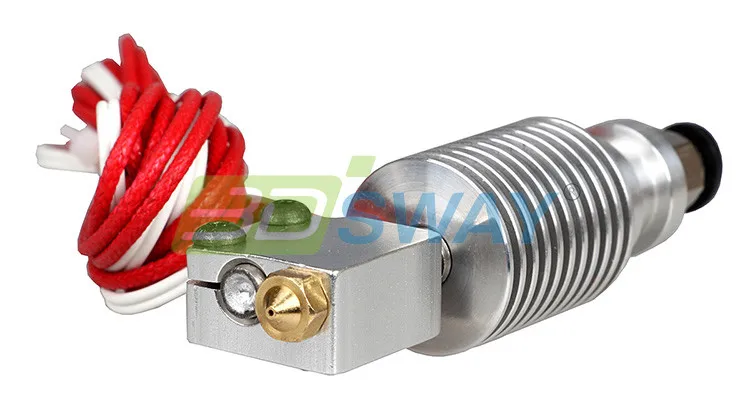

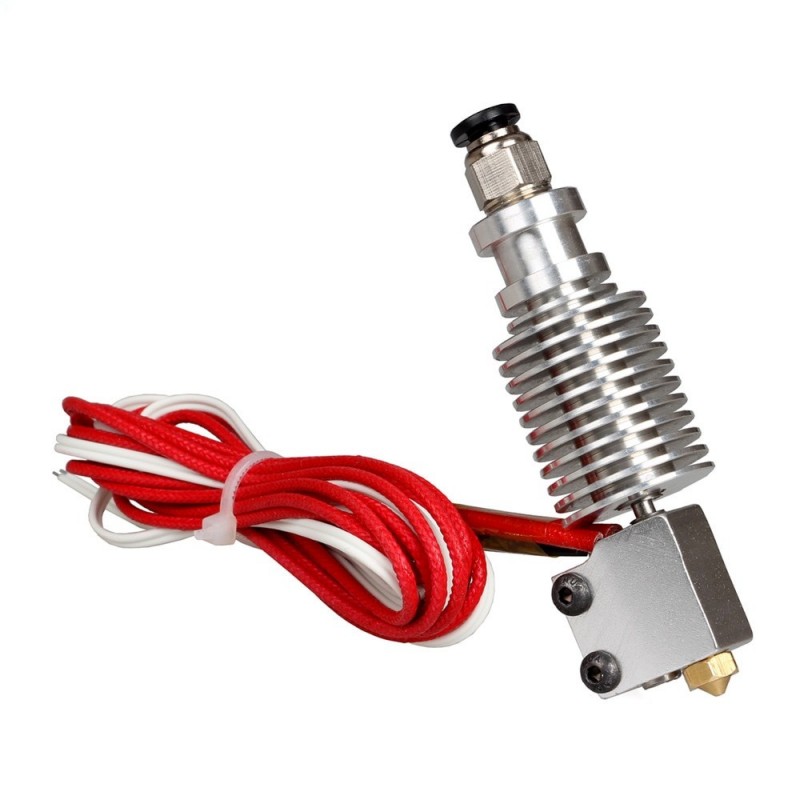

3DSWAY Assembled 3D V6 Hotend Kit with Volcano Nozzle All Metal J-head  for 1.75mm 0.6 Nozzle

Note: Please leave us message with your detailed need, or we'll send as the default package(0.6/1.75mm, 12V40W),  0.6/0.8/1.0/1.2mm Nozzle for option.

Modified from the 3D V6 Kit, the feeding pipe and heat cooling tube are the same as 3D V6, the heating block and the nozzle are Volcano ones, suit for the large-scale 3D printing.

3D V6 feeding pipe:



Specifications: inner hole 2mm; radiating end threaded M7; heated end M6; total length : 22.4mm;

Material: 316F / stainless steel;

Scope: 3D-V6 long distance wire;

Features: Tail part: 4.2mm hole, wearing Φ4 × 2 Teflon tube, reducing friction with the wire during the heat pipe wall.



3D V6 Heat Cooling Tube:



Specifications:

            connection thread M7

           Joint connecting thread G1/8

           Feeding hole Φ4.2 (with 4 × 2 Teflon tube PTFE)

           Installation position Φ12 × 3.7
