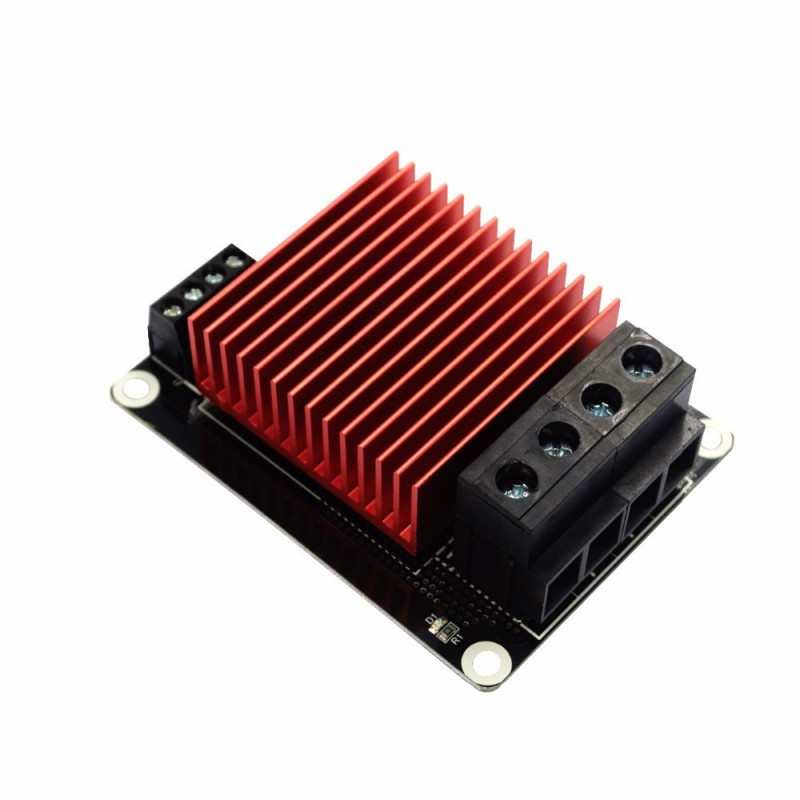

1pc 3D Printer Parts Heating Controller MOS Module MOSFET Board Heatbed/Extruder 30A

Reference: (SKU): Q-0019

In stock

Functional test done for each one

Max 280A superior performance of MOSFET

Maximum current can be up to 30A or more due to Extra large heat sink

Can use heatbed output signal of Ramp1.4 and series to control

Can use digital signal of 5-24v to control

Specification:

Function: control hot bed, print head heating

Length: 3.46inches

Width: 2.64inches

Hight: 1.22inches

Net Weight: 4.44 ounce

Power Supply: 12V-24V

Weight: 126g

Usage :

1. Plug a power supply .

2. Connect to heated bed.

3. Connect digital control signal to GND,D8 of MINI.

4. Connect to the heated bed signal on Ramps1.4 or series controller boards.

Notics:

1)Only can choose 3 OR 4 signal group .

2)Pay attention to polarity.

Package included:

1 x MOS module
