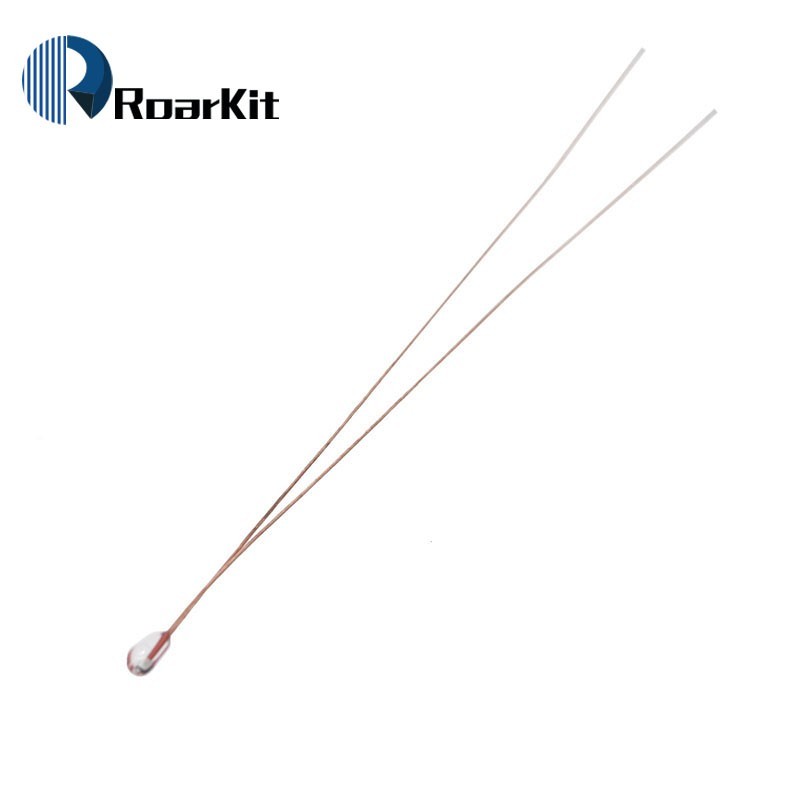

NTC thermistor, also known as negative temperature coefficient thermistor, NTC thermistor is a transition metal oxide as the main raw material of the semiconductor ceramic components, it has a resistance with the temperature changes and the corresponding changes in the characteristics, that is, At a certain temperature measurement power, the resistance of the resistance with the temperature rise and decline, the use of this feature, NTC thermistor and temperature sensors can be used in temperature compensation, to suppress inrush current and temperature and other occasions. MF51 series of products for the single-ended glass-type NTC thermistor, single-ended lead out of the glass package, matching Du magnesium wire pin, sealed and reliable; electrode using (AU) slurry ceramic sealing process, no contact; Chip completely isolated from the outside world, the electrical performance is extremely stable and reliable; can be used in high temperature and humidity environment. With a small size, high test accuracy, fast response, good consistency and so on.





【Features】





1. Glass package, strong structure, good heat resistance, can be used for harsh environments.

2. Resistance accuracy, B value of high precision, good reliability, stable work.

3. Reaction speed, high sensitivity.

4. Interchangeability, consistency, cost-effective, economical and practical.

5. Small size, suitable for small space installation and temperature measurement.

6.Glass head diameter size: 1.8mm

7. Temperature range: -50 ° ~ + 350 °





【Application】



☆ copier, printer office appliances

☆ curlers, kar oil cover, hair dryer and other beauty equipment

☆ Frequency conversion fan, electric iron, water heater, oven, hood and other household appliances temperature sensor

☆ car brake system, micro-motor, flow meter and other small space and high temperature requirements, or short response time of the occasion,

☆ fire warning system

☆ can replace the PSB-S1, PSB-S3 (PT-51F, PT-25E2, PT-312, PM-342, PM-382, PB-43, PB-41E) series





【Product Model Description】





MF51 104  F  3950

①   ②   ③   ④





① MF51 - single-ended glass package temperature measurement NTC thermistor.



② 104 - nominal resistance of the thermistor, indicating that the resistor nominal resistance: 100 × 103 (Ω)



③ The error (precision) of F - resistance is: F = ± 1%, G = ± 2%, H = ± 3%, J = ± 5%



④ 3950 - The B value of the resistor is 3950K.
