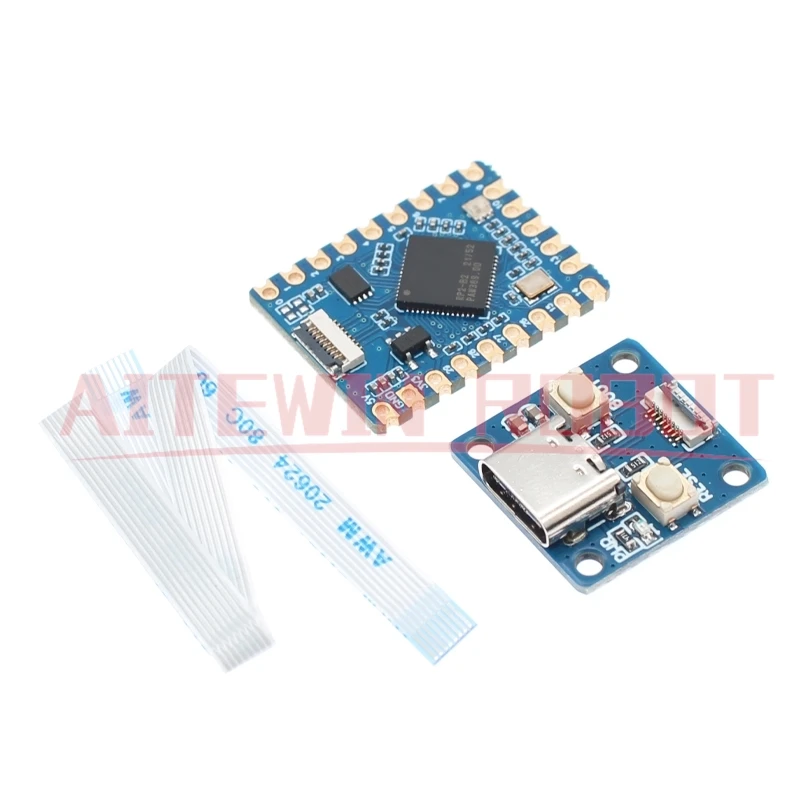

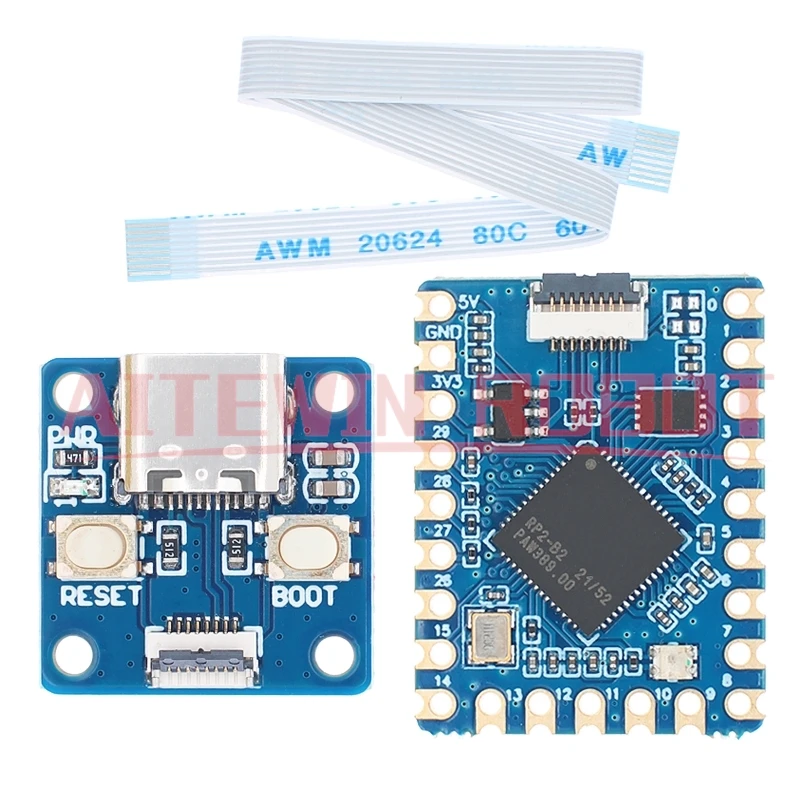

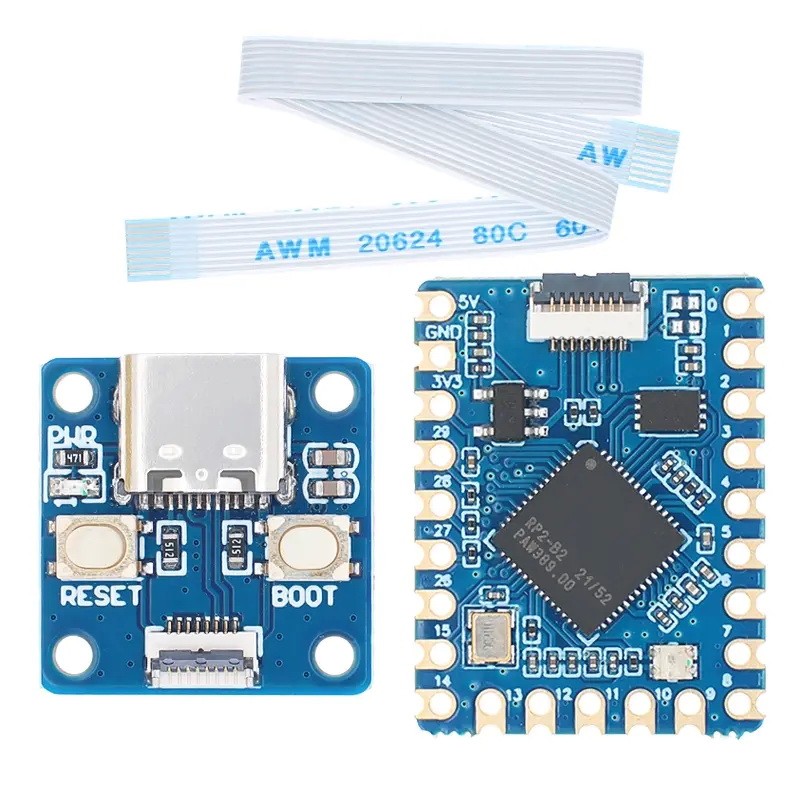

RP2040-Tiny Development Board Module RP2040 ZERO Raspberry Pi PICO USB Type C

Reference: (SKU): G25-RP2040-TINY-KIT

More details

In stock

More info

Features:
RP2040 microcontroller chip designed by Raspberry Pi. Dual-core Arm Cortex-M0+ processor, flexible clock running up to 133MHz;
264KB of-SRAM, and 2MB of onboards Flash memory. Onboards FPC 8PIN connector, adapting Type-C port via adapter board;
Castellated modules allows soldering direct to carrier-boards. Low-power sleep and dormant modes;
Drag-and-drop programming using mass storage over USB. 20xmulti-function GPIO pin. 2xSPI, 2xI2C, 2xUART, 4x12-bit-ADC, 16xcontrollable PWM channels;
Accurate clock and timer on-chip. Temperature sensor. Accelerated floating-point libraries on-chip. 8x Programmable I/O-PIO state machines for custom-peripheral support;

Specifications:
Material:PCB-
Option Type:RP2040-Tiny;RP2040-Tiny-kit;(Optional)

Package Includes:
1xRP2040 Tiny Raspberry Pi Microcontroller Development Board

Note:
Please allow 1-2cm errors due to manual measurement,please make sure that you do not mind before you order.
Due to the difference between different monitors, the picture may not reflect the actual color of the item.
