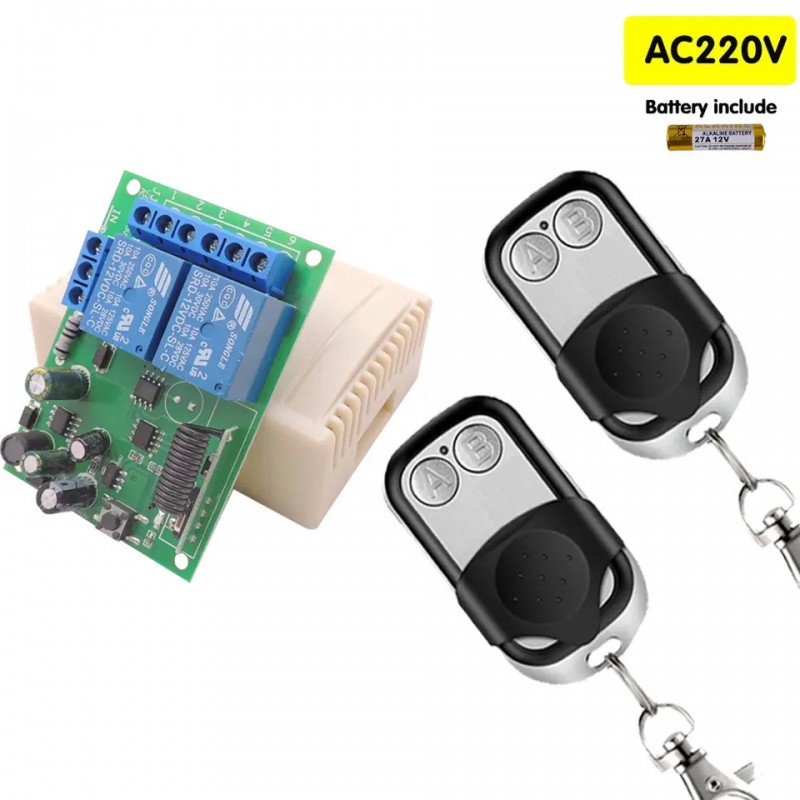

433 Mhz RF wireless Remote Control switch with relay AC110V 220V 2CH Receiver module+ RF Transmitter for Light,Door,Garage Motor

Relay Receiver Board Parameter

Working voltage  :  AC85V-250V
Input/Outputvlotage  :  1~250V
Quiescent Current  :  <5MA
Max current  :  10A
Max load:   300W
RF frequency  :  433MHz
Working temperature  :  -30~+80 degrees
Receiving Sensitivity  :  >97dbm
Amount of storage remote controls  :  20 pieces
Support encoding  :  1527 Learning code /2262 fixed code
RF Operating mode  :  ASK superheterodyne wireless reception
Receiving range  :  Open space is more than 50 meters
Remote operating mode   : Momentary Mode / Toggle Mode / Latched Mode

Remote control Parameter
RF frequency : 433MHz

Support encoding : 1527 Leaning code
Transmitting range : up to 50m (theoretical distance)

Battery  : 27A12V  ( included )

Product Application Area
Products can be used in homes, farms, factories, offices, laboratories, supermarkets and so on.

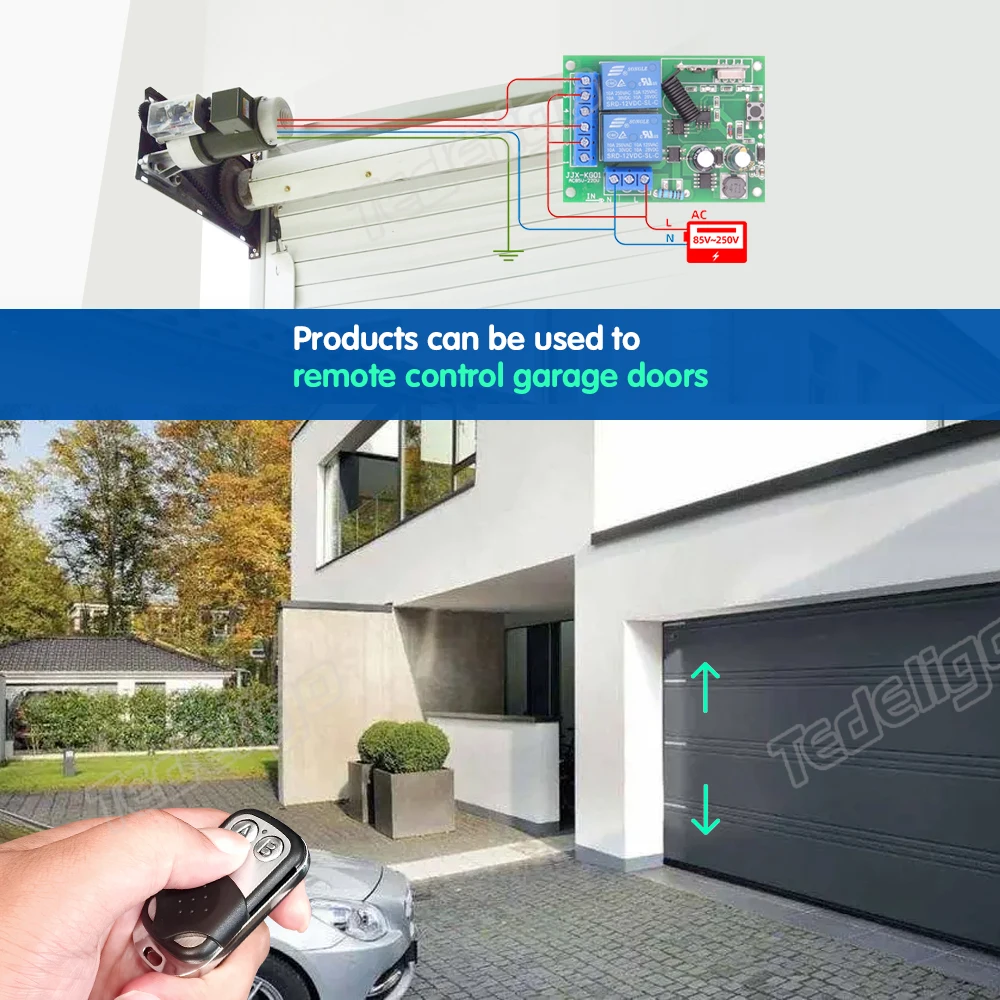

Remote control garage door   Electric door house door shutter door  expansion door gate door road gate
Remote control Electric curtain Water pump Fan Lamp LED light  bulb  ventilation device  Signal transmission
Remote control motor positive and negative rotation   motor switch DIY

Working Modes
You can set up in 3 modes: Momentary mode,Toggle mode and Latched mode.
Momentary mode:
Press and hold A button,thisrelay will work;Release A button,this relay will stop.
Toggle mode:
Press A button,the relay will work;press A button again,thisrelay will stop.
Latched mode:
Press A button,the relay will work;press B button again,this relay will stop,second relay will work.
How to Set up
Momentary mode:
Press learning button once,press A button once,succeed.
Toggle mode:
Press learning button twice,press A button once,succeed.
Latched mode:
Press learning button 3times, press A button once,press C button once,press B button once,succeed.
Reset:
Press learning button 8times,the data will be cleaned.All remotes cannot control this receiver.
If u want to change modes,u need to clean the data first.
