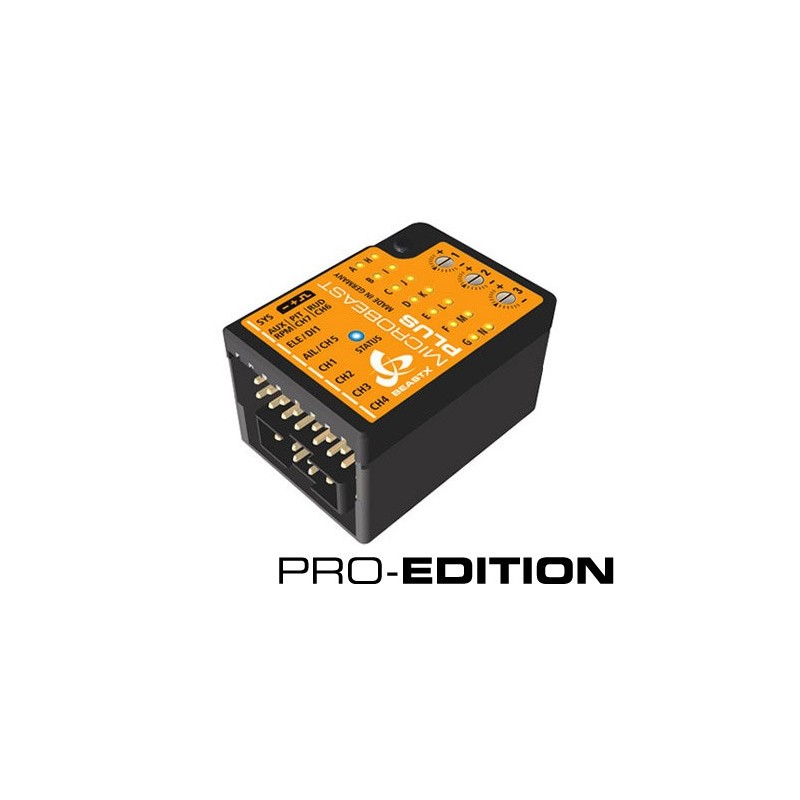

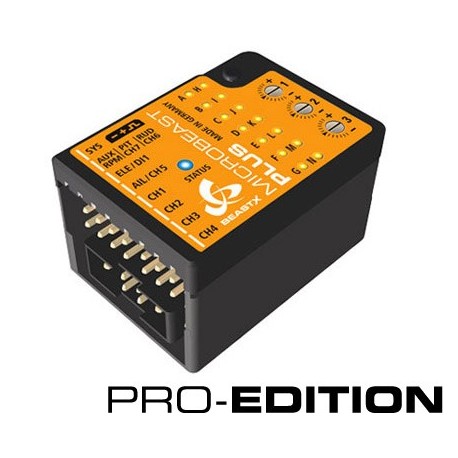

MICROBEAST PLUS HD is designed as „Heavy Duty“ version of MICROBEAST PLUS with an additional switchable high power input. It is particularly suitable for helicopters with standard sized servos and it reflects today‘s requirements for power supply like never before. The power supply port is realized by a well proven, high-quality connector. By using the included switch, the system can be activated electronically and remains operational even if the switch is disconnected by accident. Due to this fact the high power connection may be used without the switch at all. MICROBEAST PLUS HD has a housing in aluminum composite construction.

Additional features of the PRO EDITION • Governor (speed controller function) • AttitudeControl * *) AttitudeControl includes the following functions : - rescue mode (with / without pitch addition) - 3D mode (with / without pitch addition) - Hovering trainer

Box contents :

• MICROBEAST PLUS HD
• Switch harness
• Power cable
• Receiver connection cables
• 3M adhesive pads
• Adjustment tool
• Printed instruction manual


Features:

Servo center pulses:
• Swashplate: 1520µs
• Rudder: 1520µs, 960µs, 760µs

Servo pulse rates:
• Swashplate: 50 - 200Hz
• Rudder: 50 - 560Hz

Swashplate mixing:
• mCCPM, eCCPM: 90, 120, 135, 140
• Swash phasing (by using StudioX)

Input signals:
• Single channels
• PPM serial pulse
• SRXL (JR XBus, SUMD, M-Link...)
• Futaba S.Bus/S.Bus2
• Spektrum Remote Receiver* (DSM2/DSMX)
* with Spektrum Remote Receiver adapter


Accessories:
• USB2SYS Interface
• Spektrum Remote Receiver adapter
