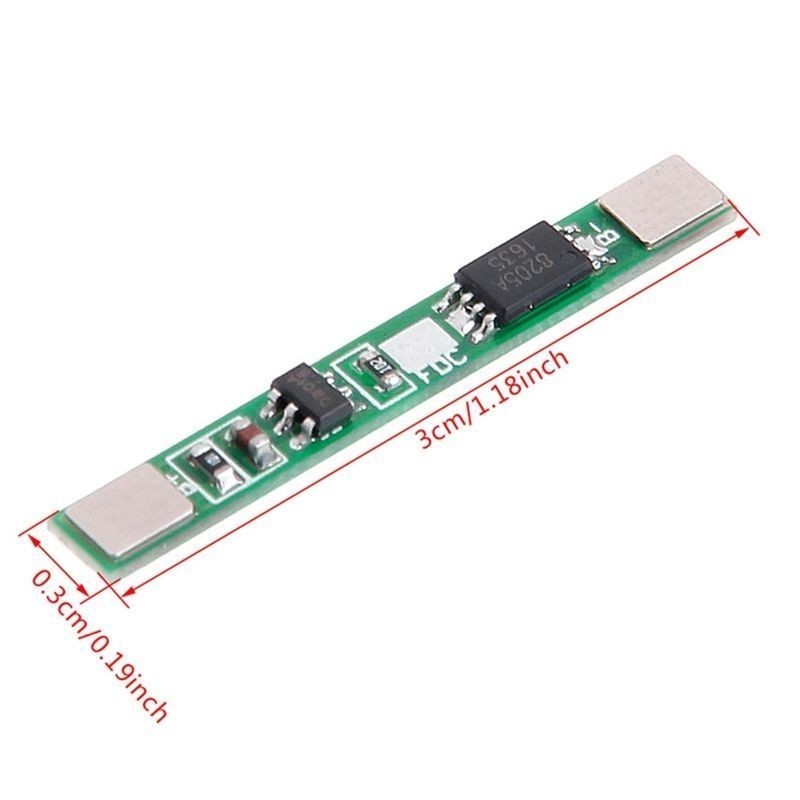

1S PCB BMS Protection Board For 18650 Li-ion Lithium Battery View larger

1S 3.7V 3A li-ion BMS Protection Board For 18650 Li-ion Lithium Battery

(SKU): 6A10499

1S PCB BMS Protection Board For 18650 Li-ion Lithium Battery

More details

In stock

1,50 € tax incl.

More info

  • 1S 3.7V 2.5A
  • Product Introduction:
    1.Charing Voltage:DC 4.2--5V CC/CV
    2.Single Battery Consumption Current:<=6uA continuous discharging current 2.7A
    3.Overcharging Detection Voltage:4.2 V+/-0.025V
    4.Overcharging Detection Delay Time:150-500 ms
    5.Overcharging Restore Voltage:4.0V+/-0.025V
    6.Overdischarging Detection Voltage:2.75V+/-0.1V
    7.Overdischarging Detection Delay Time:50-150ms
    8.Overdischarging Restore Voltage:2.5V+/-0.10V
    9.Overcurrent Detection Voltage:150+/-30mv
    10.Overcurrent Detection Current:4.5+/-0.5A
    11.Overcurrent Detection Delay Time:5ms-15ms
    12.Overcurrent Restore Type:automatic restore
    13.Short Circuit Detection State:external short circuit
    14.Short Circuit Detection Delay Time:<=50us
    15.Short Circuit Restore State:automatic restore
    16.Internal Resistance:MOSPET <= 40m ohm
    17.Operating Temperature Range:-40 - +50 Celsius
    18.Storage Temperature Range:-40 - +90 Celsius
    19.Size:3 x 0.3cm/1.18 x 0.19inch

    Features:
    1.Connecting Charger Teminal adopts withstand high voltage instrument
    2.Internal 3 phase overcurrent detectiton circuit (overcurrent 1,overcurrent 2,load short circuit)
    3.MOS tube can control battery charging and discharging
    4.Wide Operating Temperature Range
    5.Low Consumption Current

    Soldering Point Introduction:
    1.B+:connect with power positive
    2.B-:connect with power negative
    3.P+:connect with charging/discharging port positive(charging port/discharging port common used)
    4.P-:connect with charging/discharging port negative(charging port/discharging port common used)
