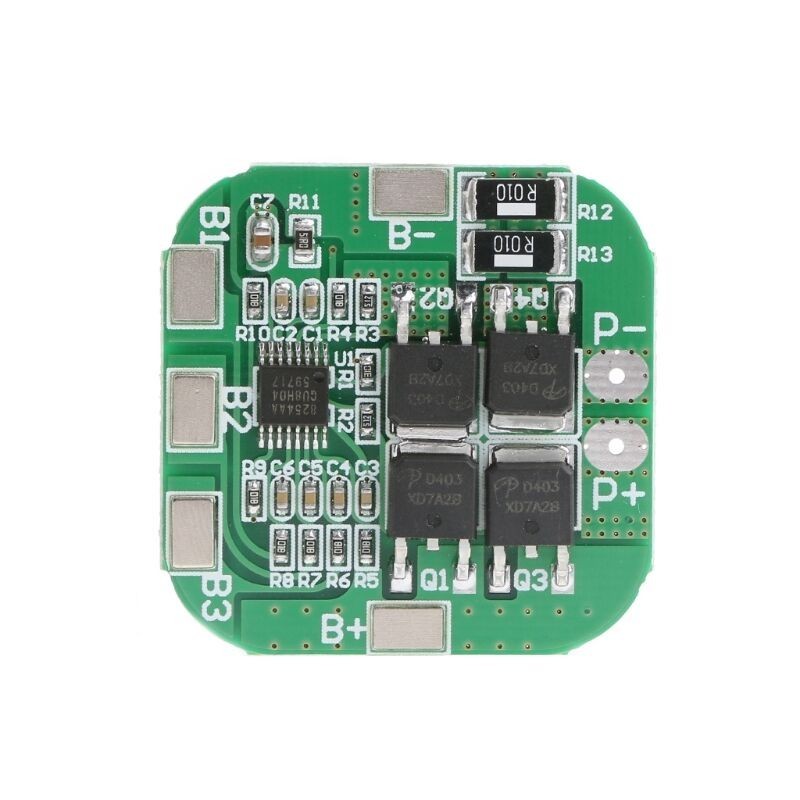

4S 14.8V/16.8V 20A PCB BMS Protection Board For 18650 Li-ion Lithium Battery Cell View larger

4S 14.8V / 16.8V 20A peak li-ion BMS PCM battery protection board bms

(SKU): HX-4S-A20/HXYP-4S-BM20

4S 14.8V/16.8V 20A PCB BMS Protection Board For 18650 Li-ion Lithium Battery Cell

More details

In stock

5,00 € tax incl.

More info

  • 4S 14.8V 16.8V 20A
  • Features:
    1) high-accuracy voltage detection circuit;
    2) terminal of the charger using high voltage device;
    3) Built-in three-stage over-current detection circuit (over-current 1, over-current 2, or load short circuit);
    4) MOS transistor can control the battery charge and discharge;
    5) low standby current consumption

    4 series 18650 battery 16.8V 16V 14.8V
    14.8V (Li-ion 18650 or li-ion battery rated voltage)
    16.8V (Li-ion battery full charge voltage)
    14.4V ( Lipo battery pack rated voltage)

    Applications:
    4S Li-ion18650,LiCoO2,LiMn2O4,Li(NiCoMn)O2 rechargeable batteries
    4S Lipo rechargeable batteries

    BMS solder instruction:
    B+ connected battery positive;
    B1 the connect point between battery 1 and battery 2
    B2 connect the point between battery2 and battery 3
    B3 Connect the point between battery 3 and battery 4
    B- connect to battery negative end
    P- + connection charge / discharge positive;
    P- connection charge / discharge negative

    Note:
    1) this board is not suit high power electronic tools, if use for screwdrier and drill, please don't buy
    2)Above 3A device,means the battry discharge rate is more than 3C.
    1C rated battery, 2000mah equals 2ah*1=2A max working current.
    3C rated battery means 2ahx3=6A Max working current.

    4S LI-ION BMS Specifications:
    Over Charge Voltage:4.25-4.35v±0.05v
    Over Discharge Voltage: 2.3-3.0v±0.05v
    Max working current:10A
    Max Peak current:20A
    Working Temperature:-40~+50
    Storage Temperature:-40~+80
    Small current: 6uA
    Life cycle:50000hours
    Resistance:45mΩ
    Short cut Protection:Protectable ,change for repair
    Size: 3.6x3.5cm/1.42x1.38inch
    Quantity: 1 Pc
    Note:
    The lithium battery protection board is not included the welding tabs.
  • 1A40525.jpg
  • Package Contents:
    1 x Protection PCB Board
