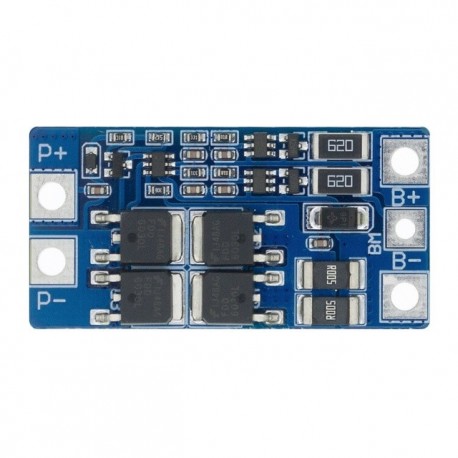

BMS 2S 3.7V 10A Lithium 18650 Charger PCB BMS 10A Cell Protection Board

Reference: (SKU): HX-2S-JH20-3.7V

2S Li-ion Lithium Battery 18650 Charger PCB BMS 10A Cell Protection Board

In stock

2S10A

734

Properties of the lithium battery protection board:

Model: HX - 2S - JH20 overcharging range: 4.25-4.35 v plus or minus 0.05 v

Size: 46.7 * 23 * 3.15mm over voltage range: 2.5-3.0 v plus or minus 0.05 v

Maximum working current: 10 a working temperature: - 40 - + 50 °

Maximum instantaneous current: 20 a storage conditions: - 40 - + 80 °

Static current: less than 10uA effective life: more than 50,000 hours

Resistance: less than 300 m Ω short circuit protection: to protect and restore must charge

Charging voltage: 8.4 v-9v

The protection board size and device description;

The protective plate size is 46.7 * 23 * 3.15mm

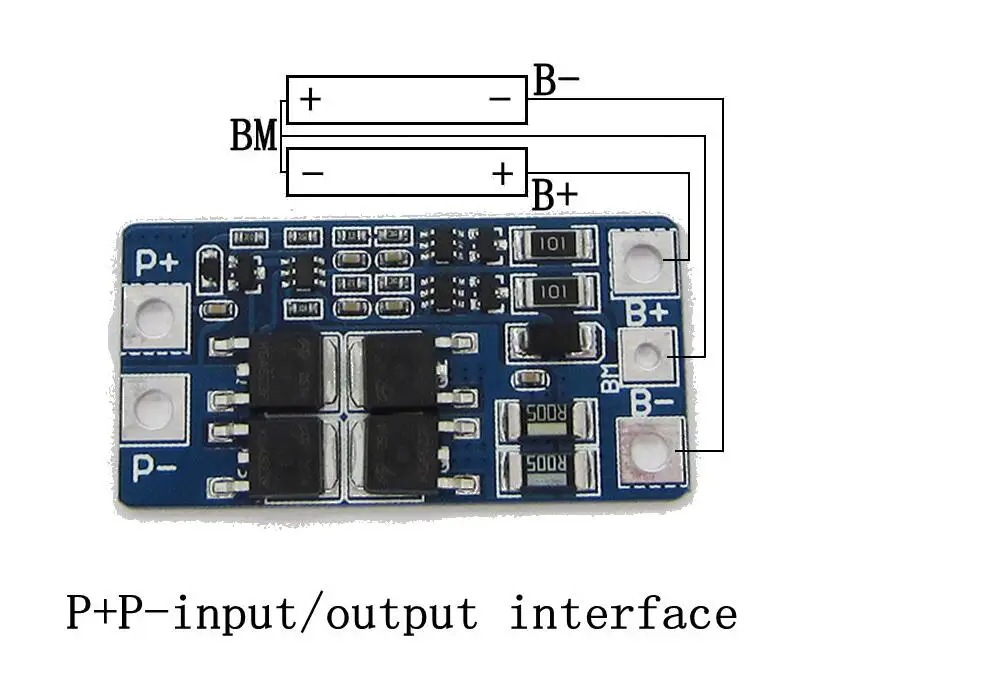

Welding point description:

· B + battery anode;

· B - connect battery negative terminal;

· MMB connect battery 1 to battery 2;

· P + charging/discharge correct poles (charging end/discharge end sharing);

· P - charging/discharge terminal negative terminal (charging end/discharge end sharing).
