Discharge

1. Over-discharge protection voltage: 2.7V±0.05V
2. Over-discharge recovery voltage: 3.0V±0.05V
3. Over-discharge delay: 0.5-1.5S
4. Continuous discharge current: 40A/50A/60A
5. Overcurrent delay: 0.5-1.5S
6. Instantaneous protection current:
40A version = 170A (maximum)
50A version = 200A (maximum)
60A version = 240A (maximum)
7. Over-current recovery conditions: charge recovery or disconnect the load
8. Short-circuit recovery conditions: charge recovery or disconnect the load

Charge

1. Overcharge protection voltage: 4.25V±0.025V
2. Overcharge recovery voltage: 4.15V±0.025V
3. Overcharge delay: 0.5-1.5S
4. Continuous charging current: 40A/50A/60A
5. Charge equalization voltage: 4.2V±0.025V
6. Charge equalization current: 45MA (maximum)
7. Charger voltage: 56V (recommended)

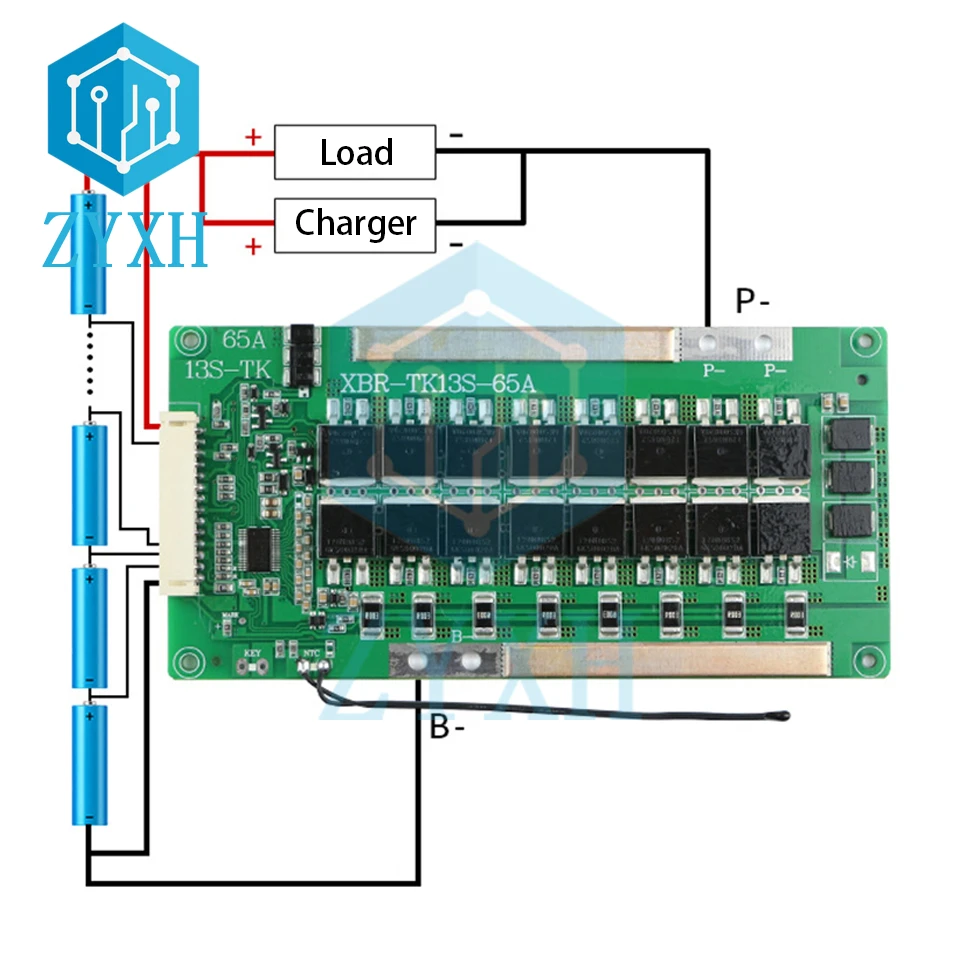

Activation Method

(1) B- and P- wires can be short-circuited once
(2) Or recharge to activate
