Specification:
Brand Name: Hobbywing

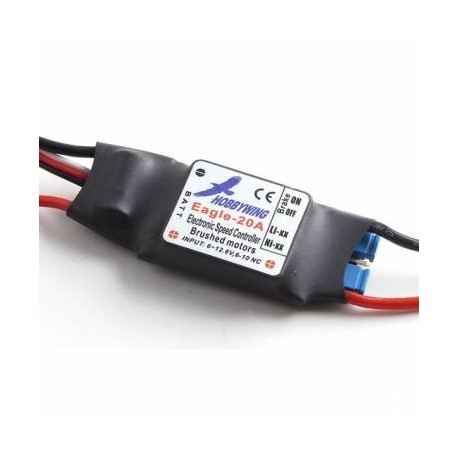

Item Name: Eagle 20A Brushed ESC
Output: Continuous 20A, Burst 25A up to 10 seconds
Input Voltage: 2-3 cells lithium battery or 4-10 cells NiCd/NiMh battery
BEC: 1A / 5V (Linear mode)
PWM Frequency:  2 kHz
Size: 45 x 21 x 8mm
Weight: 17g

Features:
Safety Arming Feature:  Regardless the throttle stick position, the motor will not spin after battery connected.
Brake Settings: The brake function can be enabled or disabled by a jumper connector.
Battery Type: The battery type can be chosen by a jumper connector.
Low voltage cut-off protection to prolong the battery life.
Over-heat protection to prolong the ESC life.
Throttle signal loss protection for safe flight.

Advantages:
Advanced microprocessor.
Compatible with lithium battery and nickel battery.
User programmable by using the jumper connectors.

Package Included:
1 x Hobbywing Eagle 20A Brushed ESC
