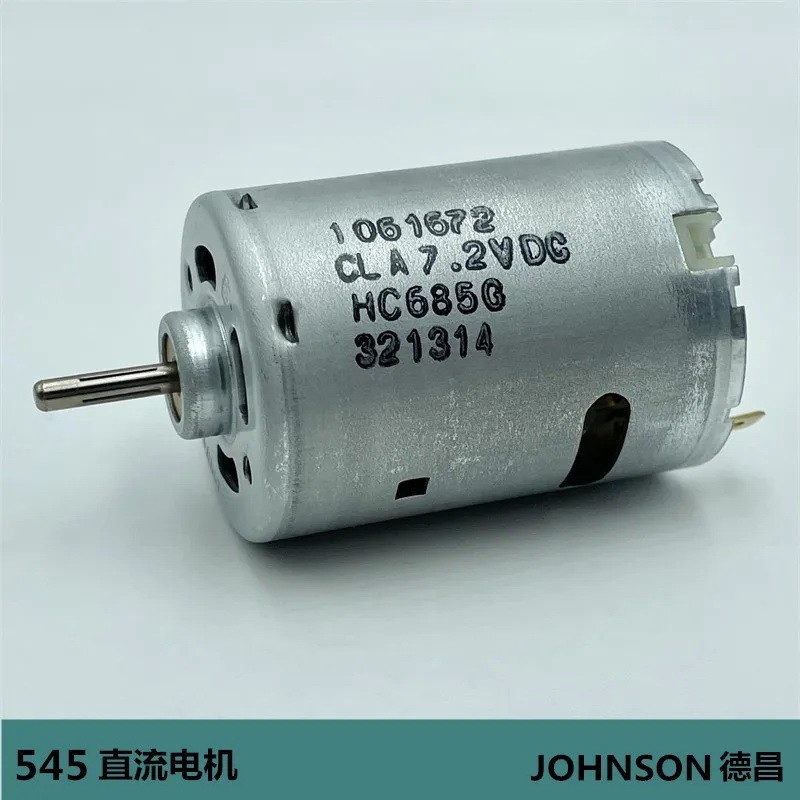

JOHNSON 36mm HC685G RS-545 Electric Motor DC 6V 7.2V 7.4V 23500RPM High Speed

Reference: (SKU): HC685G

In stock

Specification:

1.Brand: JOHNSON MOTOR

2.Model: RS-545 Motor

3.Weight: 180g

4.Voltage range: DC 3.7V-7.4V

5.Test data:

Voltage:3.7V No-load speed:11600RPM Current:1.85A

Voltage:5.0V No-load speed:15600RPM Current:2.16A

Voltage:6.0V No-load speed:19200RPM Current:2.40A

Voltage:7.2V No-load speed:22900RPM Current:2.60A

Voltage:7.4V No-load speed:23500RPM Current:2.65A

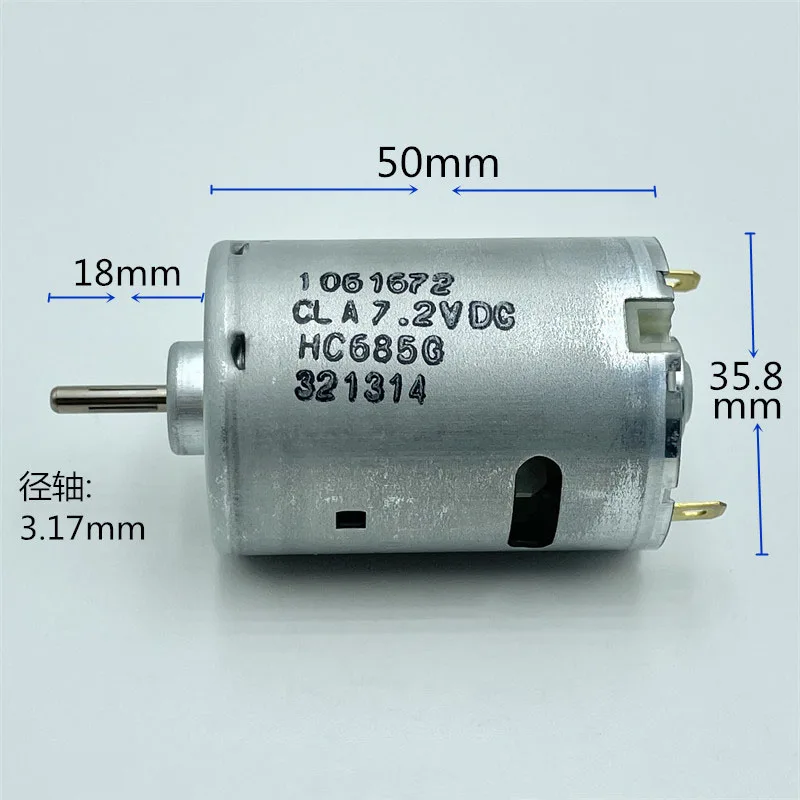

6.Motor diameter: 35.8mm

7.Motor height: 50mm

8.Output shaft diameter: 3.17mm

9.Output shaft length: 18mm
S65b81df841a445fba9fde5af8b48849fJ.jpg?w

Package Include:

Motor x 1pcs
