Drone Power Pack

View larger

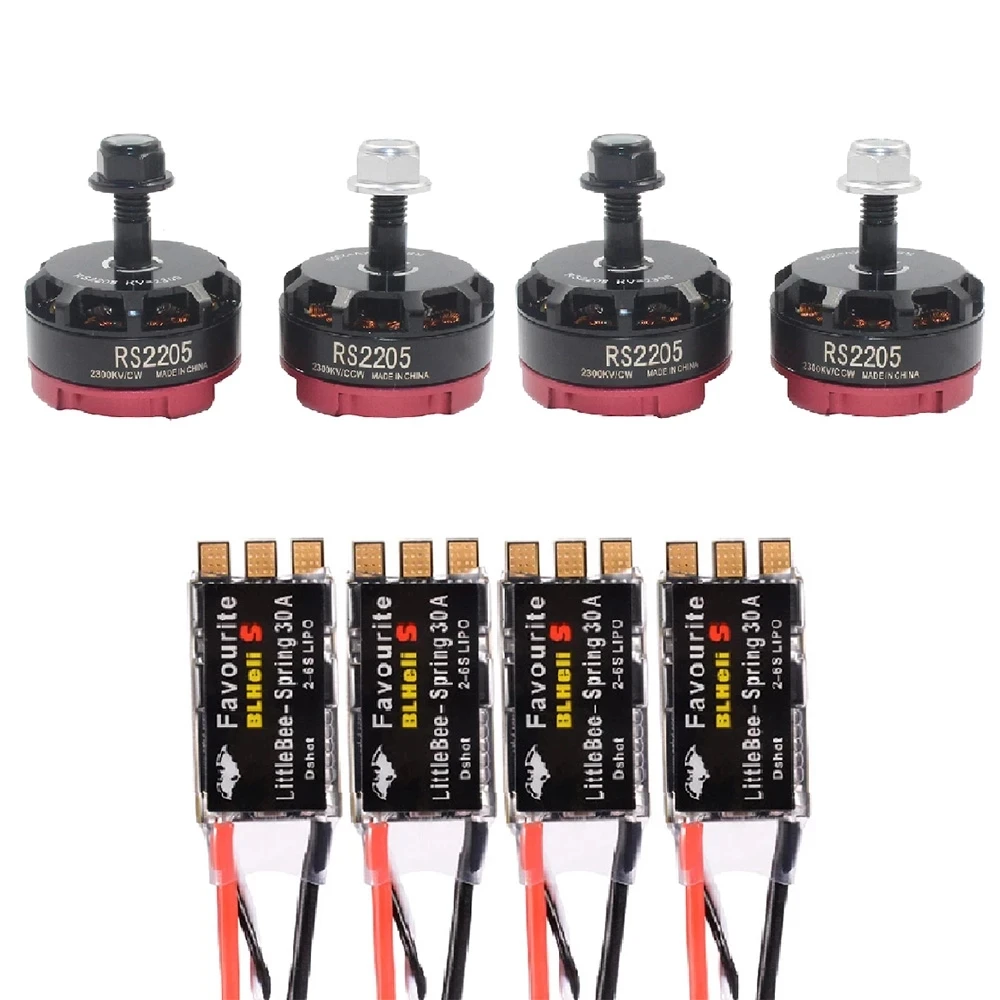

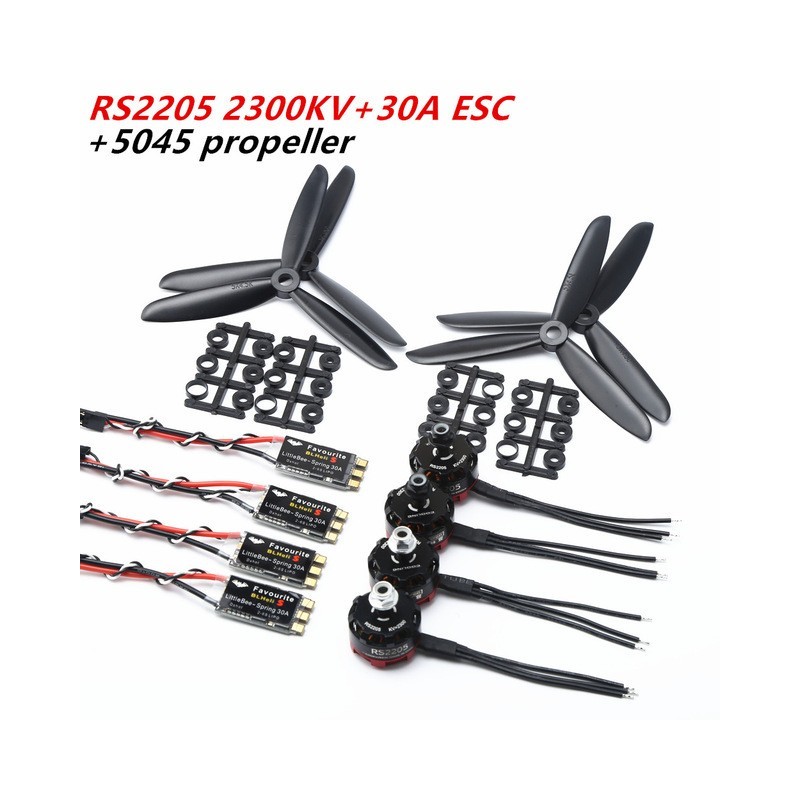

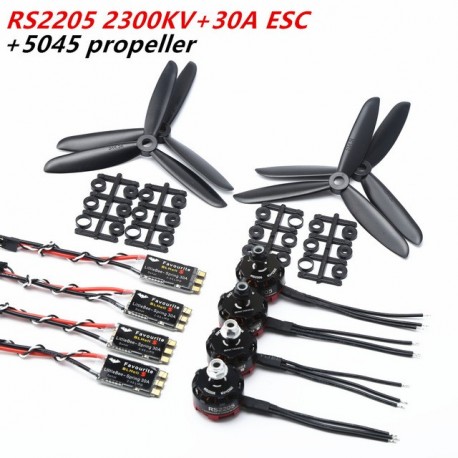

4pcs RS2205 2300kv Brushless Motor 3-4S + 4pcs BLHelis-s 30A 2-4S ESC For freestyle 250mm

Reference: (SKU): 214654

In stock

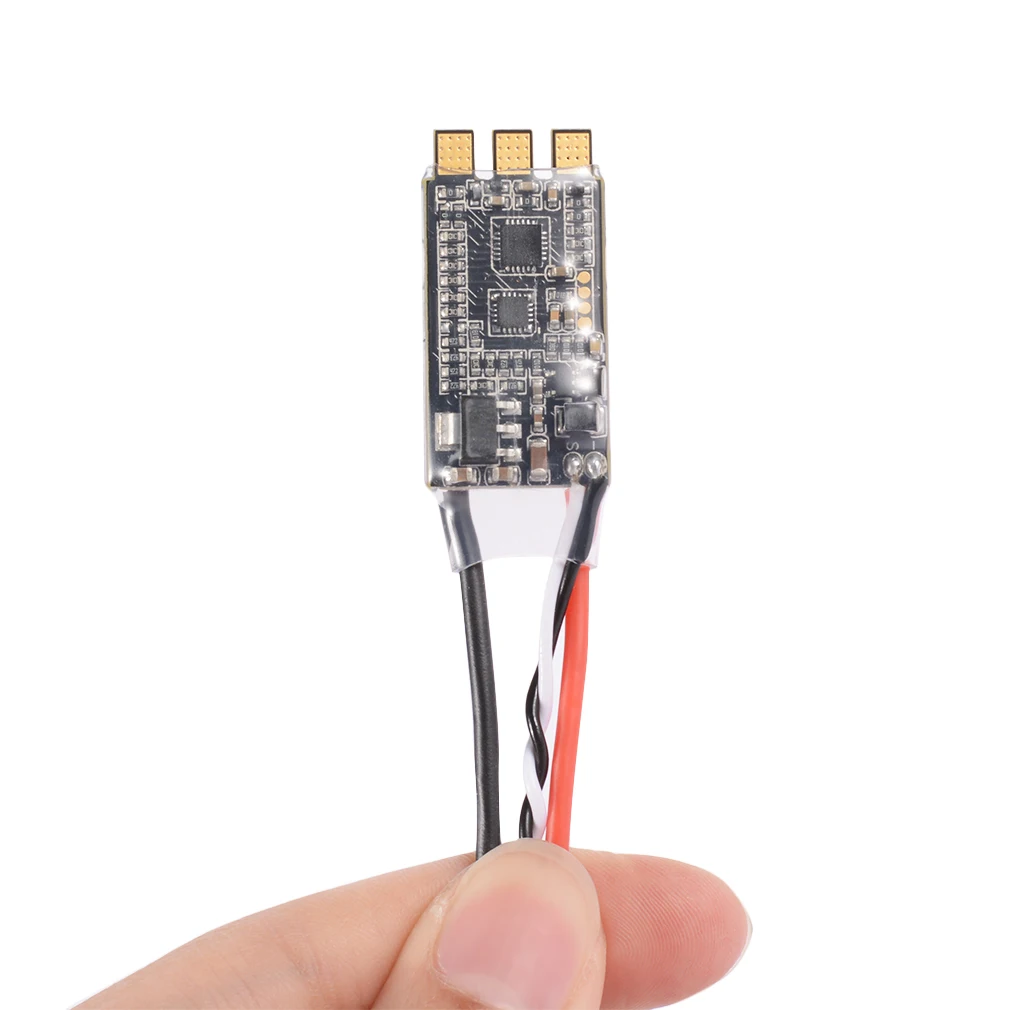

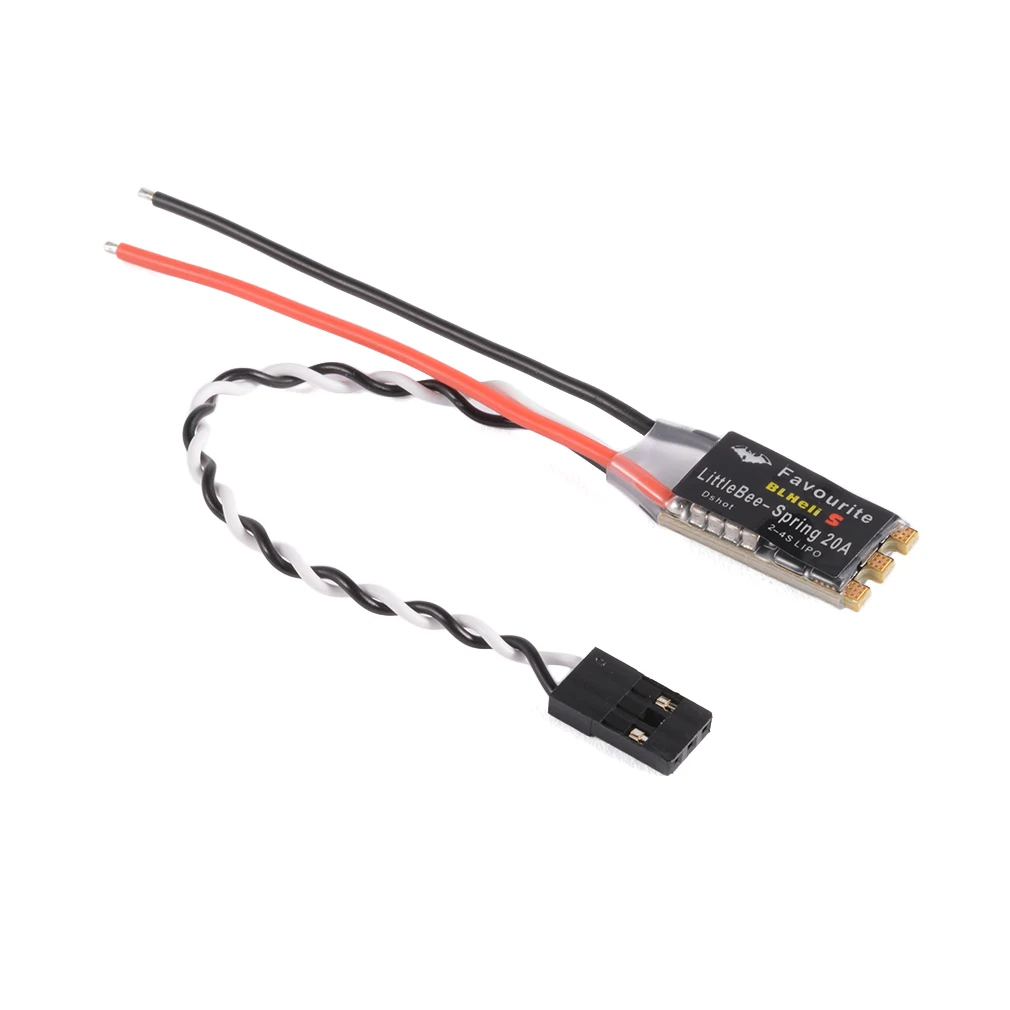

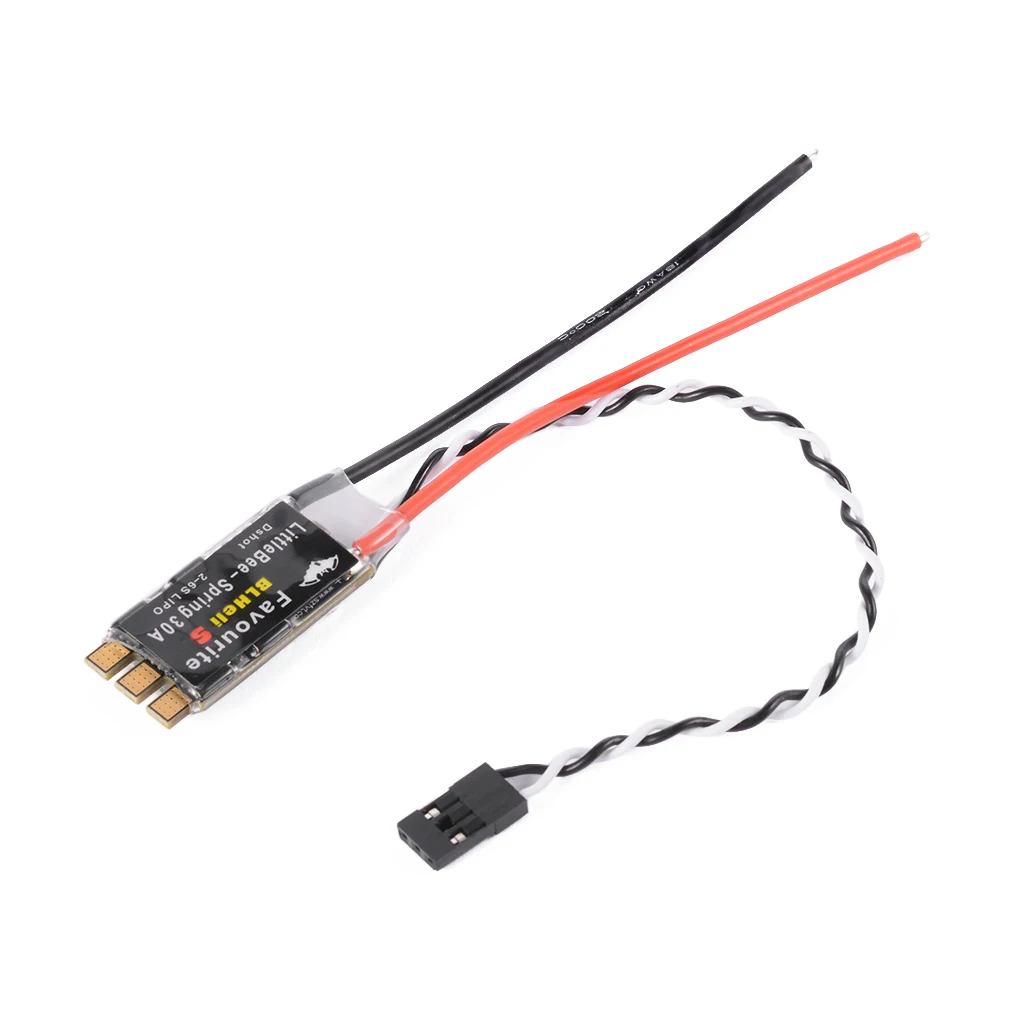

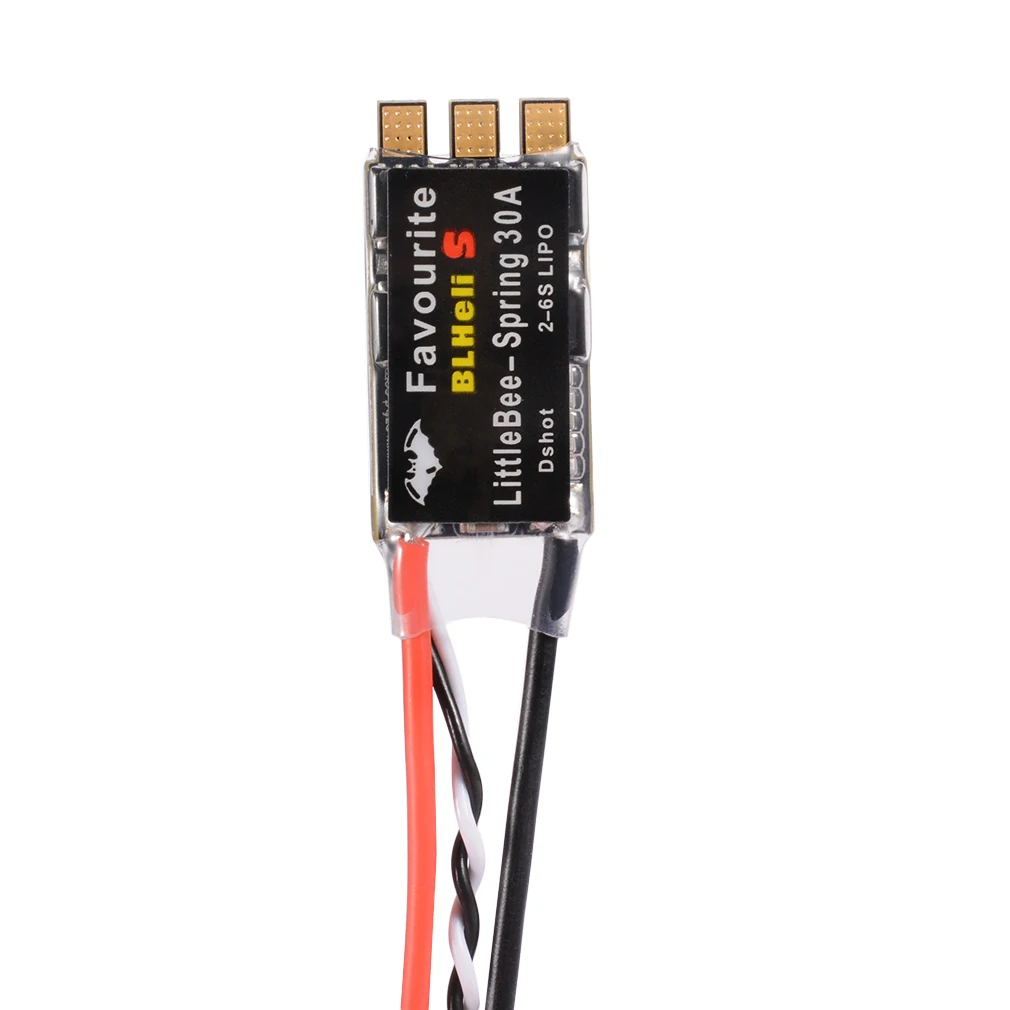

FVT LITTLEBEE Little bee BLHeli-s 30A ESC:

1: input voltage: 2-6 S Lipo

2: NO BEC

3: continue current: 30A, burst current: 35A up to 10 S.

4: size: 35 * 17mm.

5: weight: 9g (include power and signal wire)

6: Support Muted mode, Oneshot125, Oneshot42 and Multshot and DSHOT

7: Main IC: SILABS EFM8BB21F16, MCU run 48MHz

8: MOS: Both low and high side fets are Nfets

9: switching speed is very fast, it has dedicated driver chip

10: BLHeli S Bootloader & Firmware Package included: 1pcs or 2pcs / 4pcs /6pcs littlebe spring ESC (as your choice)

RS2205 2300kv Motor:

Model: RS2205-2300

Framework: 12N14P

No. of Cells: 3 - 4S

Length:31.7mm

Shaft: M5

KV: 2300

Max Thrust: 1024g

Diameter: 27.9mm

Propeller Suggested: HQ 5045 BN

Weight: 30g

Features:

1. Race Spec Performances

2. High Strength N52 Neodyum Magnets

3. Active Cooling Fins Greatly Reduce Motor Temeratures

4. Low CG, Light Weight Design

5. Japanese Bearing For Performances

6. Enchance Anti Off U Ring For Safety & Stablility

7. Dual Lock CW / CCW Locknuts
