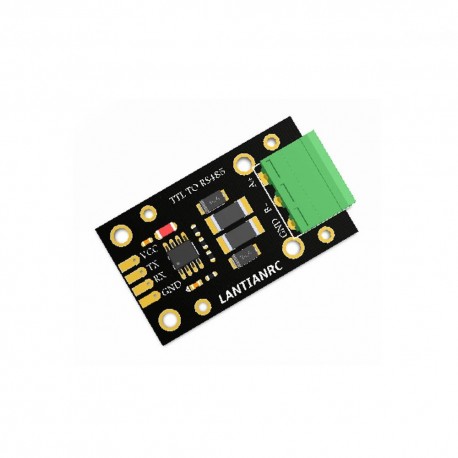

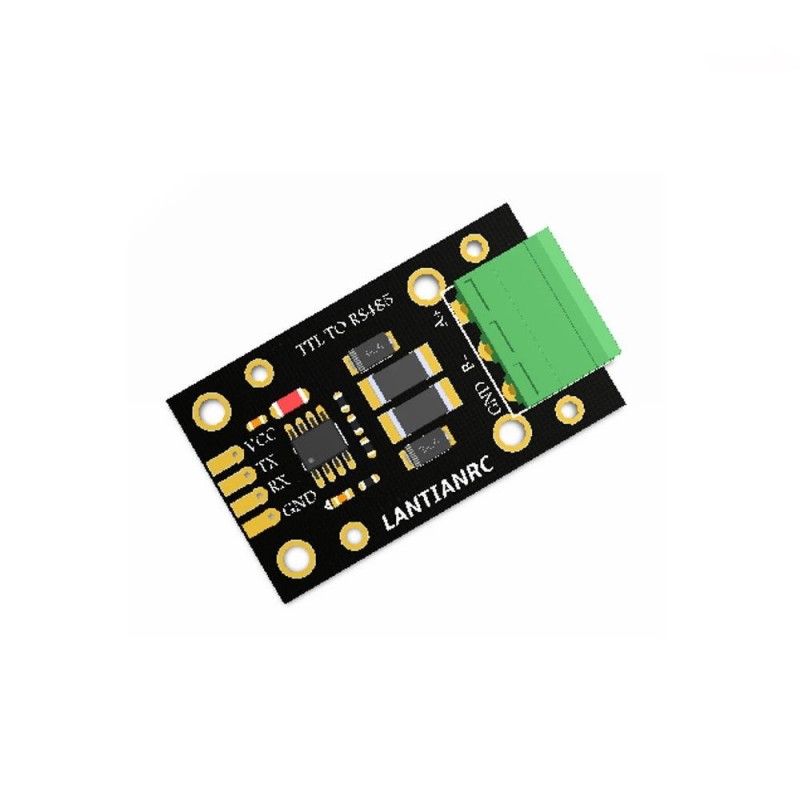

Lantianrc TTL to RS485 485 to Serial UART Level Converter Module Automatic Flow Control for RC Drone

Description:

The Module can achieve RS485 and TTL level conversion, the module with automatic flow control function, can achieve RS485 transceiver automatic conversion, the user can use the MT485S module like the use of the 232 serial port,  improve System stability .
The module design takes into account signal integrity and EMC characteristics, and incorporates multiple protection measures so that it can be used in a variety of industrial applications. The module is simple in design, attractive in appearance.

Specification:
Brand name: Lantianrc
Item name: TTL to RS485 485 to Serial UART Level Converter Module
Operating voltage: 5.0V
Operating current: Static 3mA
Working temperature: Recommended -30 °C -70 °C (limit range -40 °C -80 °C)
Load capacity: Maximum 128 devices
Flow control: automatic flow control
Communication speed: no higher than 500K, automatic adaptation
Size: 42*25mm

Package Included:
1X TTL to RS485 485 to Serial UART Level Converter Module
