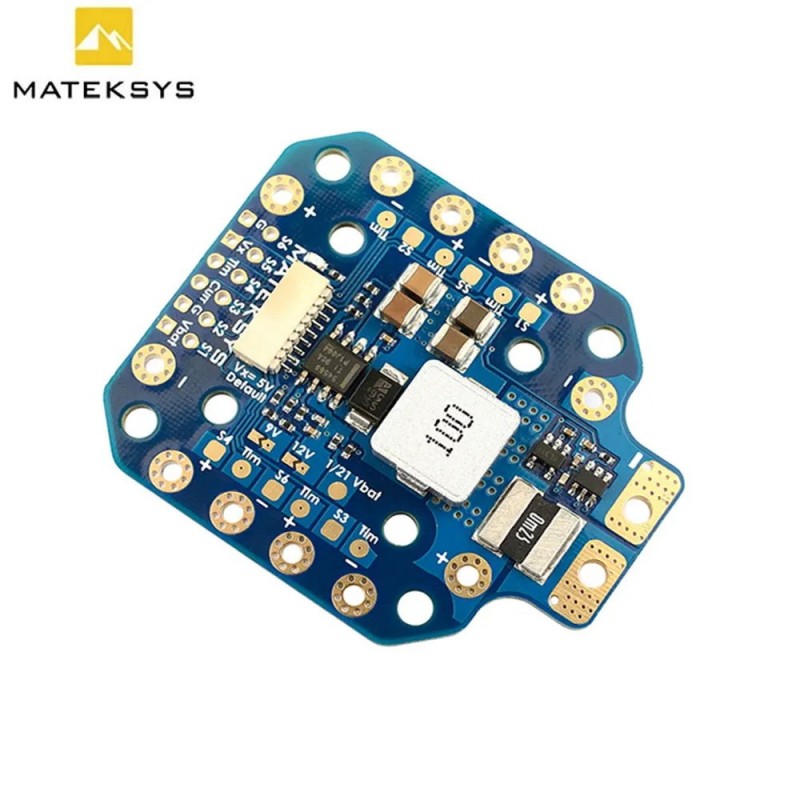

PDB

• Input voltage range: 6~60V (2~12S LiPo)

• PDB/current sense resistor: 140A cont, 264A burst.

• ESC power pads: 60A cont. 100A burst

• 6x ESC power /signal/ telemetry pads

• Current Senor: 264A,  3.3V ADC

• Current Scale 125(INAV/BF),  BATT_AMP_PERVLT  80 (ArduPilot)

JST-SH-8P Connector and Pads

• Vbat: Battery voltage

• G: ground

• Curr: current signal

• Tlm: Duplicates Tlm pads for ESC telemetry

• S1/S2/S3/S4/S5/S6: ESC signal

• Vx: Regulator output

BEC Vx output (5V default)

• Vx= 5V by default,   Continuous 5 Amps

• Bridge 9V jumper,  Vx= 9V,  Continuous 4 Amps,  Max.5A

• Bridge 12V jumper,  Vx= 12V, Continuous 4 Amps,  Max.5A

• Output Short-circuit tolerant (1 seconds)

• Overcurrent protection & self-recovery

Voltage divider

• 1K:20K resistors

• Output 1/21 Vbat voltage

Physical

• Mounting: 30.5 x 30.5mm, 20 x 20mm, Φ3mm

• Dimensions: 49 x 40 x 6 mm

• Weight: 12g

Including

• 1x PDB-HEX

• 1x Rubycon ZLJ 63V 390uF

• 1x JST-SH1.0_8pin cable, 5cm

• 2x JST-SH1.0_8pin connectors
