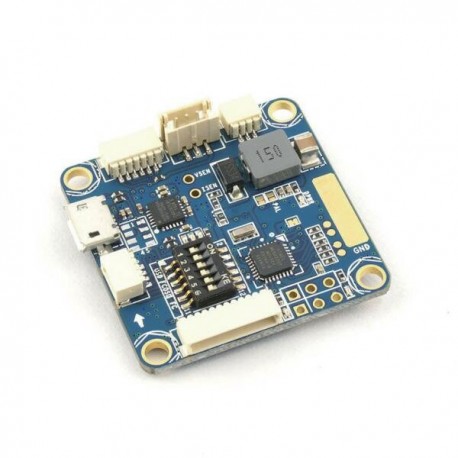

OZE32 AIO 6DOF Flight Controller With Integrated OSD Current Sensor











The OZE32 FC base on NAZE32, but it has integrated MiniOSD, PDB, BEC and Current and voltage sensors,
soulation for FPV, incl. Almost everything FPV needed (excl. RF) on 35x35 mm PCB.

Description:
Item Name: OZE32 AIO Flight Controller
Firware: Cleanflight
Size: 35x35mm
Mount holes: 30x30mm
Onboard USB
Input Voltage: 2-6s
Included: UBEC 5V 3A
                 Complete OSD hardware, Compatible with MinimOSD/MWOSD/CC3D OSD
                 A Small PDB
                 Current and voltage sensors
Features:
The defualt firmware of OSD for Cleanflight
The board can take 80amps current sensor (Burst 110Amps)
For switch the usb connection, USB  to OZE32 or USB to OSD or OZE32to OSD
OZE32 support PPM, DSM2 Spektrum Serial(spektrum satellit receiver) and SBUS(we will support a SBUS inverter come with OZE32)

Noting:
ACRO version hasn't MS5611 on board.  Please see the manual before using it. Please click here.

Package Included:
1 x OZE32 AIO Flight Controller
3 x Cable
