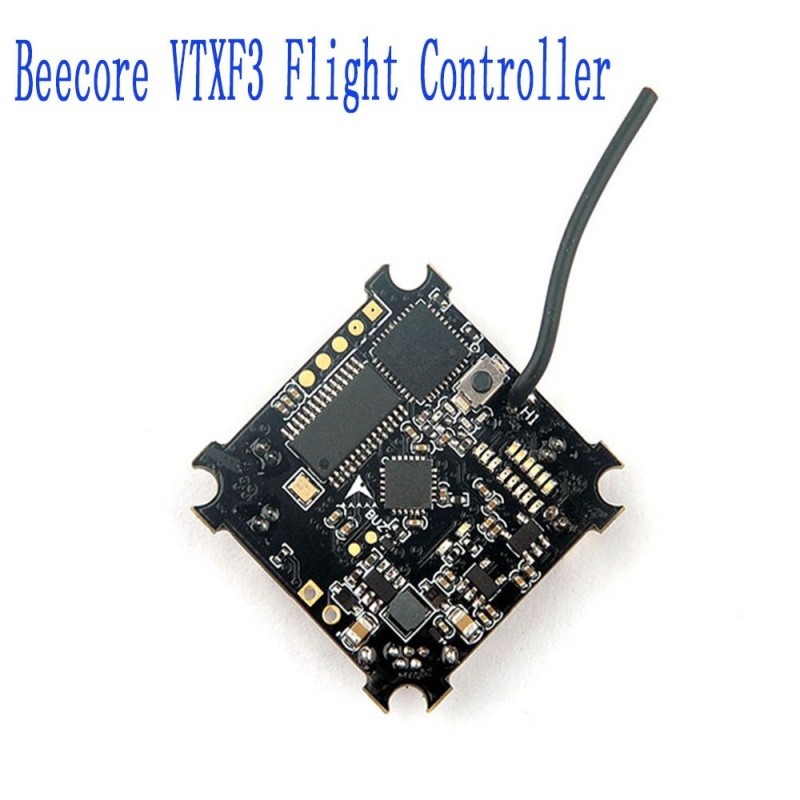

Beecore VTXF3 Brushed Flight Controller Integrated OSD 25mw Photography OSD AV Transfer Quadcopter Tiny 6 7 6x 7x Flight Control

The tiny whoop style brushed flight controller built-in Betaflight OSD and 25 mw VTX with SmartAudio is coming now. Best for Kingkong Tiny6 / 6x / 7 / 7x. Specifications: MCU: STM32F303CCT6 (72 mhz, 256 k FLASH) Sensor: MPU-6000 (SPI connection) Power supply: 1 s battery input (DC 3.5-4.35 v) Built-in Betaflight OSD (SPI Control) Built-in 5.8g 25mw 40ch vtx Smart audio function ready Heading LED Ready Mount hole distance: 26mm * 26mm Board size: 29mm * 29mm Board weight: 4.0g Properties: With 4 large current NMOS transistors, operating current of up to 10A each Built-in OSD (with F3 MCU controls OSD via SPI bus in DMA mode) Smart Audio Ready, you can change the VTX channels through your radio sticks PPM / SBUS / IBUS / DSM2 / DSMX. , Etc protocol receiver compatible Best for Tinywhoop style brushed frame, perfect flight controller replacement for Kingkongrc / LDARC Tiny6 / 6x / 7 / 7x / 8 / 8x Package: 1 piece x flight control
