Name

Specification

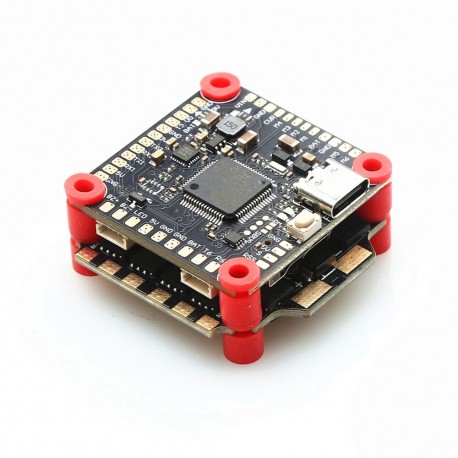

F405 V3S PLUS Flight Controller

Installation Hole: 30.5x30.5mm

Gyroscope: MPU6500

- STM32 F405 Microcontroller

- Dshot Support

- Drag and drop OSD configured through Betaflight

- Supports receivers such as ELRS/CRSF/SBUS/IBUS PPM/Spketorum DSMX, etc

- MicroSD Card Black Box

- Car video filter

BEC: 5V3A/9V3A

Firmware: OMNIBUSF4SD/BF/INAV (upgradable)

Size: 36x36mm

Weight: 13g

Suitable Models: 5 inches, 6 inches, 7 inches, 8 inches, 9 inches, 10 inches, 13 inches, 15 inches, traversing aircraft/drones, etc

V3 BLHELI-S-60A 4in1 HV 2-6S ESC

Aperture: 30.5 * 30.5mm

Firmware: BLHELI-S J_H_30_REV16_7

Input voltage: LIPO 2-6S

Continuous current: 60A

Maximum current: 70A (10 seconds)

Processor: EF8BB21

Drive signal support: DShot150-300-600/Multishot/Oneshot/PMW

Current sensor: supports

Size: 41 * 39 * 5mm

Weight: 15g
