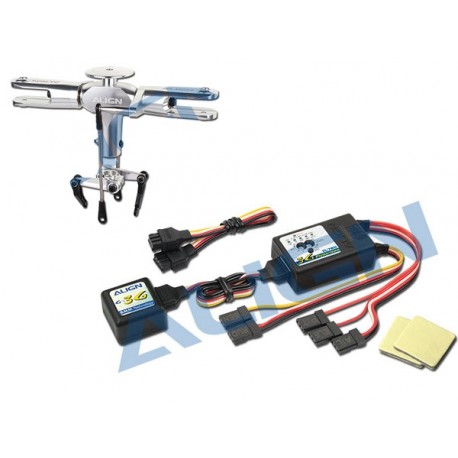

Align 600 FL-760 3G Programmable Flybarless System/Silver View larger

Align 600 FL-760 3G Programmable Flybarless System/Silver

(SKU): HN6110

Align 600 FL-760 3G Programmable Flybarless System/Silver

More details

In stock

325,00 € tax incl.

More info

Product Details

Product1:
Product2:
Package1:
Package2:
Instructions:Specification:
?3-axis gyroscopic flybarless system to simulate the stability of mechanical flybar system, yet at the same time achieving agile 3D performance.
?Utilizes Silicon Micro Machine (SMM) sensors for excellent stability.
?12 bit processors providing ultra high resolution, resulting in highly precise controls
?Software upgradable through PC interface adapter
(sold separately)
?Simplistic setup process without the need of external devices. Setup is done through 5 steps and 2 sensitivity adjustments. Rudder setup is identical to GP780 gyro, minimizing learning curve.
?Flybarless system dramatically improves 3D power output and efficiency, resulting in reduced fuel or electricity consumption.
?Highly sensitive gyroscopic sensors combined with advanced control detection routine providing higher hovering and aerobatic stability than other flybarless system.
?Suitable for all CCPM and mechanical mixing system.
?Comaptible with helicopter of all sizes from T-Rex 250 to T-Rex 700.
?Innovative Pitch Gau as an aid to facilitate pitch adjustments.
?High frame rate signal output for faster and higher precision servo response.
?Capable to operate between 4.5V to 8.4V, compatible with high voltage servos.
?Small footprint, light weight, minimalists and reliable design.		?Suitable Voltage Range:
?Current Comsumption:DC11.1-22.2V 3-6cell Li-Po
?Flip and Roll rate detection speed: :±300degrees/sec
?Rudder rate detection speed:±500degrees/sec
?Sensor resolution: 12bit
?Operating temperatur:-20?~65?
?Operating humidity:0%~95%
?RoHS certified
?Dimension:
Control box:42x26.5x14.5mm
Sensor:22.3x21.7x14mm
?Weight:
Control box:16g
Sensor:9g
Accessories:
?Main Rotor head Set x1
?Flybarless control unit x1
?Flybarless Sensor x1
?Head Stopper x1
?F servo horns x3
?Main Rotor head Set x1
?Linkage ball A x2
?Sensor mounting foam x2
?Signal extension wire 100mm x1
?Signal extension wire 220mm x1
?Pitch Gauge x1
?Mixing base assembly x1
?Screw bag x1
?Linkage rod A x2
