Specification: User manual

Overall	Brand Name	Eachine
	Item NO.	TX03

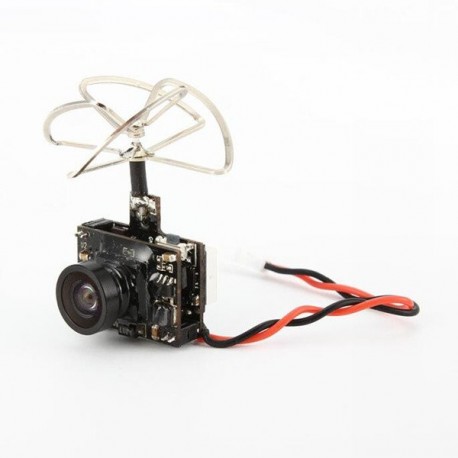

	Item name	AIO FPV VTX Camera
	Size	20.66mm*14.06mm*6mm (not included antenna,lens)
	Weight	6g
FPV Camera	Output power	0/25mW/50mW/200mW (switchable) (Set output power on 0, to avoid frequency interference)
	Input Power	2.5-5.5V
	Sensor	1/3 "CMOS
	Camera Resolution	600TVL
	Lens	M7 10mm Lens
	Angle	120 ° FOV horizontal viewing angle 150 ° DFOV diagonal perspective
	Mini illumination	1 lux
	Format	NTSC
Transmitter	Support video format	NTSC
	Output Impedance	50 Ohm
	Output signal strength	13±1dbmdBm
	Output Power	25mW:   14dBm 50mW:   17dBm 200mW: 23dBm
	Wireless Channel	72CH
	Antenna	RHCP circular polarization clover leaf antenna
	Antenna Size	22x29mm
	Operating voltage	2.5V ~ 5.5V
	Current consumption	25mW:   250mA-510mA 50mW:   270mA-640mA 200mW: 330mA-740mA
	Audio carrier	NO
Battery	1S Lipo Battery (3.7-4.2V)
Frequency Table	5.8GHz 9 bands 72 channels with Raceband: 5325-5945 MHZ

Feature:
AIO FPV camera, transmitter , atnenna all 3 functions in one limit size and weight
120 ° FOV horizontal viewing angle of 150 ° DFOV diagonal perspective
9 bands 72 channels with Raceband
Output power 25mW 50mW 200mW Switchable
Nickel-plated 4 Leaf Antenna , RHCP circular polarization clover to Antirust and get strong signal

Package Included:
1 X TX03 AIO FPV Camera
1 X Cable
1 X User Manual
