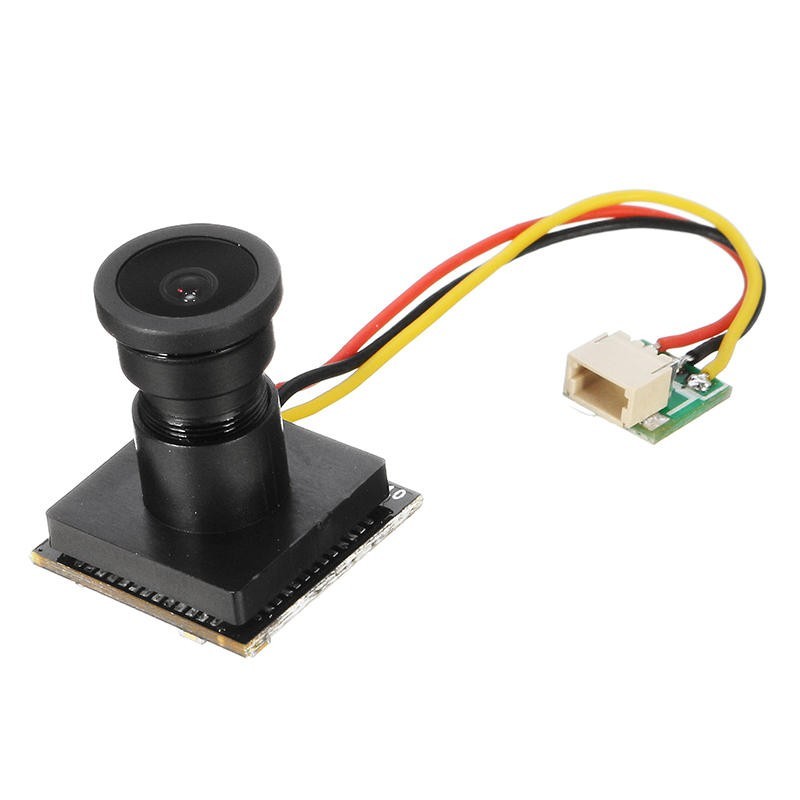

Eachine C600T 1/3 CMOS 600TVL FOV 100 Degree 120db Super WDR Mini Camera Compatible with VTX03

Reference: (SKU): 709322

In stock

Description

Size : 15mm*15mm(L*W)

Weight : 5g

Sensor : 1/3 COMS

TVL : 600TVL

Format : N/P

Resolution : 720*576(PAL); 720*487(NTSC)

Lens Diameter : 8mm
Ratio: 4:3

Sensitivity : 10.8[V/Lux.sec]

WDR : 120db

SNR : ≥48db

Gain Control : Auto

WB : Auto

Backlight Compensation : Auto

Shutter :1 - 1 / 10

Working Voltage : 3.3V-5V Working Current : 165ma

Working Temp.: -20℃--60℃ Wetness : 0%--98%

Features

Large imaging area

Large luminous flux

In the case of high contrast and lighting mutation, its fast and accurate response, in order to obtain the image of high-quality and full exposure

With high noise reduction technology, can eliminate dynamic image noise, image shadows and smearing phenomenon.

Cable : JST-SH 1.0mm 3p

Red : Voltage 3.3V-5V

Yellow : Video-out

Black : GND

Package Included

1 x Eachine C600T Mini Camera
