Specification:  User Manual

Overall	Brand Name	Eachine
	Item NO.	TX05

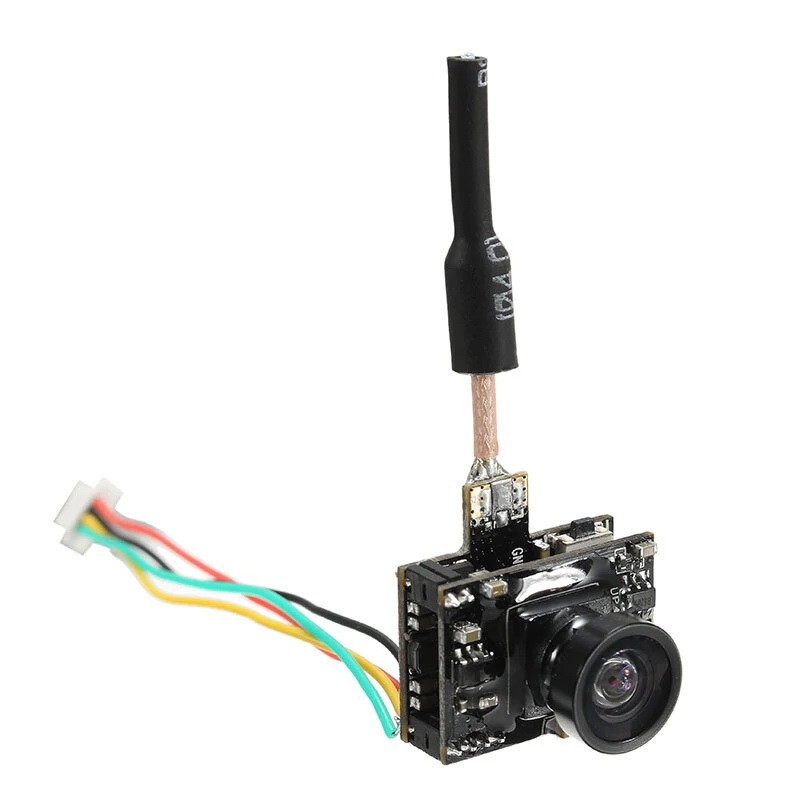

	Item Name	AIO FPV VTX Camera
	Size	19.6mm*14mm(L*W)
	Weight	4.9g
FPV Camera	Output power	0.01/5mW/25mW/50mW/100mW/200mW (switchable) (Let output power on 0, to avoid frequency interference)
	Input Power	3.3-5.5V
	Power consumption	540 mA
	Sensor	1/3 "CMOS
	Camera Resolution	600TVL
	Lens	M7 10mm Lens
	Angle	120 ° FOV horizontal viewing angle 150 ° DFOV diagonal perspective
	Mini illumination	1 lux
	Format	NTSC/PAL
Transmitter	Support video format	NTSC/PAL
	Output Impedance	50 Ohm
	Output signal strength	13±1dbmdBm
	Output Power	0.01mW: -20dBm 5mW:       8dBm 25mW:    15dBm 50mW:    17.5dBm 100mW:  21dBm 200mW:  23dBm
	Wireless Channel	72CH
	Extents	400m
	Antenna	5.8G Brass Antenna
	Working Voltag	3.3-5.5 V
	Current	0.01mW: 260-99mA 5mW:      300-140mA 25mW:    370-170mA 50mW:    470-220mA 100mW:  530-255mA 200mW:  800-540mA
	Audio carrier	NO
Battery	1S Lipo Battery (3.7-4.2V)
Frequency Table	5.8GHz 9 bands 72 channels                                                                            with Raceband: 5325-5945 MHZ

Power Level Instruction:
1) 0.01Mw: LED display "1" and blink twice.
2)    5Mw: LED display "2" and blink twice.
3)   25Mw: LED display "3" and blink twice.
4)   50Mw: LED display "4" and blink twice.
5)  100Mw: LED display "5" and blink twice.
6)  250Mw: LED display "6" and blink twice.

Opertio Instruction: 1. On the LED display the Letter means BAND, digits means CHs. Digits blink twice quickly means POWER Level. 2. The default power is 0.01Mw. Stting will restre the last band, channel and power level if no opretation act within 5 second. 3. Short press the button to change CH from 1 to 8. 4. Long press the button (about 2s) when letter blink, then short press to change BAND from A to H. 5. Long press the button (about 4s) when digit blink twice quickly, then short press the button to change POWER Level from 1 to 6.

Features: - AIO FPV camera, transmitter , atnenna, OSD 4 in one function limit size and weight. - Output power 0.01mw/5mw/25mw/25mw/50mw/100mw/250mw, 6 level one key to Switchable. - OSD enabled,support video in / video out. - Anticollision EVA case. - 9 bands 72 channels with Raceband. - Power failure memory, remember the frequency channel after powering off. - 120 ° FOV horizontal viewing angle of 150 ° DFOV diagonal perspective. - 5.8G  Brass antenna to Antirust and get strong signal. - Plug and play, designed for DIY.

Package Included: 1 x Eachine TX05 Camera 1 x Foam Protection Cover 1 x User Manual
