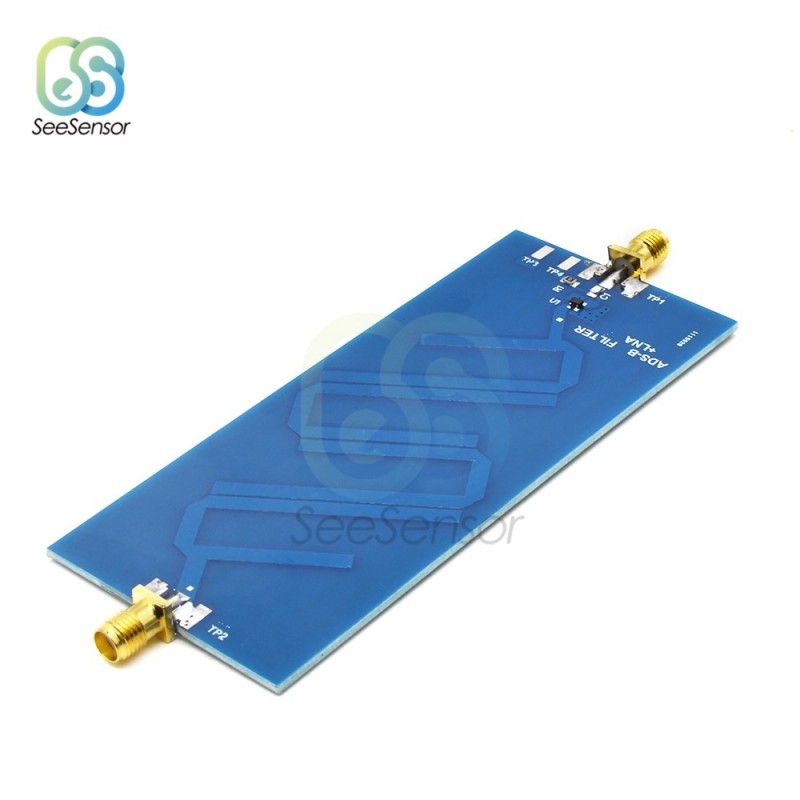

ADS-B 1090Mhz + LNA Bandpass Filter SMA Standard Female Head 1G-1.2GHz for SDR

Reference: (SKU): XF0052

ADS-B 1090Mhz + LAN Bandpass Filter SMA Standard Female Head 1G-1.2GHz for SDR

In stock

ADS-B active receiving antenna 1090 MHz

1 Technical indicators

1) Operating frequency: 1090 ± 15 MHz

2) Passive gain: 2dBi (dipole antenna)

3) Antenna polarization: omni-directional vertical line polarization

4) active gain: 20 dB

5) out-of-band rejection:> 30 dB

6) Working voltage: 2.5-5.5V (skin negative core)

7) operating current: 80 ma

8) system impedance: 50 ohms

9) Antenna weight: 23.4g

10) Dimensions: 12.55x4.6x0.66cm

11) Connector shape: SMA standard female head (inner outer screw hole)
