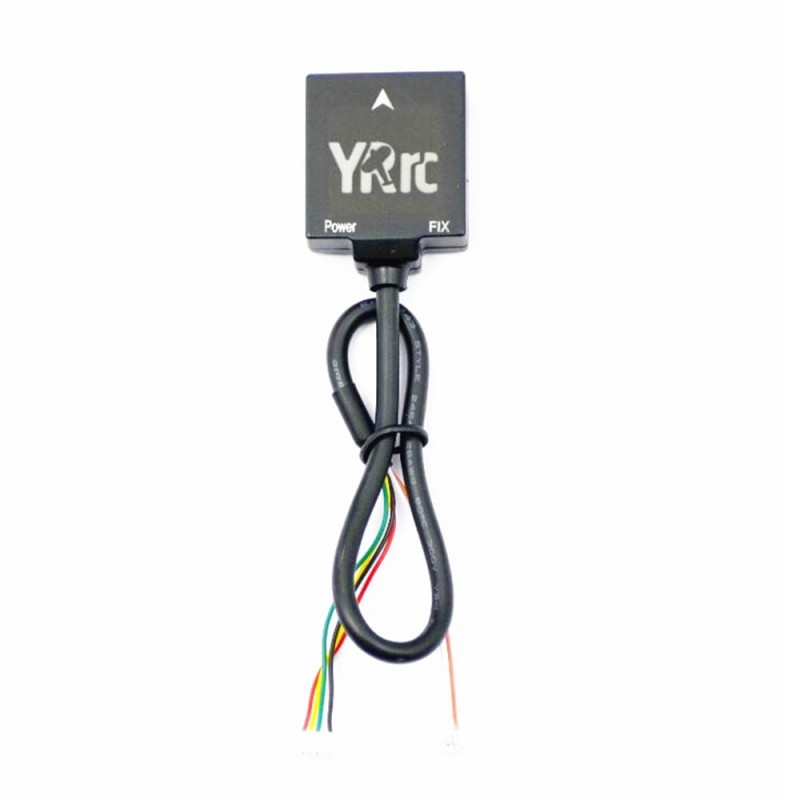

YRRC Mini M8N GPS Module UBX-M8030 for Mini PX4 Flight Controller

Reference: (SKU): B78213

In stock

Specification:
Brand Name: YRRC
Item Name: Mini GPS Module

Size: 32*30*12mm

Weight: 20g

Positional accuracy: 50 centimeter precision when working with concurrent GNSS

Velocity precision: 0.1m/s

Max height: 50000m

Max speed: 515m/s

Max acceleration: 4G

Max update rate: up to 10Hz

Sensitivity:

Tracking & Nav.: -167dBm, Reacquisition: -163dBm

Cold start: -151dBm, Hot start: -159dBm

Time to first fix: Cold start: 26s, Hot start: 1s

Connect ports:

Power supply: voltage 5VDC+-5%, current 50~55mA

Ports:

A. GPS UART interface

baud rate: 1.2K/4.8K/9.6K/19.2K/38.4K/57.6K/112.5K

B. Geomagnetic I2C interface

Top configuration:

GPS decoder chip: Radiolink M8N GPS, with UBX-M8030(M8), 72-channel, is much better than single GNSS 7N.

Geomagnetic: QMC5883L which with same technology as HMC5983 form Honeywell

Antenna: 2.5dbI high gain and selectivity ceramic antenna

Double filter: SAWF(Surface acoustic wave filter) form Murata

Package Included:
1x Mini M8N GPS Module
