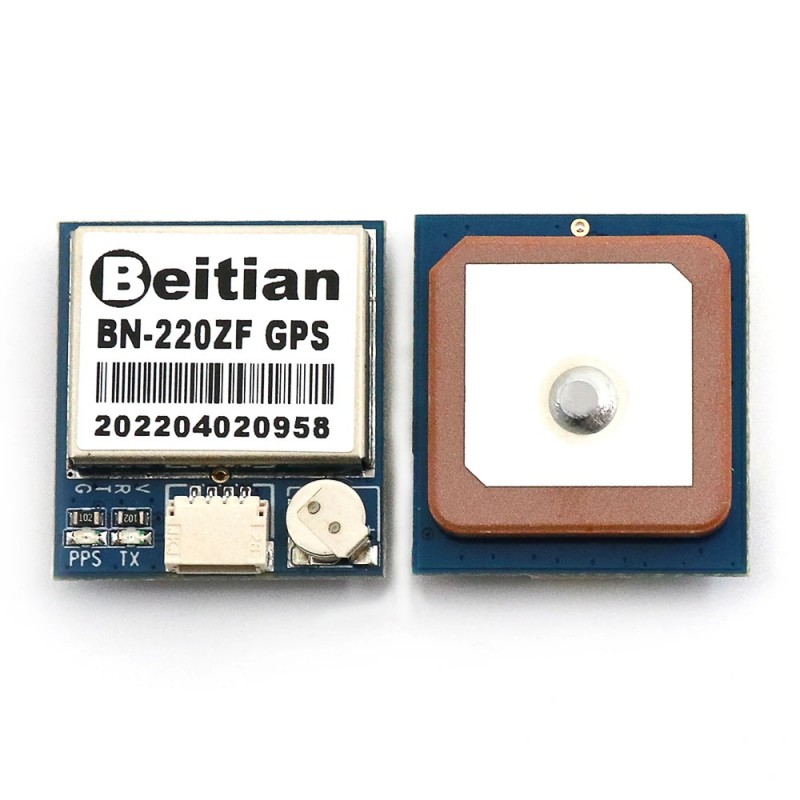

Brand Name: Beitian

Item Name: BN-220ZF

Chip: AT6558F

Frequency: GPS L1 GLONASS L1

Working Mode: GPS+GLONASS

Channels: 72 Searching Channel

Tracking Sensitivity: -162dBm

Reacquisition Sensitivity: -160dBm

Cold Start Sensitivity: -148dBm
Hot Start Sensitivity: -156dBm
Position Horizontal Accuracy: 2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)
Speed Accuracy: 0.1m/s 95% (SA off)

Time Accuracy: 30ns

Cold Start Acquisition Time: 32s
Hot Start Acquisition Time: 1s
Reacquisition Acquisition Time: 1s

Data Output Support Rate: 4800bps to 921600bps, Default 9600bps
Data Output Level: TTL Level
Data Output Protocol: NMEA-0183
Data Output NMEA Message: RMC, VTG, GGA, GSA, GSV, GLL
Data Output Update Rate: 1Hz-10Hz, Default 1Hz
Data Output Flash: Support, the configuration can be changed, and the data will not be lost when the power is off
Operational Altitude Limits: <50000m
Operational Speed Limits: <515m/s
Operational Acceleration Limits: <4g
Power Consumption of VCC: DC Voltage 3.6V-5.5V, Typical: 5.0V
Power Consumption of Current: Capture 50mA/5.0V
Dimension: 22.0mm*20.0mm*6.0mm
Weight: 5.4g
Connector: 1.00mm 4pins connector
Operating Temp: -40 °C ~ +85°C
Storage Temp: -40°C ~ +105°C
TX LED: Blue. The data output, TX LED flashing.
PPS LED: Red. PPS LED not bright when GPS not fixed, flashing when fixed.

Pin Description:

1x Beitian BN-220ZF GPS Module
