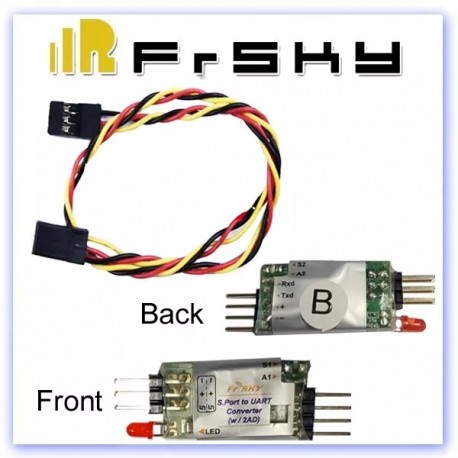

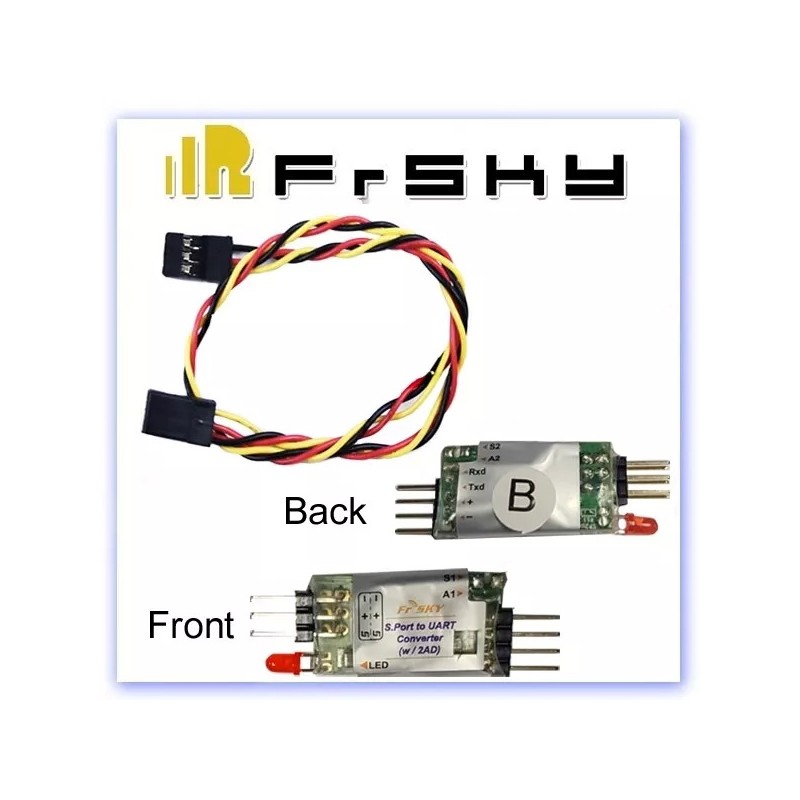

Product Description

This is an adapter/converter that supports two modes of operation:

1) Analog Signal input via the Smart Port, allowing the FBVS VOLTAGE sensor or other analog sensor (0-3.3V range) to connect with an X8R or other Smart Port receiver.

2) RS-232 Serial Data-Transmission is also supported through the Smart Port, allowing data passing for the technical DIY enthusiast.  In order to enable Data-Transmission, two devices [the Host (type A) and Remote (Type B)] are required to be used as a pair and set in the same configuration.  This mode could be used to connect a computer at the R/C transmitter to a device on the R/C craft over thewireless RS-232 link.  Note that the actual link capacity is recommended at 30 bytes/sec (with error correction), or up to 60 bytes/sec in high capacity mode (no error correction).

It is possible to activate and use both modes at the same time.

The type A HOST connect with module, and type B (see this for more detail: http://cgi.ebay.com/ws/eBayISAPI.dll?ViewItem&item=231170097106) is REMOTE connect with Receiver.

Specification:

Model: SP2UART

Size: 44mmX15mmX7mm

Operational Voltage: DC 4 - 10V

Current Draw: 20mA@5V

Weight: 3g

Operating Temperature Range: -40℃~85℃

Baud rate is 300bps by default and can be reconfigured up to 9600bps max.
