FrSky ADVANCE (ADV) series has comprehensive sensor types and enhanced the performance and capability of the original sensor line, all ADV sensors fully support FBUS protocol and they are also S.Port compatible. With the FBUS protocol, the ADV sensors can be seamlessly paired with the FBUS capable receiver and further simplifying the builds setup.

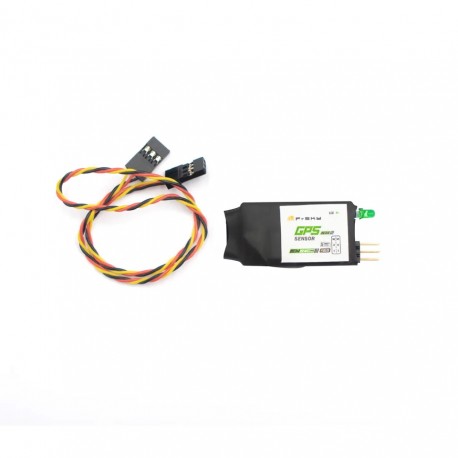

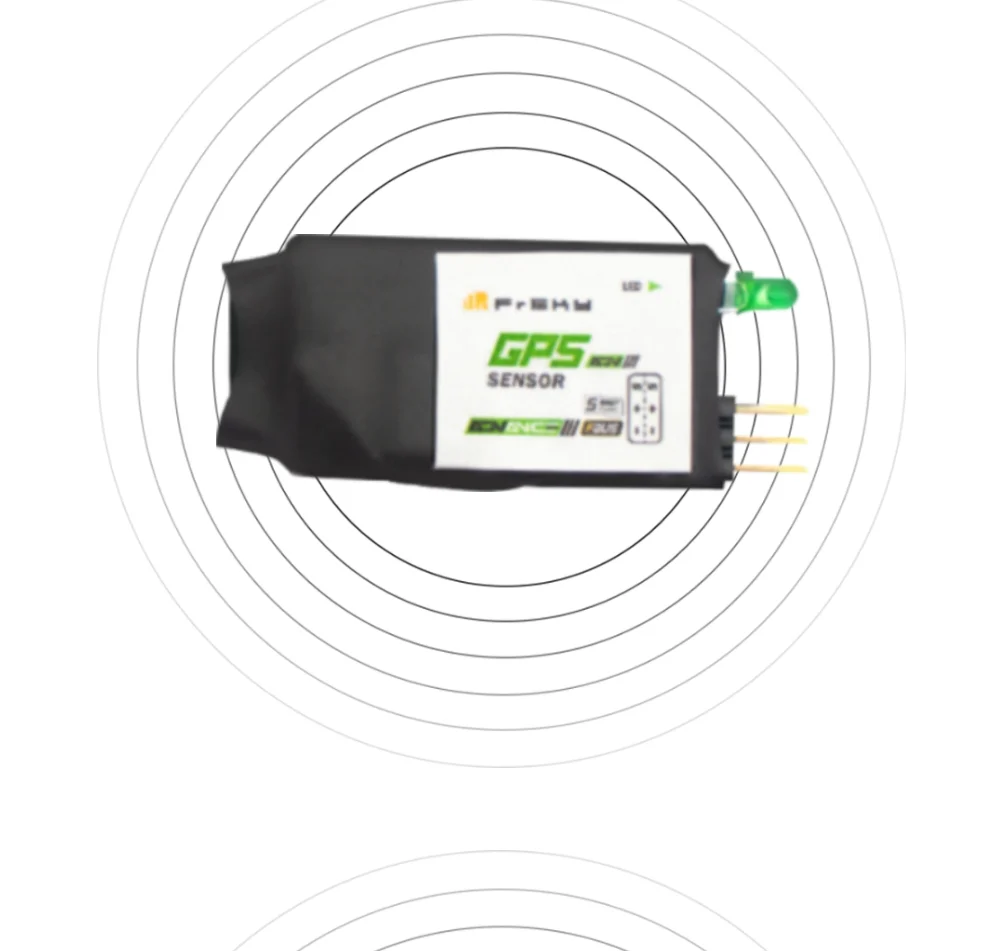

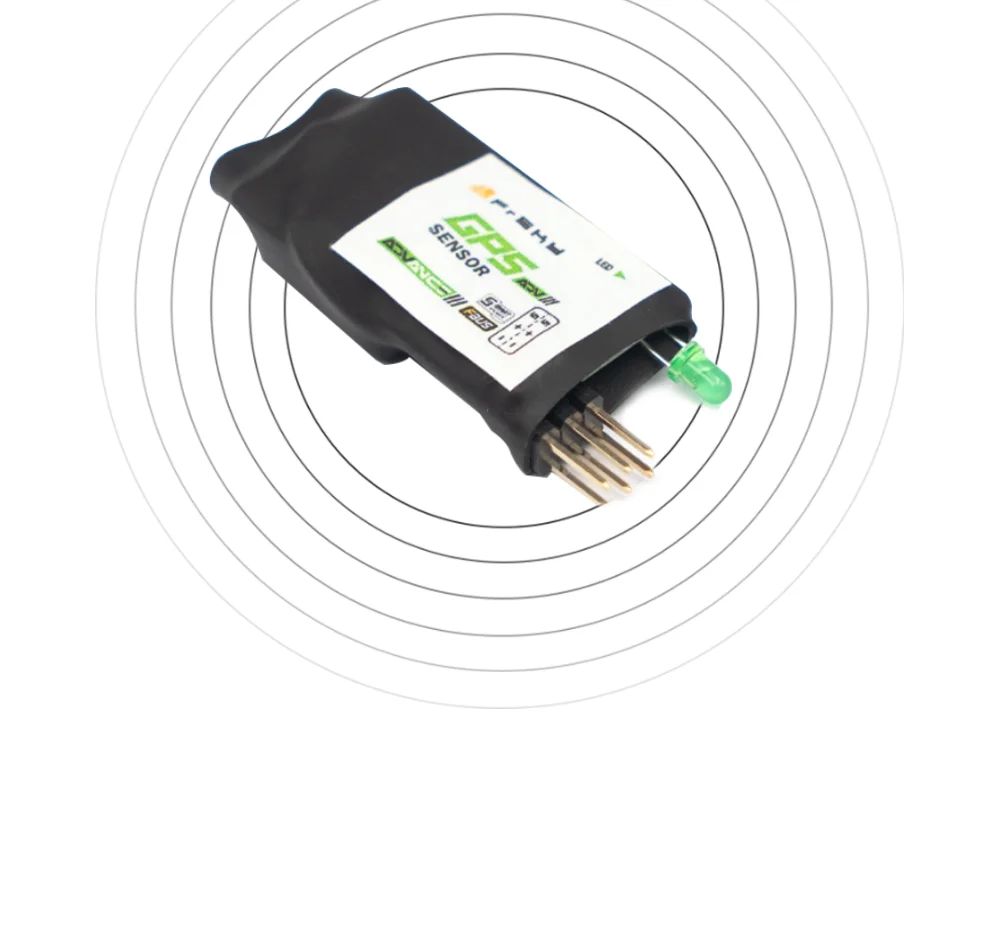

The ADV series GPS sensor provides accurate time synchronization with GPS satellites, working with the integrated "Auto adjust from GPS" function into the ETHOS system, this ensures the radio and its telemetry are all in sync with an accurate time system, ensuring telemetry data is in sync with UTC time. The GPS sensor can also provide telemetry such as altitude, position, speed, etc, which can be read on the radio in real-time.

SPECIFICATIONS

Dimension: 45*20*10.4mm (L*W*H)

Weight: 11g

Operational Voltage: DC 4 -10V

Current Draw: 40mA@5V

Operating Temperature: -40℃~85℃

Data Rate: 10Hz

Time to Fix: 30s cold start

Speed Accuracy: Approx 0.1m/s

Sensitivity: -164dBm

Antenna: Built-in patch

Position Accuracy: Approx 2.5m CEP

Operation Limits: Dynamics 4g / Altitude 50,000m / Velocity 500m/s

Compatible with FBUS / S.Port protocol
