Product Details

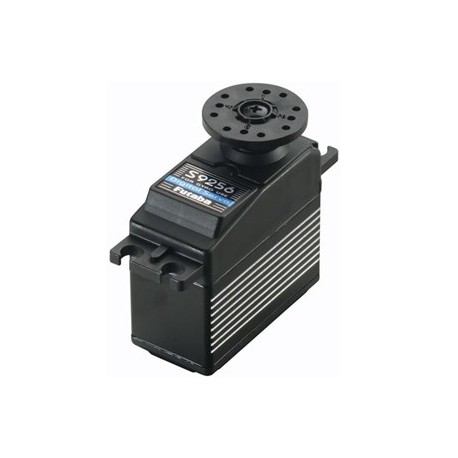

This is the S9256 Digital Servo used with the Futaba GY611 Gyro, FUTM0825.


FEATURES:
Aluminum case with heat sink to help cool motor
Special servo for the GY611. Compatible with Super Narrow Pulse of (760µs) drive.


INCLUDES:
(4) rubber grommets to isolate vibration
(4) brass eyelets
(4) phillips head self-tapping mounting screws
(1) large servo wheel 35mm in diameter
(1) star shaped (six arms) servo arm 32mm accross
(1) X-shaped servo arm 39mm across
One year limited warranty


REQUIRES:
Radio system using Futaba "J" type connectors


SPECS:
Dimensions: 1.57"x 0.79"x 1.44" (40 x 20 x 36.5mm)
Weight: 2.01oz (57g)
Speed: 0.06 sec/60° @ 4.8V
Torque: 47 oz-in (3.4 kg-cm) at 4.8V


COMMENTS:
FUTM3064 - Case Set
FUTM3443 & FGS9251 - COMPLETE SERVO GEAR SET S9251 (with metal final gear)
FUTM3502 & FGS9251 - 1/2/3 GEAR SET (without metal final gear)
