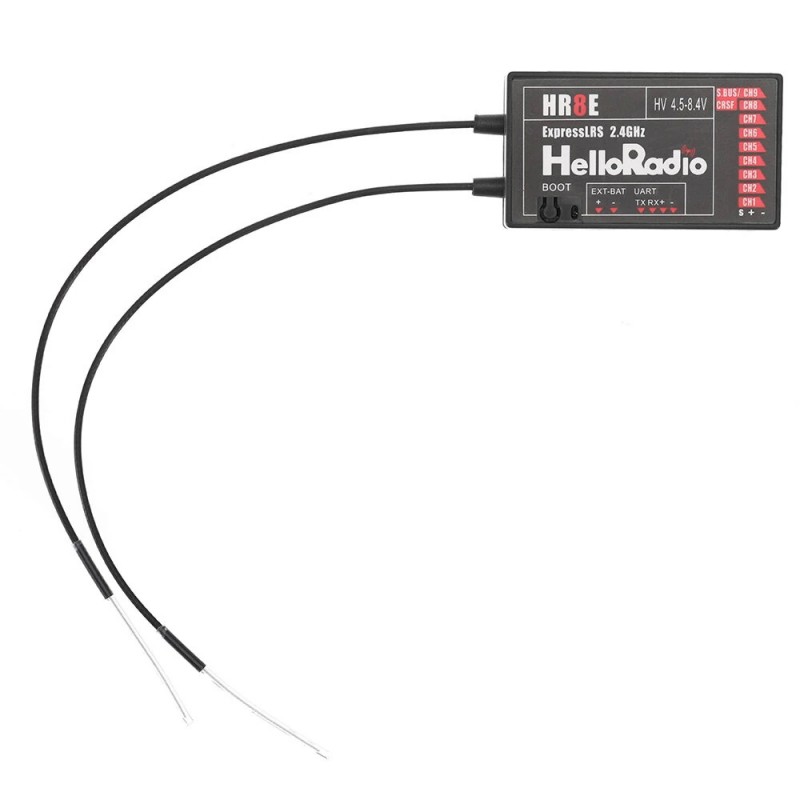

HelloRadio HR8E 2.4GHz ExpressLRS ELRS 9CH PWM RC Receiver for Fixed Wing RC Airplane Boat

Specification:
Beand: HelloRadio
Models: HR8E 2.4GHz ELRS PWM Receiver
Color: Black/Red/Yellow (Optional)
Power Supply: DC4.5-8.4V
Antenna Type: 18cm High-sensitivity Dual Antenna
Wireless Protocol: Pre-installed ExpressLRS 3.3.0
Output Channel: 9CH PWM
Return Power: Up to 100mw (adjustable in LUA)
Return Battery Voltage Detection Range: DC4.0-35V
Bus Interface: CRSF
Weight: 11g
Dimensions: 48*27*15 mm (±2)

Binding:
1. Power on the receiver, the LED will be on. Power off the recelver.
2. Repeat Step One twice.
3. Power on the receiver for the third time. The LED will flash twice swiftly, indicating that it is in binding mode.
4. Select and confirm binding operation on the radio.

Package included:
1x HelloRadio HR8E 2.4GHz ELRS PWM Receiver
