Product Details

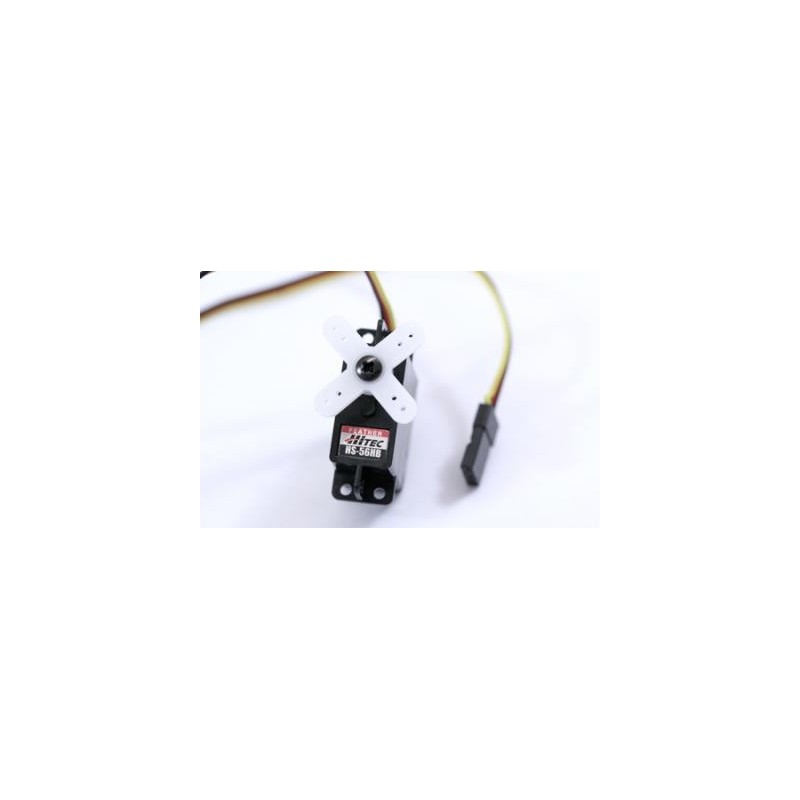

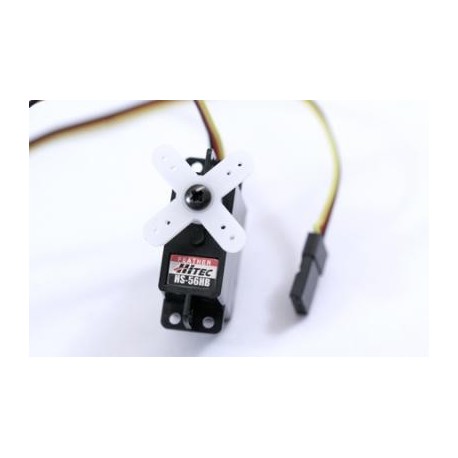

This is the Hitec HS-56HB Feather Sub Micro Servo designed for use with
park flyers, high performance electric models and gliders up to 2 meters.

FEATURES: Ball bearing
Karbonite gears
Upright or flat mounting tabs
Compatible with Futaba J, Hitec, JR and Airtronics Z receivers

INCLUDES: One servo with Hitec S style Connector and pre-installed 1" 4 arm servo horn
One 1" (25.4mm) long single arm servo horn
One 1-3/8"(35mm) double arm servo horn
Four 3/8" (10mm) long screws (for mounting the servo into your model)

SPECS:    Length: .88" (23mm)
Width:  .45" (12mm)
Height: .95" (24mm)
Speed: 0.12sec/60° @ 4.8V              0.1sec/60° @ 6V
Torque: 16.66 oz-in (1.2 kg-cm) @4.8V  19.4 oz-in (1.4 kg-cm) @ 6V
Weight: 11.2g (0.39oz)

COMMENTS: Servo case set is available separately, HRCM5412.
Replacement horn set: HRCM5711
