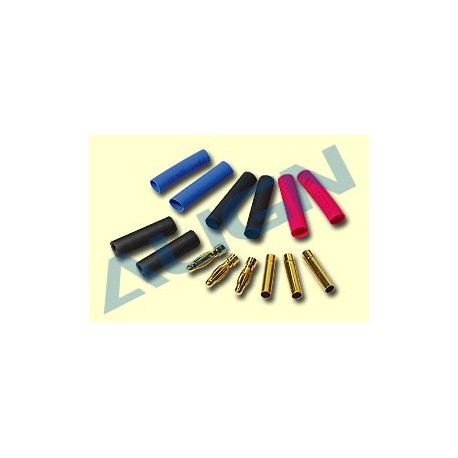

24k gilt terminal - K10149A-1

View larger

ALIGN 3.0mm Terminal Connectors

Reference: (SKU): K10149A-1

ALIGN 3.0mm Terminal Connectors

In stock

Print

More info

Product Details

Product:

Schematic Drawing:

? First, use the insulation sleeve(the smaller side of inside diameter) to cover the red (positive) wire on the positive electrode.	? Add solder tin to the gilt terminal pin contact & leading wire, and then solder both sides with a flat iron. (Caution: be sure you have soldered correct electrode/wire).		? Push the insulation sleeve over the gilt terminal using an implement to push it into the fixed position, which is shown by the arrow.

? After soldering the gilt terminal socket contact, cover with the insulation sleeve.	? The connection with the speed controller.
Specification:
(mm)
Instructions:		Accessories:

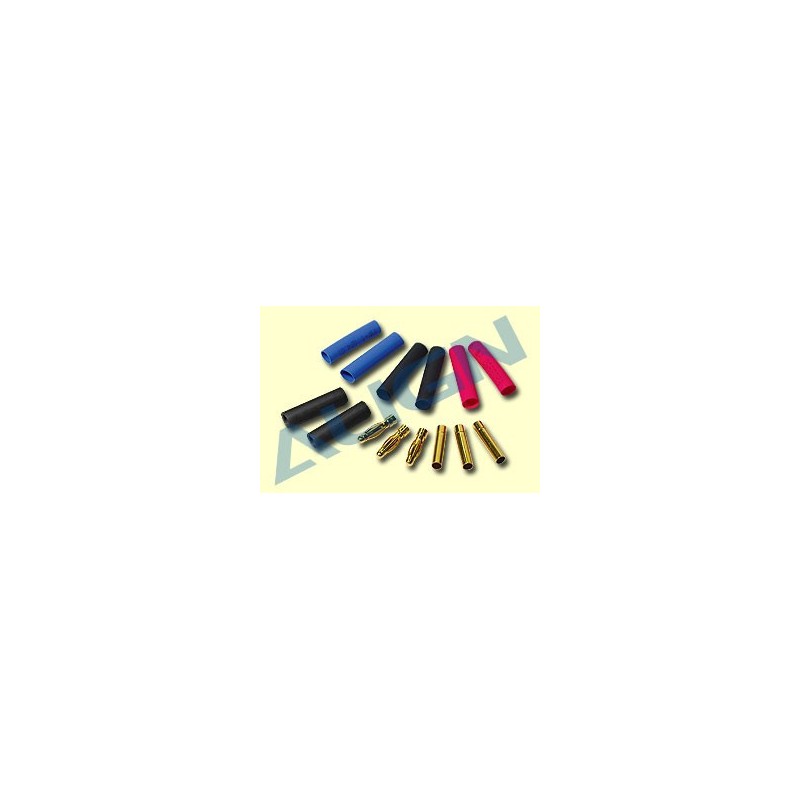

?Made with alloy copper, having high electrical conductivity ?Surface coated with high electrical conductivity material ?Continuous and high current resistance (50A) (Caution !!! Never use different sizes of socket or pin's on 3mm's gilt terminal; for example, 3.5mm etc. It may cause problems, such as improper electric conduction, erratic motor starts, and the ESC may lose power.)		?3mm 24K gilt terminal pin contact x 3pcs ?3mm 24K gilt terminal socket contact x 3pcs ?High temperature-resisting insulation sleeve x 6 PCS ?Gilt
