Radiomaster Ranger Micro 2.4GHZ ExpressLRS RF Module Up to 1Watt Power Output Support Wifi Bluetooth With RP1 RP2 ExpressLRS 2.4ghz Nano Receiver Combo for TX16S MKII TX12 MKII Radio Transmitter

Want to experience the efficiency, long range and low latency of the ELRS protocol without purchasing a new radio? RadioMaster has you covered!

Featuring up to 1W output, F-1000Hz refresh rates and a high-efficiency cooling system, the Ranger Micro 2.4GHz ELRS Module represents the cutting edge in ELRS technology. Attach the module to a compatible radio (TX16S, TX16S MkII, TX12, TX12 MkII and more) to enjoy all that ELRS has to offer.

The included T-shape antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications.

Ranger Micro Module Specification:

Brand: Radiomaster

Item: Ranger Micro Module

Regulatory Domain: ISM2400

MCU: ESP32(main), ESP8285(aux,as ESP backpack)

RF chip: SX1281IMLTRT

Frequency Range: 2400 MHz - 2480 MHz

Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)

Minimum receiver refresh rate: 25Hz

RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)

Wifi Support: Yes

Bluetooth support: Yes

XT30 Power supply voltage: DC 6V - 16.8V

Weight:  50g (with antenna) / 40.5g (without antenna)

Dimension: 136*49*33mm (with T antenna) / 74*49*33mm (without antenna)

RP2 Nano Receiver Specification:

Item Name: RP2 Nano Receiver

Type: ISM

ESP8285 MCU

SX1280IMLTRT RF Module

Antenna: On Board SMT Antenna

Frequency Range: 2400 MHz to 2480 MHz

Maximum receive refresh rate: 500Hz /F1000Hz

Minimum receiver refresh rate: 25Hz

Working voltage: 5v

Weight: 0.55g

Dimension: 13mm*11mm*7mm

Ranger Micro Module Features:

* High-efficiency cooling system.

* Up to 1Watt Power output .

* Wifi and Bluetooth support.

* Packet rates up to F-1000Hz.

* T-antenna included.

* With the Micro connector, support TX16S MKII and TX12 MKII radio.

RP2 Nano Receiver Features:

* Improved PCB design is better for heat dissipation.

* Solder pads are improved and easier to solder to.

* LED on top side of PCB.

*Note: The Ranger Micro 2.4GHz ELRS Module fits JR style micro module bays, for Nano connectors, please consider the Ranger and the Ranger Nano modules.

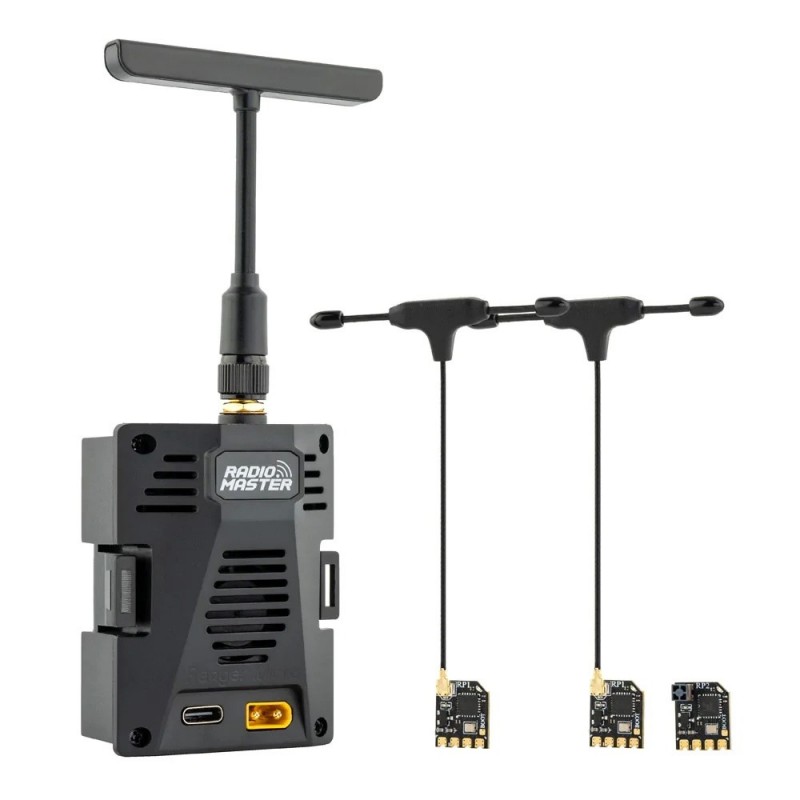

Package Included:

1 * Ranger Micro Module

1 * T Antenna

2 * RP1 ExpressLRS 2.4ghz Nano Receiver

1 * RP2 ExpressLRS 2.4ghz Nano Receiver
