View larger

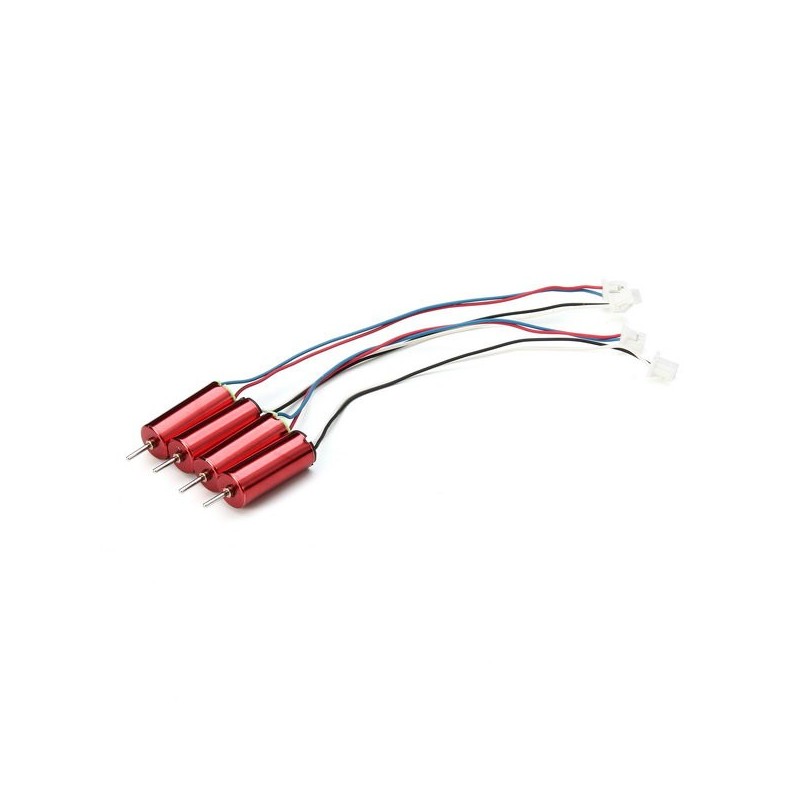

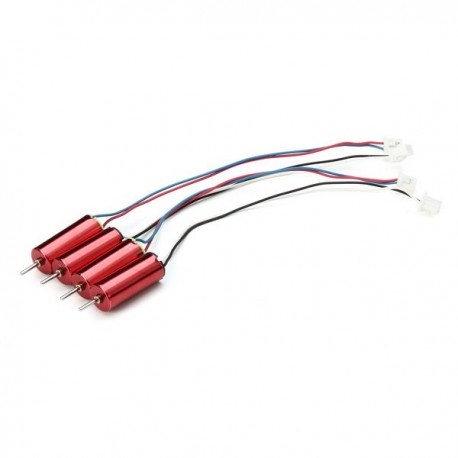

4X Racerstar 615 6x15mm 59000RPM Coreless Motor for Eachine E010 Blade Inductrix Tiny Whoop w/connector

Reference: (SKU): 529912-CON

More details

In stock

More info

escription:
Motor Diameter: 6.0mm
Motor Length: 15mm
Shaft Diameter: 0.05-0.3mm
Cable Length: 70mm
Weight: about: 1.8g
Option: Clockwise Motor(With Red Blue Wire), Anti-clockwise Motor(With Black White Wire)
Option: With 1.25mm JST Plug
Quantity: 4 pcs

1.Operating condition

Rated voltage	3.4V DC
Direction of rotation	CW and CCW
Operating voltage range	DC2.0--4.5V DC
perating temperature range	-10-50°C
Motor position	all position

2.Mearsuring condition

Motor position	horizontal or vertical
Power supply	regulated DC power supply assuring unquestionable measuring
regulated DC power supply assuring unquestionable measuring	10-30°C 30-95% If the judgment is questionable,Measurent is to be made based on JIS Standard Testing Condition(20+2°C,65+5% )
Direction of rotation	viewed from output shaft side

3.Electrical characteristics

Items	Specification	Standard value
No Load speed	59000rpm±12%	59000 rpm
No Load current	180mA max	110mA
Starting voltage	0.8V max	0.5V DC
Stall current	2833mA±5%	2833mA
Terminal resistance	1.2ohm ±5%	1.2ohm
Insulation resistance	10M ohm min	AT 250V DC between motor terminal and case

Package included:
2x CW motor
2x CCW motor
