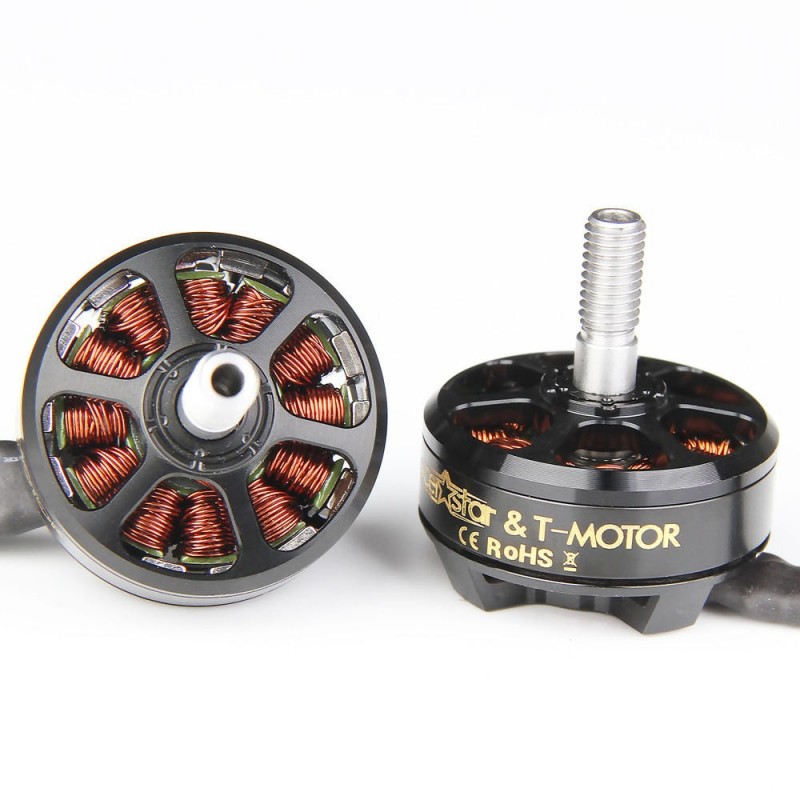

Racerstar & T-Motor F40 II 2305 2400KV 3-4S Brushless Motor for RC Drone FPV Racing View larger

Racerstar & T-Motor F40 II 2305 2400KV 3-4S Brushless Motor for RC Drone FPV Racing

(SKU): B51307

Racerstar & T-Motor F40 II 2305 2400KV 3-4S Brushless Motor for RC Drone FPV Racing

More details

In stock

27,00 € tax incl.

More info

Racerstar & T-Motor F40 II 2305 2400KV 3-4S Brushless Motor for RC Drone

Specification:
Brand Name: Racerstar & T-Motor
Model:  F40 II
Item Name: 2305 1600KV 3-6S / 2400KV 3-4S Brushless Motor
KV: 1600KV / 2400KV ( Optional)
Version: CW Screw Thread
Quantity: One PC
Input Voltage: 3-4S Lipo ( 2400KV Version )
Configuration: 12N14P
Motor Dimension: 28.4x31mm
Shaft Diameter: 4mm
Cable Length: 200mm ( 20AWG)
Internal Resistance: 60mΩ @ 2400KV; 114mΩ @ 1600KV
Max. Con. Current: 33.4A (180S)@2400KV ;  23A (180S)@1600KV
Max. Con. Power: 508W (180S)@2400KV; 535W(180S)@1600KV
Weight: 32.2g

Package Included:
1x F40 II 2305 Motor
1x Motor Nut
1x bag of Screws
