Specifications:

Brand Name: MATEKSYS

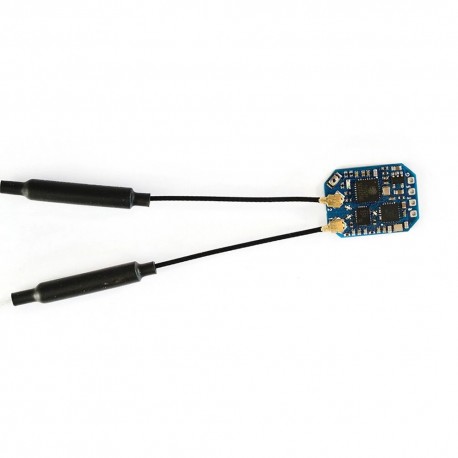

Item Name: ELRS-R24-D RC Receiver

Model: ELRS-R24-D

Weight: 3g (with 2x antennas)

PCB Size: 21x15mm

ESP8285, SX1280IMLTRT

PA/LNA: SE2431L

Antenna connector: IPEX MHF 1

RF Frequency: 2.4GHz (2400~2480MHz)

Telemetry power: 22.5dbm~23dbm

SE2431L RX_gain: 12.5dB

Diversity (antenna-switching), default ANT2

Receiver protocol: CRSF

Input voltage: 4~9V DC @ 5V pad

Power dissipation:  40~45mA(before binding), 70~75mA(binding), 90~95mA(wifi mode)

Firmwares:

ExpressLRS MATEK_2400_RX

Firmware update via UART or WIFI

ELRS-R24-D:  enable “USE_DIVERSITY” (checked) when flashing in ExpressLRS configurator

Note:

“Any ELRS 2.4Ghz receivers can work with any ELRS 2.4Ghz TX Modules, from any manufacturer and even the DIY ones. This is as long as they have the same binding phrase and configuration options (Regulatory Domain, Performance Options and Extra Data).”

More details about ExpressLRS, pls check out  ExpressLRS wiki

Wiring with FC

Receiver RX — FC UART_TX  for Telemetry

Receiver TX — FC UART_RX  for Control

Receiver 5V — FC 5V or 4v5

Receiver G — FC GND

Receiver protocol: Serial-based receiver – CRSF

Traditional Binding

Receivers have ExpressLRS fw V1.1.0 preloaded without BINDING_PHRASE

1. Power on and off your receiver three times

2. Make sure the LED is doing a quick double blink, which indicates the receiver is in bind mode

3. Use the [BIND] button on the Transmitter Lua script, which sends out a binding pulse

4. Receiver will switch to slow blink once it has received binding pulse.

5. Power off and power on receiver again. If the receiver LED switch to solid on from slow blink, it’s bound with your transmitter.

Important:

If the RX firmware has a bind phrase, the RX will never enter binding mode using the above procedure. It must be flashed without a binding phrase to do traditional binding.

Flashing with ESP_NodeMCU-PyFlasher

1. Connect receiver to USB-TTL module(RX-TX, TX-RX, 5V-5V, G-GND)

2. Connect USB to PC while pressing and holding the boot button in.

3. Open ESP_NodeMCU-PyFlasher

4. Select Serial port of USB-TTL module,  load firmware,  select “Dual Output(DOUT)”  and “Yes.wipes all data“

5. Click “Flash NodeMCU“

6. After flashing, Power off and power on your receiver, receiver will enter binding mode(quick double blink).

Flashing with ELRS configurator

MATEK_2400_RX target is not available in ELRS configurator 1.0.8 and fw release 1.1.0 for now

Package Include:

1 x ELRS-R24-D RC Receiver

2 x IPEX MHF1 Antennas
