Feature:

1. Applicable Models: The LED program card is used to program the brushless ESC and is suitable for Rocket V2 ESC, 45A 60A 80A 120A 150A brushless waterproof ESC.
2. Easy to Operate: Insert the ESC directly into the programming card, and then select the desired program.
3. Low Voltage Cut off Protection: The low voltage cut off can prevent the lithium battery pack from over discharging, protecting the battery and the ESC.
4. Easy to Program and Wide Compatible: Compact and lightweight, the program card is easy to program, and compatible with pocket sized program cards.
5. Plastic and Electronic Component: Made of high quality plastic and electronic component materials, the LED program card is durable and has a long service life.

Specification:

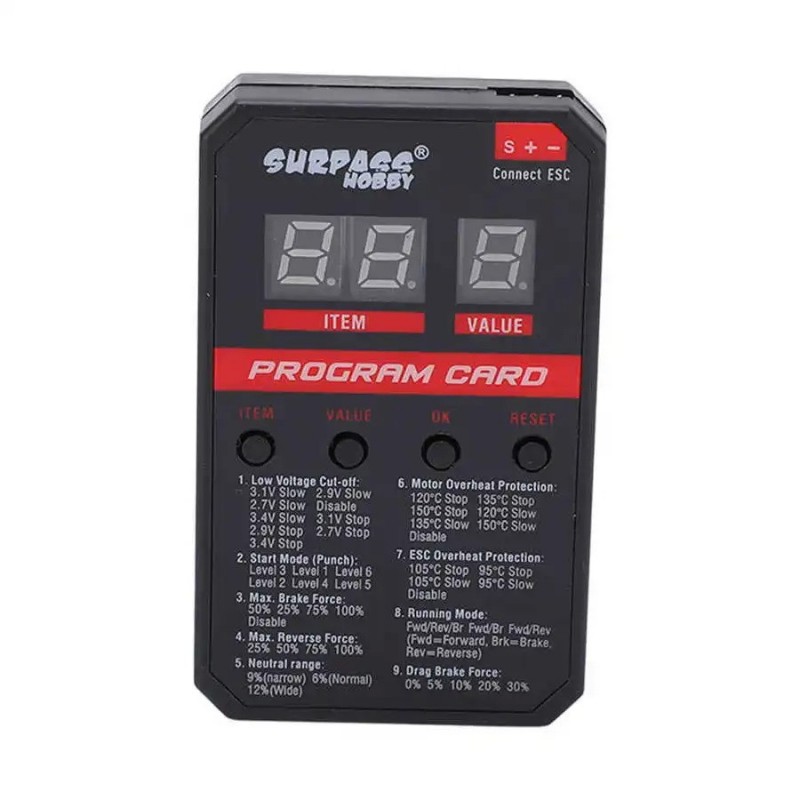

Item Type: LED Program Card
Material: Plastic + Electronic Components
Product Color: Black
Length: Approx. 70mm / 2.8in
Width: Approx. 43mm / 1.7in
Height: Approx. 13mm / 0.5in
Product Weight: Approx. 35g / 1.2oz
Product Features:
1. Low Voltage Cut Off: Its function is mainly to prevent the over-discharge of the lithium battery pack.
2. Start Mode: Level 3, level 1, level 6, level 2, level 4, level 5 (default level 3)
3. Maximum Braking Force: 50%, 25%, 75%, 100%, 0% (default 50%)
4. Maximum Retreat Strength: 25%, 50%, 75%, 100% (default 25%)
5. Throttle Center Broadband: 9% (narrow), 6% (normal), 12% (wide) (default 9%)
6. Motor Overheat Protection: 120°C stop, 135°C stop, 150°C stop, 120°C slow, 135°C slow, 150°C slow, no protection (default 120°C stop)
7. ESC Overheating Protection: Stop at 105°C, stop at 95°C, slow down at 105°C, slow down at 95°C, no protection (default 105°C stop)
8. Working Mode: Forward and backward braking, forward braking, forward and backward braking (default forward and backward braking)
9. Drag Brake Force: 0%, 5%, 10%, 20%, 30% (default 0%)
Applicable Models: Suitable for Rocket V2 ESC, 45A 60A 80A 120A 150A Brushless Waterproof ESC

Package List:

1 x LED Program Card

How to use the program card:

1. Connect to the ESC through the BEC wire, and then turn on the ESC.

2. The programming card sequentially displays the values corresponding to 1 to 15 programming items.

3. Press the button "ITEM" to select the programming item to be programmed.

4. Press the button "VALUE" to select the value to be set for the current item.

5. Press the button "OK" to confirm the above selection and make the corresponding programming settings.

6. Press the button "RESET" to restore factory settings.
