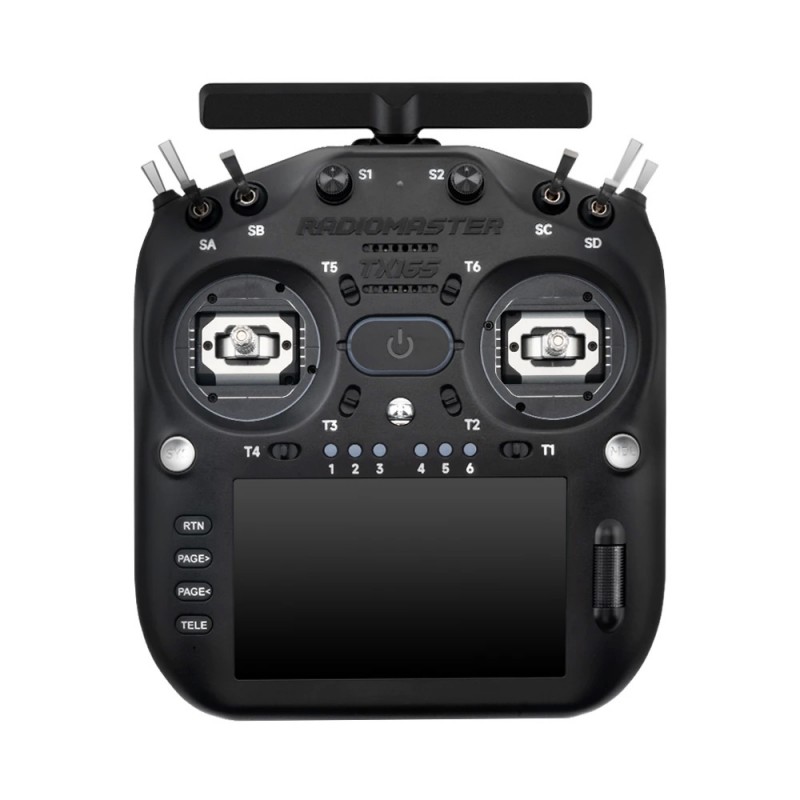

Radiomaster TX16S MK3 Radio Controller ELRS 2.4GHz/900MHz Dual Band Gemini-X 5.0" Color Touchscreen V6 Hall Gimbals EdgeTX Transmitter for FPV Racer Drone

RadioMaster continues to lead open-source RC innovations, building on the trusted global legacy of the TX16S series. The TX16S MK3 elevates performance, precision, and ergonomics to new levels. Looking for something even more refined? Check out the TX16S MK3 MAX, which features industry-leading AG02 CNC full aluminum Hall-Effect gimbals, aluminum CNC buttons and knobs, and a carbon-look case for a truly premium experience.

Specification:

Brand: Radiomaster

Item: TX16S MK3 Radio Controller Color: Black / Transparent Charcoal Voltage Range: 6.6 - 8.4V DC Working Current: 1.10A (at max RF output power) Radio Firmware: EdgeTX (require 3.0.0 or higher) Built-in RF Module: ExpressLRS 2 x LR1121 Frequency: ISM 2.4GHz and Sub-G 900MHz Number of Channels: Up to 16ch Gimbal: V6 Hall sensor gimbals (standard) MicroSD Card Slot: Yes (card not included) Internal Storage: Integrated 4GB of onboard flash memory Display: 5-inch IPS touchscreen (800 X 480 resolution) Battery: Two 3.7V 18650 Lithium-Ion cells / 21700 Li-ion 5000mAh Battery / 2S 7.4V 6200mAh Lipo (batteries not included) Upgrade Method: USB / EdgeTX Companion PC software Module Bay: JR-compatible module bay for additional modules Dimensions: 200*178*88mm Weight: 813g (without battery) Features:

* High-Performance MCU: Powered by the STM32 H7 chip for maximum processing power.

* Touchscreen Display: 5-inch, 800 x 480 IPS touchscreen with vivid colors and sharp detail.

* Precision Gimbals: V6 quad-bearing Hall sensor gimbals (AG02 compatible)

* RGB Programmable Gimbal Light Rings: LUA-controlled, customizable LED gimbal lighting.

* Internal RF Module: Dual-band Gemini 2.4GHz and Sub-G 900MHz

* Smart Balance Battery Circuit: Maximizes battery efficiency and longevity for better battery life.

* Powerful Cooling System: Low-noise, high-output fans and an aluminum heat sink keep your radio cool, even on the hottest days.

* Digital audio: Greater sound quality and reduced interference.

* Dual Foldable Antennas: Compact and easy to store without compromising signal strength.

* Built-in Microphone: For future feature expansion.

* Automatic back light adjustment: Makes the screen easier to read indoors and out.

* Built-in Motion Sensor: Trigger switches, pan/tilt cameras, or telemetry callouts simply by tilting your radio.

* Memory: Integrated 4GB of onboard flash memory and external MicroSD card support.

* Removable shoulder switch panels: Customize your setup with modular switch panels.
