Sale! Eachine Chaser88 F3 FPV Racer ARF with 4 In 1 6A ESC 5.8G 40CH VTX 800TVL 1/3 Cmos Camera 2-3S View larger

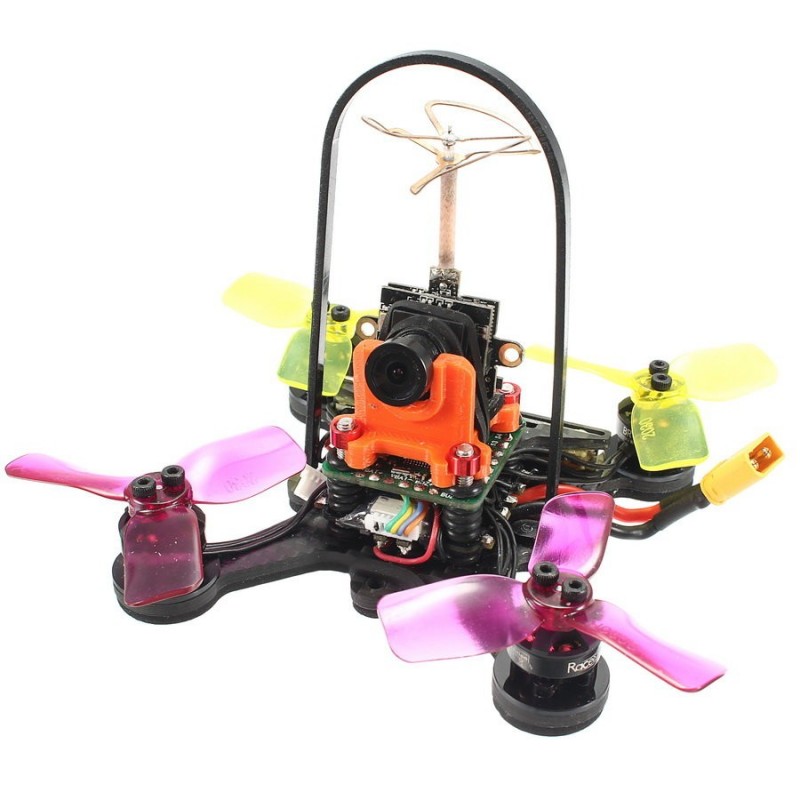

Eachine Chaser88 F3 FPV Racer ARF with 4 In 1 6A ESC 5.8G 40CH VTX 800TVL 1/3 Cmos Camera 2-3S

(SKU): 558659

Eachine Chaser88 F3 FPV Racer ARF with 4 In 1 6A ESC 5.8G 40CH VTX 800TVL 1/3 Cmos Camera 2-3S

More details

In stock

160,00 € tax incl.

-20,00 €

180,00 € tax incl.

More info

Eachine Chaser88 Betaflight F3 FPV Racer ARF with 4 In 1 6A Dshot ESC 5.8G 40CH VTX 800TVL 1/3 Cmos Camera

Note: Please do NOT upgrade the flight controller firmware with the official BetaFlight firmware because the firmware
had been customized from the official one. Please flash with the customized firmware (download link) instead.

 SpecificationFeatures
Chaser88 Frame
Package : 215×110×265mm
Weigh(without battery): 67g
Weight (with battery): 90g
Package Weigh: 215g
 		Compatible with 2030 inches propeller
Compatible with 1103 motor
Can be used with 2-3S battery
Wheelbase: 88mm
Flight time: 3.5mins
Batterry:  2S 45C 450mah
With direction indicator LED
ESCModel: BLHELI-S 6A
Continuous Current: 6A
Instantaneous Current(10S): 10A
BEC: NO
Li-Po Battery: 1-2S
Programming: Yes
Weight: 5G
Size(PCB): 27 x 27mm
M3 install Pitch: 20 x 20mm
Support DSHOT600
Motor1103 10000KV
Voltage: 11.1V                         Power: 64.4W
Prop: 2 inches                        Efficiency: 1.4 g/w
Load current: 5.8A                 Lipo cell: 1-3s
Pull: 90g                                Weight: 3.7 g
Flight
Controller		 F3 Mini
Firmware version:  bf 1.3.1
800TVL CameraSensor: 1/3 "CMOS
Lens: M8 800TVL Lens
Angle: 150 ° FOV horizontal viewing angle of 170 ° DFOV diagonal perspective
Format: NTSC / PAL (switchable)
Resolution: NTSC: 960X480/ PAL:960X480
Power consumption: 380mA @ 3.7V
Power: 3.6-5.5V
Lens Mirror Diameter: 2.1mm IR coated FOV150 (horizontal)
 FPV TransmitterSupport video format: NTSC / PAL
Output Impedance: 75 Ohm
Output signal strength: 23 ~ 24dBm
Output Power: 25mW
Wireless Channel: 40CH
Antenna: RHCP circular polarization clover leaf antenna
Operating voltage: 3.6V ~ 5.5V
Current: 100mA
Audio carrier: 6.5MHz

Button function
Short press (Apr. 1 sec or less): Change channels 1-8
Long press (More than 1.5 sec): Change bands A-B-E-F-R
Long + press (More than 3 sec): Change NTSC/PAL system
NTSC or PAL (selectable; Blue LED on= NTSC; Blue LED off=PAL)


                                                 Frequency Table
Frequency Band A58655845582558055785576557455725
Frequency Band B57335752577157905809582858475866
Frequency Band E57055685566556455885590559255945
Frequency Band F57405760578058005820584058605880
Frequency Band R56585695573257695806584358805917


Package Included:
1 X Frame Kit
4 X 1103 motor
4 X 2030 Propeller
1 X Camera
1 X VTX
1 X Antenna
1 X 4 IN 1 ESC
1 X Flight controller
1 X LED with Buzzer
1 X Battery
1 X Black Alumina Camera protection ring
