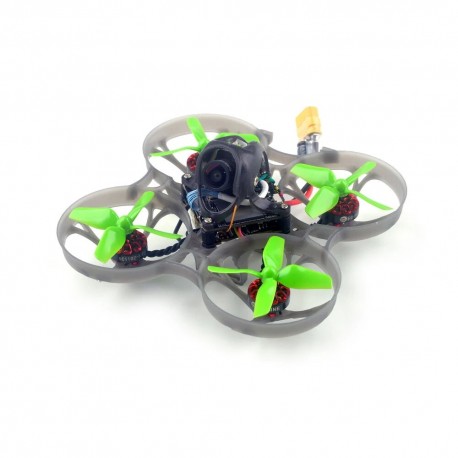

Eachine Cinefun 1S 75mm CRAZYBEEX 39g Split3-lite 1080P

Reference: (SKU): G75103-TBS CRSF

More details

In stock

More info

Specification:

Brand Name: Eachine

Model: Cinefun

Item Name: 75mm 1S F4 1080P Whoop FPV Racing Drone

Wheelbase: 75mm
Size: 97mm*97mm*51mm
Weight: 37g for 1080p camera version (without battery)
Takeoff Weight: 54.5g (with Original 1s 650mah Lipo battery )

Flight Time: 5 mins ( take example as original lipo battery)

1102 19000KV Motor	Model: NC1102 KV: 19000KV No.of Cells(Lipo): 1S only Configuration:9N12P Stator Diamter:11mm Stator Length:2mm Shaft Diameter:Φ1.5mm Motor Dimension(Dia.Len):Φ13.5mm16mm Weight: 2.9g
F4 OSD Flight Controller	(Frsky SPI RX version) CRAZYBEEX FR V2.2 FC Firmware target: CrazybeeF4FR (Flysky SPI RX version) CRAZYBEEX FS V2.2 FC Firmware target: CrazybeeF4FS (External TBS CRSF NANO version) CRAZYBEEX PNP V2.2 Firmware target:CrazybeeF4DX MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000(SPI connection) Board size: 28.5 * 28.5MM Power supply: 1-2S battery input (DC 2.9V-8.7V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Betaflight OSD(SPI Control) Built-in 5.8G VTX Built-in SPI Frsky/Flysky receiver or no receiver Built-in 5V 1A BEC
Onboard 5A 4in1 ESC	MCU upgraded to EFM8BB21 Power supply: 1S LiPo/LiPo HV Current: 5A continuous peak 6A (3 seconds) Support BLHeliSuite programmable Factory firmware: S_H_50_REV16_8.HEX Default protocol: DSHOT600
Onboard 5.8G 40CH 25/200mW VTX	Output power: 25mw~200mw switchable Frequency: 40CH Input voltage: 3.3V 5.5V Current consumption: 300mA(type) Frequency: 5.8GHz 5bands 40 channels With Race band Smartaudio ready


External TBS CRSF Nano RX Version	Original TBS CROSSFIRE Receiver ,CRSF Protocol , Official TBS transmitter compatible
Runcam Split3-Lite 1080P Camera Version	Field of View(FOV):Recording FOV 165°(FPV FOV: 165 ° @16:9, 130 ° @4:3) Video Resolution:1080@60fps/1080@50fps/1080@30fps/720@60fps Video File Format: MOV Image Resolution:2 MP TV Mode: NTSC (720480)/PAL (720576) Switchable Interface: JST 1.25mm / UART and SH 1.0mm Max Micro SD Card Supported 64G(need Class 6 or above, recommend Class 10/UHS-I/UHS-II/UHS-III) Hole Distance of Installation: 25.525.5mm PCB Size: 2929mm Lens Module Size: 14*14mm Lens Specs: M9 Power Input: DC 5-20V(Non-direct power supply from battery. Powered directly with battery will generate surges and burn the camera.)

1S 650mAh Lipo Battery	Brand Name: GNB Voltage: 1S 3.8V Capacity: 650mAh Continuous Discharge Rate: 30C Instantaneous discharge rate: 60C Size: 60mmx18mmx8mm Weight: 15.5g Connector: XT30 Quantity: 4 PCS

Features:

- Runcam Split3-lite 1080P Camera & DVR ready
- Camera Angle adjustable
- VTX power switchable 25mw~200mw

- Comes with 4 PCS Lipo Battery

TBS Crossfire Receiver Version Manual

Package Included:

1x Cinefun 1S 75mm FPV Racing Drone

4x HQPROP 1.6x1.6 4-Blade Propeller CW

4x HQPROP 1.6x1.6 4-Blade Propeller CCW

4x 1S 650mAh Lipo Battery

1x Screwdriver

1x Propeller Disassemble Tool

1x USB Charger ( Switch toward USB Port Side: 4.35V; toward connector plug port side: 4.2V)
