Note:
This remote control is not a touch screen ！

Specifications:

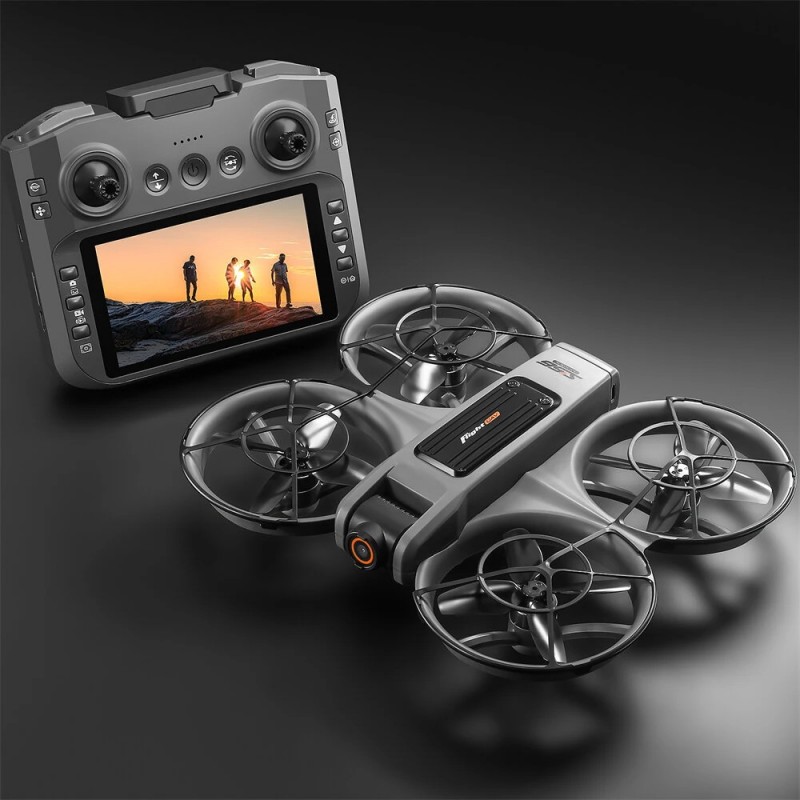

Brand Name: YLR/C Item NO.: S156

Color: Black Grey, Orange (Optional) Material: Plastic, Metal, Electronic Components Frequency: 2.4G Channel: 4CH Gyro: 6-Axis

Motor: Brushless

Quadcopter Battery: 3.7V 1800mAh Lipo (Included) Flying Time: 12-15mins Charging Time: 60-80mins Transmitter Mode: Mode 2 (Left Hand Throttle) Remote Control Battery: Built-in 3.7V 500mAh Battery R/C Distance: 100m

R/C Screen Size: 12.5cm

FPV: 2.4G WiFi

FPV Distance: 50-80m Camera: 480P HD

Lens: 90° Manual Adjustment

Quad's Size: 225 x 190 x 50mm

Take-off Weight: 180g (Battery 45g) Package Size: 26.5 x 20 x 12cm Package Weight: 735g

Features:

- Upgrade the remote control with 12.5cm large LCD screen, which can display image with no delay and fast transmission.

- Fully surrounded, propeller safety design, mini size, easy to carry.

- HD 480P pixel high-definition camera, it can capture amazing pictures and videos from the sky.
- With WiFi function, it can connect to applications and APP systems, and take photos, videos, and transmit in real time through mobile phone camera images.

- Equipped with a brushless motor, it has better wind resistance, low noise, powerful output, and supports flying and playing in a variety of venues.

- Optical flow positioning. Enhances stability and provides superior hover accuracy.
- The drone has a fixed altitude hold mode function, built-in three-sided sensor obstacle avoidance, electric adjustment lens, the lens can achieve 90° upward shooting, optical flow fixed-point positioning, and stable flight.
- In headless mode, there is no need to identify the direction of the fuselage during flight.
- With the one-key return function, you can easily find your way home.
- Draw a flight path on the screen, and the drone will fly autonomously along the specified path.
- 2.4GHz anti-interference technology.
- 4 channels, can rise, fall, forward, backward, left flight, right flight, and roll.
- Six-axis gyroscope, smoother flight and more convenient control.

Function:
Up/down/forward/backward, left/right turn, sideways flight, LED lights, 360° stunt roll, headless mode, one-button automatic return, altitude hold mode, WiFi FPV, dual-lens switchable, supports horizontal/vertical/overhead shooting, lens can be electrically adjusted 90°, Screen Controller, Optical flow positioning

Package Included:
1 x S156 RC Quadcopter
1 x Screen Remote Controller
1 x 3.7V Battery
1 x USB Charging Cable
2 x Spare Propeller
1 x Memory Card
1 x Card Reader

1 x Manual

1 x Storage Bag
