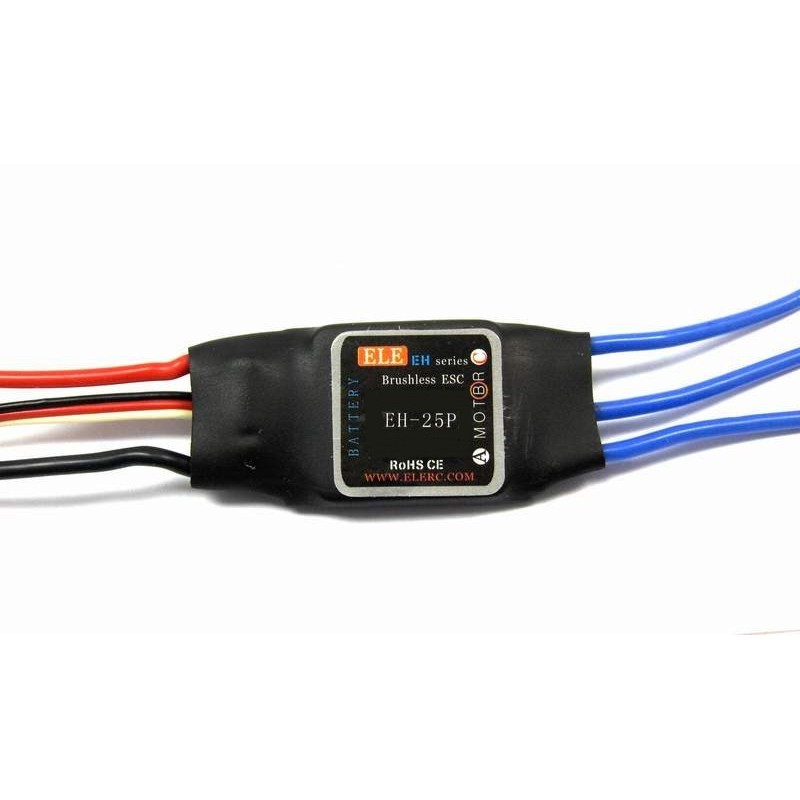

EH-25P - 25A SimonK Firmware Multi-Rotor ESC

Product Details

1  Specification

1.1 Output: Continues 25A, Burst 35A up to 10 Secs.

1.2 Input Voltage: 5.6V --- 16.8V ( Lithium : 2 - 4s or NiMH/NiCd  5 -12 Cells)

1.3 BEC (Battery Elimination Circuit) Output:

    EH-25A: (linear mode BEC)2A


1.4 Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM. (BLM: BrushLess Motor)

1.5 Size:

    Pentium-25A/24mm*45mm*11mm (width*length*height)


1.6 Weight:

     Pentium-25A:22g
