Item No.: MB30020

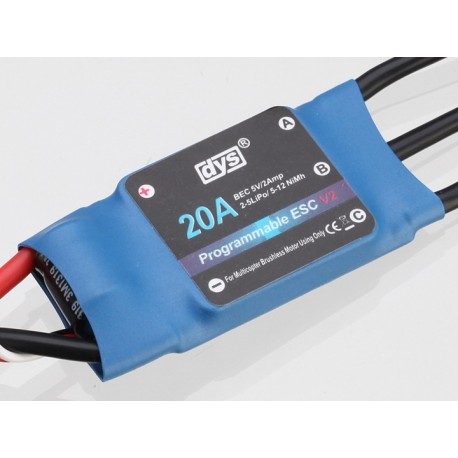

Model: 20A ESC
Categories: Speed controller

1  Specification
1.1 Running current:20A(Output:  Continuous 20A, Burst 25A up to 10 Secs.)
1.2 Input Voltage: DC 6-16.8V(2-4S Lixx)
1.3 BEC: 5V  2amp.
1.4 Size: 46mm (L) * 26mm (W) * 11mm (H).
1.5 Weight: 22g
1.6 With SimonK updated firmware for multicopter

2  Features:
2. l Drive tube and high-power Mos, and Mos tube plus a separate heat sink, Extreme low output resistance of the PCB(printed circuit board),super current endurance.
2.2 The power input uses extreme low output resistance greatly enhance the power stability, and has the protective effect on the battery.
2.3 Safety electrical function: when the power is turned on, regardless of the throttle stick in any position does not start the motor immediately, to avoid personal injury.
2.4 Separately voltage regulator IC for microprocessor. providing good anti-jamming capability.
2.5 Supported motor speed (Maximum): 210000 RPM (2 poles), 70000 RPM (6 poles), 35000 RPM (12 poles).
2.6 Using Simon K’s a dedicated multi-copter program tgy_debug, and the master chip with high stability crystal oscillator, making the motor control to more precise.
