Specifications:

VTX:

Frequency: 5.8G

Channel: 48CH

Power: 0/100/200/400/1000mW

Voltage: DC7-26V

Current:

100mw(230mA)/200mw(290mA)
400mw(360mA)/1000mw(490mA)
Antenna: IPEX4 Generation interface
Volume: 30*26*6mm

CMOS 1500TVL Camera:

Image Sensor: 1/3' CMOS

Horizotal Resoulution: 1500TVL

Lens: 2.1mm

Signal System: PAL/NTSC (OSD Internal adjustable)

S/N Ratio: >60Db(AGC OFF)

Electronic Shutter Speede: PAL: 1/50-100.000, NTSC:1/60-100,000

Auto Gain Control(AGC): LOW/MIDDLE/HIGH
Back light compensation(BLC): YES
Min Illumination: 0.001Lux/1.2F
WDR: D-WDR
DNR: 3DNR
Day/Night: Auto/Color
Power: DC 5V-30V
Net weight: 6.0g
Dimensions: 19mm*19mm*19mm

Features:

1. 5.8G FPV drone for a thrilling aerial experience.
2. Tower-shaped image transmission system for optimal signal quality.
3. TBS tuning for enhanced performance and control.
4. First-person view (FPV) capabilities for an immersive flying experience.
5. Low latency wireless camera for real-time video streaming.

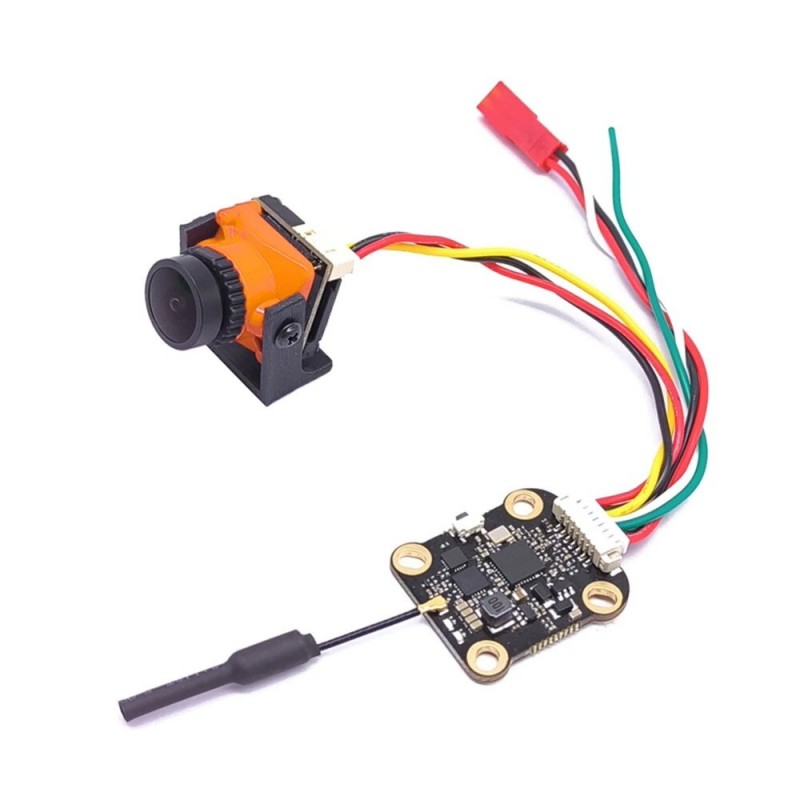

Package Included:

1x 1500TVL Camera
1x 1000mW VTX
