Convert 0-100% PWM digital signal into analog signal
The input digital signal can be a 0-100% PWM signal at 3.3V or 5V or 24V level.
Output analog signal can be 0-10V voltage or 0-5V voltage.
According to different input and output signals
Widely used in PLC; signal interface switching of single chip or other industrial control board.
PWM signal receiving frequency range: 100HZ-3KHZ. It is recommended that 1KHZ-3KHZ. PWM signals of other frequencies can also be customized.
PWM signal input level range: When the peak-to-peak value is 4.5V to 10V, the jumper is inserted at 5V. This type of level signal is mainly for the conventional industrial control card (such as MACH3 board), 5V CPU interface. ,
When the peak-to-peak value is 12 to 24V, the jumper is inserted at 24V. This type of level signal is mainly for the conventional PLC interface.
When the custom peak-to-peak value is 3.3V, the jumper is inserted at 24V. This type of level signal is mainly for the microcontroller interface of 3.3V level. The level of 3.3V is to be customized.
Analog voltage output parameters, the following is the output 0-10V voltage to illustrate.
After power-on, when there is no input signal, the output is 0V, and there is output when there is input.
This PWM signal is 0-10V module, the linearity is suitable for general occasions. If the linearity requirement is very high, you can check whether another function of the store is suitable.
Frequency conversion voltage (0-10KHZ to 0-10V) This model FV-10K10V this linearity is higher.
Power input range: 15V-30V. (Power supply requirements: greater than 100MA
Low power output. About 10 mA
Mounting fixed: 4 M3 screw holes.
Colour: green
Material: plastic
Package Contents:

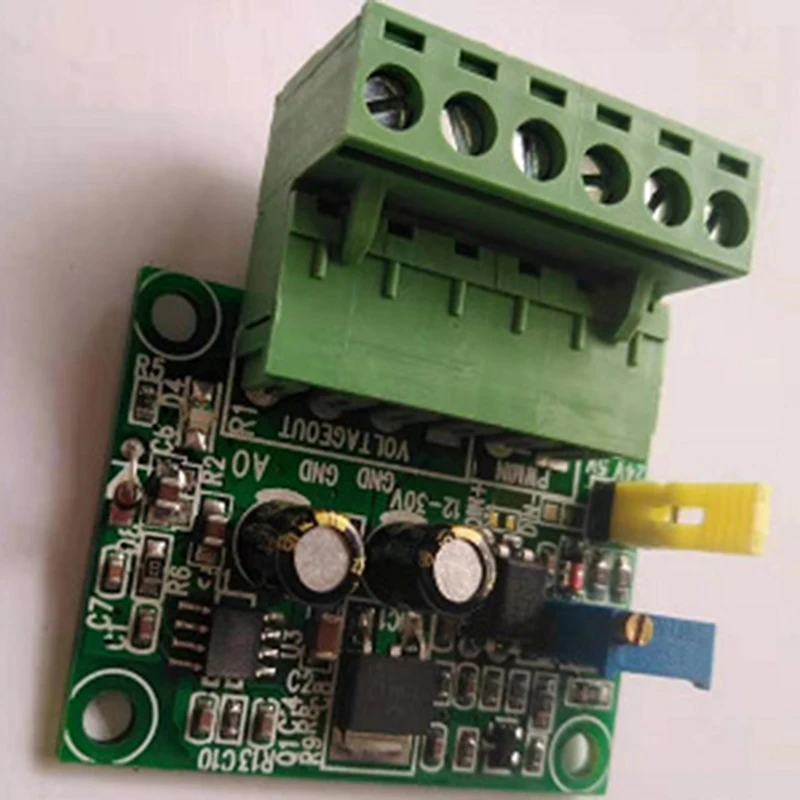

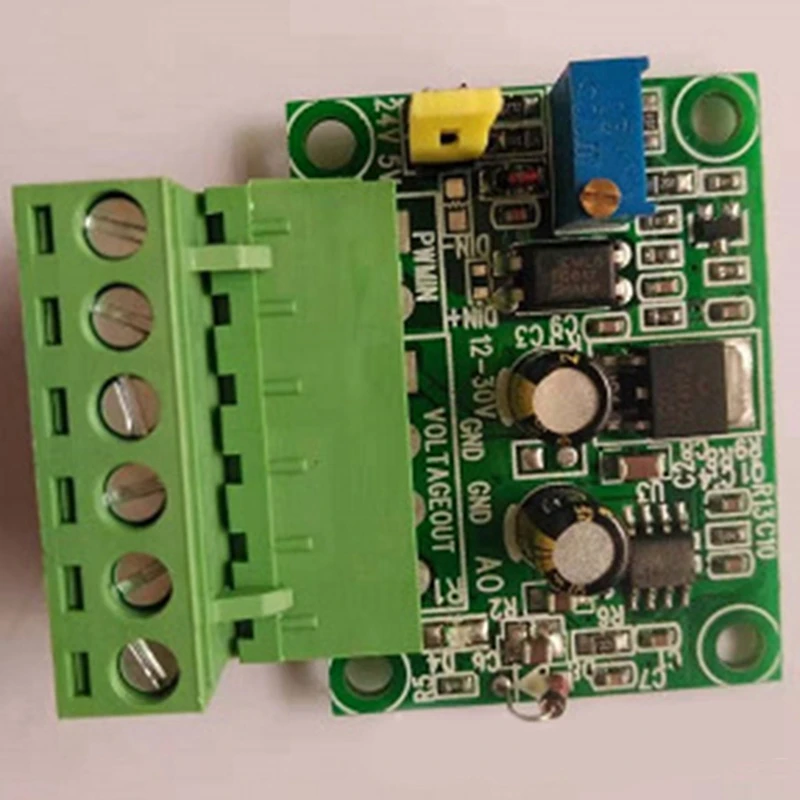

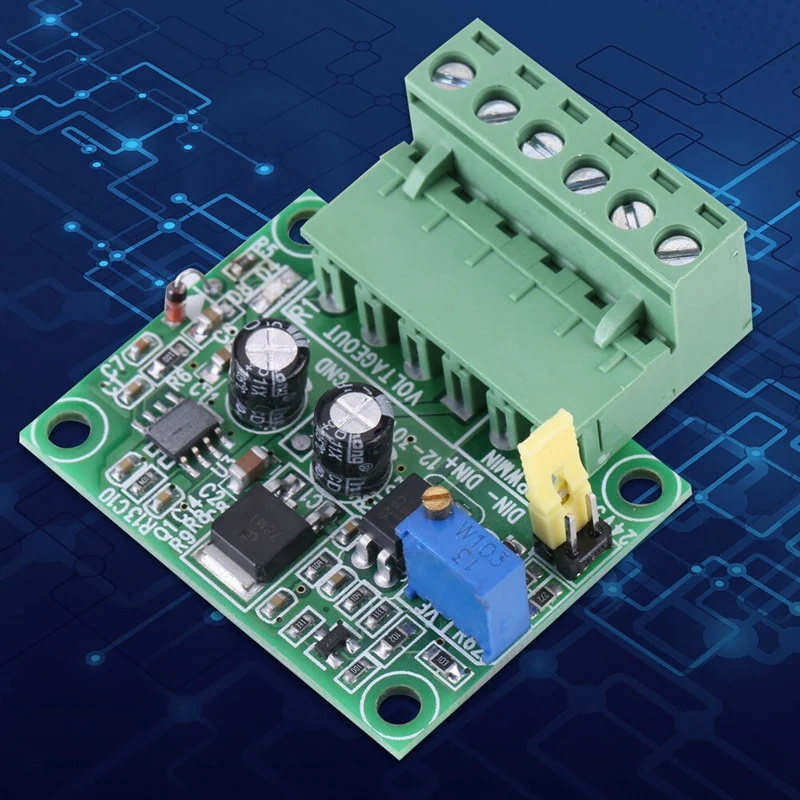

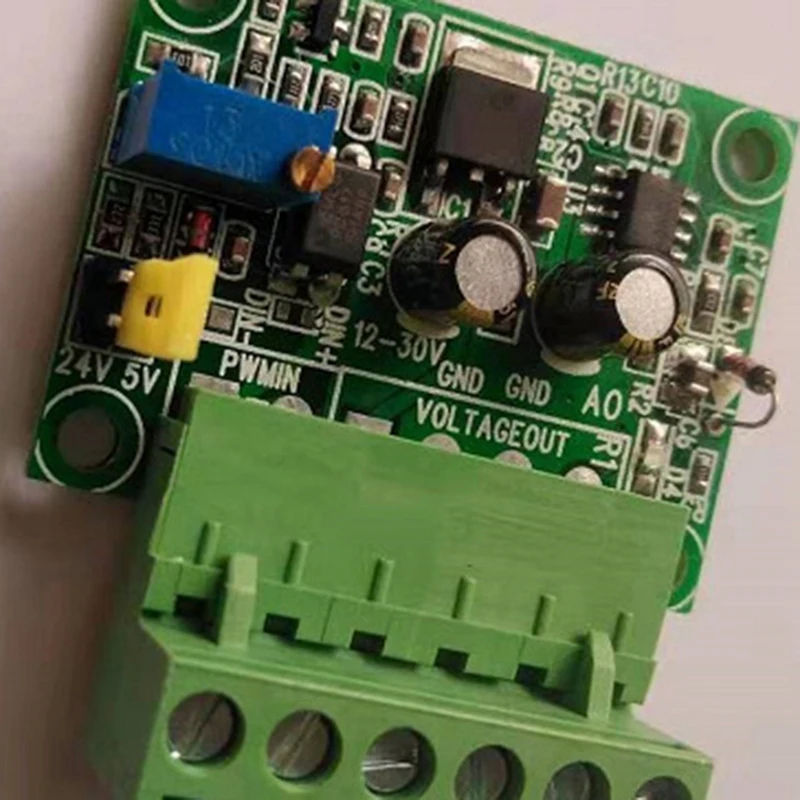

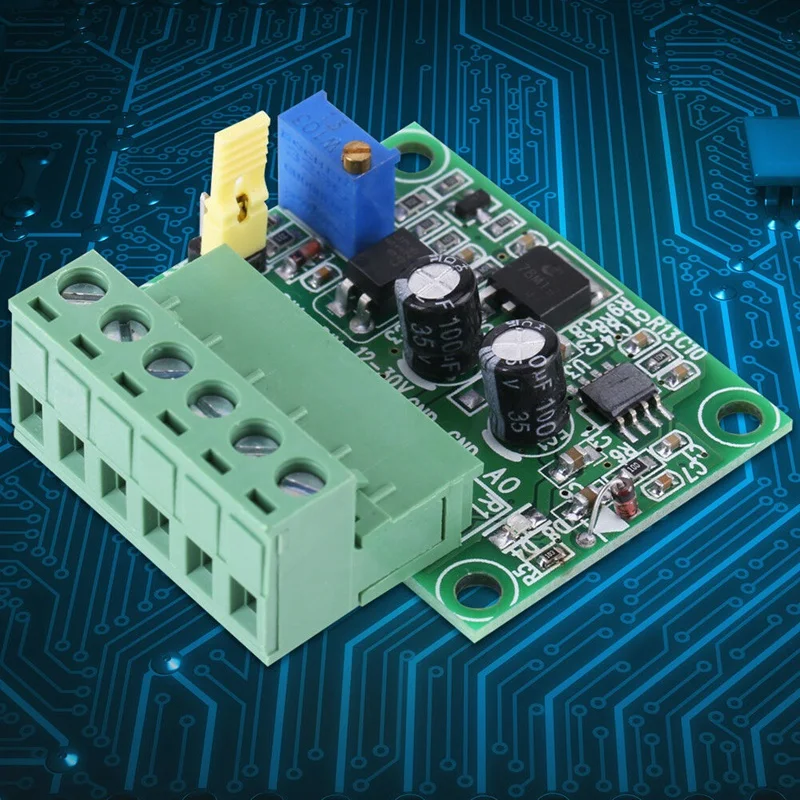

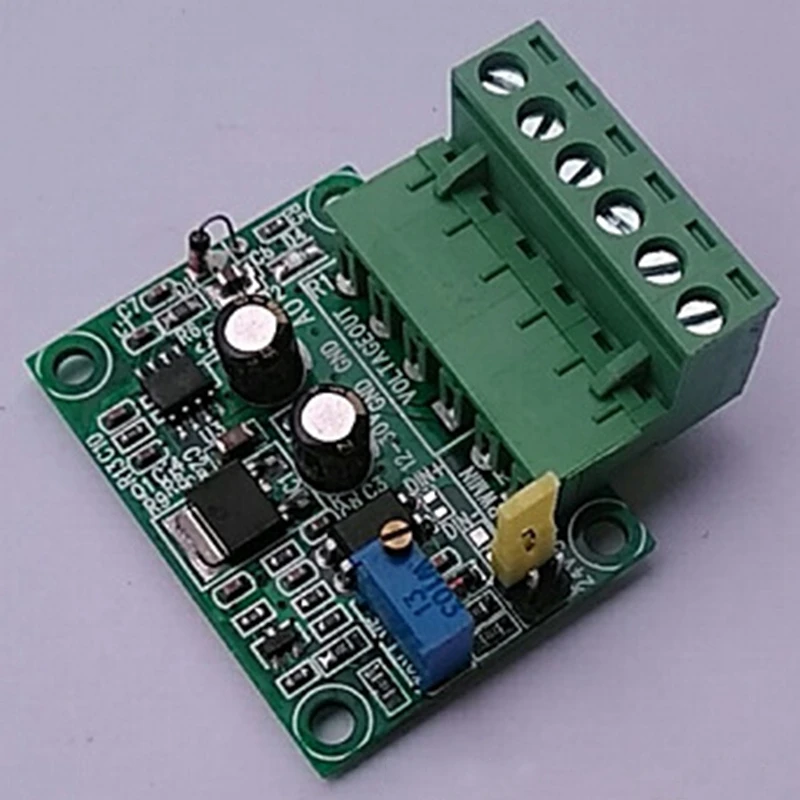

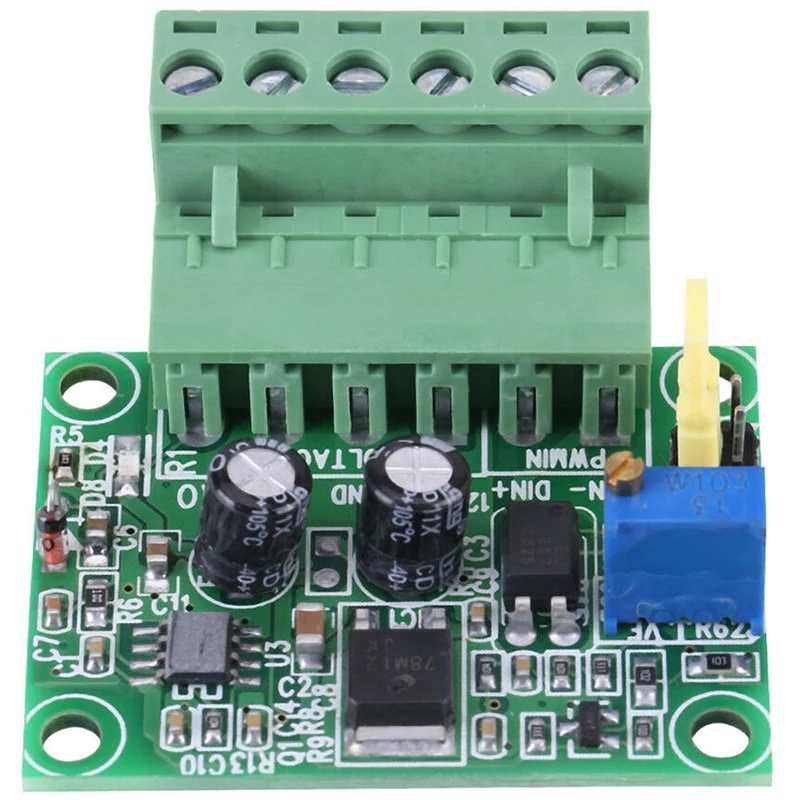

1 x PWM to voltage module
Only the above package content, other products are not included.
