DC 6-60V 30A DC Motor Speed Controller Slow Start Soft Stop PWM Digital Display 0~100% Adjustable Μεγαλύτερη προβολή

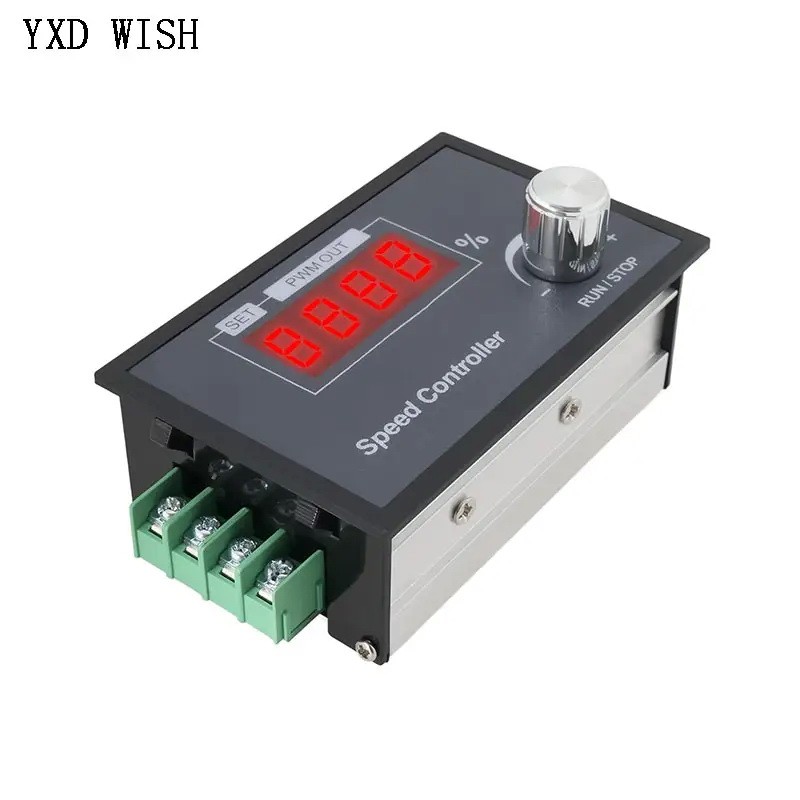

DC 6-60V 30A DC Motor Speed Controller Slow Start Soft Stop PWM Digital Display 0~100% Adjustable

(SKU): DC 6-60V 30A

DC 6-60V 30A DC Motor Speed Controller Slow Start Soft Stop PWM Digital Display 0~100% Adjustable

Περισσότερες λεπτομέρειες

Διαθέσιμο

20,00 € με Φ.Π.Α

Άλλες πληροφορίες

DC 6-60V 30A DC Motor Speed Controller Slow Start Soft Stop PWM Digital Display 0~100% Adjustable Motor Speed Control Switch

Specifications:
1. The products are made of high quality materials and the quality is guaranteed
2. Stable product performance and long service life
3. Lightweight product design, wide application scenarios, very suitable for DIY enthusiasts
4. Button design, more convenient for customers to use
5. Can set the slow start/slow stop time, the maximum current up to 30A


Product parameters:
Input voltage: DC6-60V
Output voltage: linear under load
Output current: 0-30A
Continuous current: within 20A
Speed regulation type: flow regulation
Speed control mode: click + -
Speed range: 0-100%
Control frequency: 21KHZ
Connection type: fence type terminal
Support motor: DC brush motor
Length * Width * Height Module size: 96mm*61mm*34mm
Length * width panel opening: 92mm*56mm
Speed digital display: percentage 0-100


Setting instructions:
Slow start time setting function 1:000-100 Slow start to 100% speed time is adjustable between 0-10 seconds, the default is 1 second.
Slow stop time setting function 2:00 0-100 Slow stop time is adjustable between 0-10 seconds, the default is 1 second.
Lower speed setting function 3:00 0-080 The minimum speed is adjustable from 0 to 80%, and is smaller than the maximum speed setting value. The default value is 0.
Speed upper limit setting function 4:00 0-100 The maximum speed is adjustable from 0 to 100%, and is greater than the minimum speed setting value. The default value is 100%.
Acceleration and deceleration value setting function 5:00 1 002 005 010 015 020 025 Each time the plus or minus key is pressed, the speed changes by 1%,2%,5%,10%,15%,20%,25%


Attention:
The input voltage must be divided into positive and negative, but not input 220V, the input voltage should be equal to the rated voltage of the motor within 6-60V.
