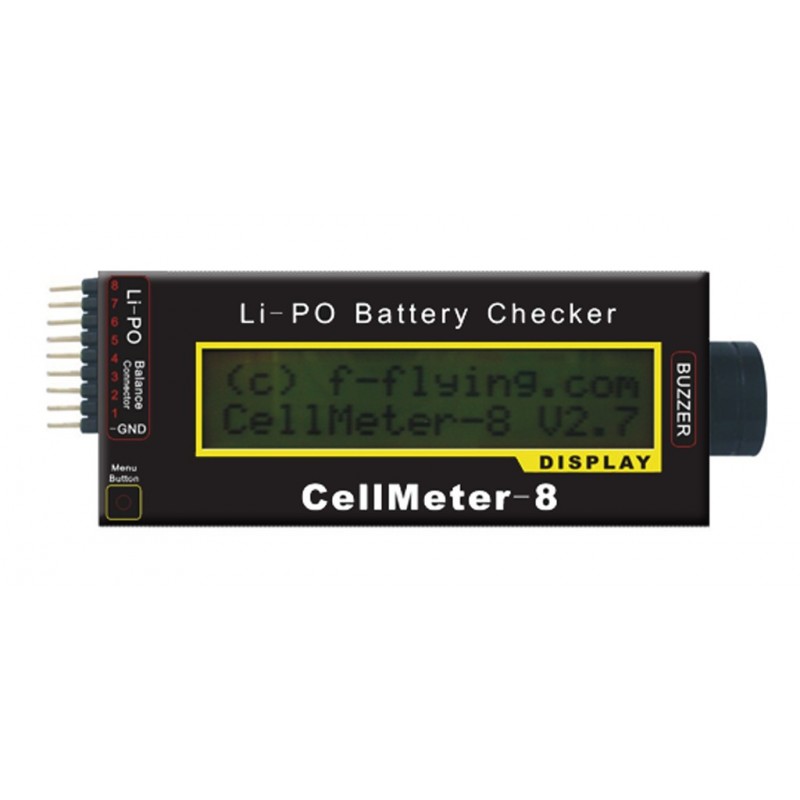

     CellMeter-8

     Accurate and easy to use, the CellMeter-8 is a microprocessor controlled high precise voltage detector, the unit can measure each cell voltage in 2S-8S LiPO/LiFe/LiIO battery pack, the total voltage and voltage difference are displayed simultaneously.
     Especially, CellMeter-8 will give a warning buzzer/LED when any cell voltage reaches any value you set in flight, or over 4.22V in charge.
     The unit includes reverse polarity detection, and 2.54 or 2.0mm pin distance balance connector for all kinds of battery.
     In flight, CellMeter-8 can alarm when any cell voltage under setup value, before flight please
press the button set up the lowest cell voltage and press for 3 seconds confirm.

Specifications:

?     Battery range: 2S-8S LiPO
?     Voltage display resolution: 0.001V
?     Voltage Detection precision: 0.005V
?     Cell Voltage display range: 1.50-4.99V
?     Total Voltage display range:3.00-29.94V
?     Alarm cell voltage: 2.00-4.00V
?     Current loading of test:8mA
?     Pins distance: 2.54mm OR 2.00mm
?     Size: 87x25x12(L*W*T,mm)
?     Weight: 20g
?     Package: transparent heat shrink tube
