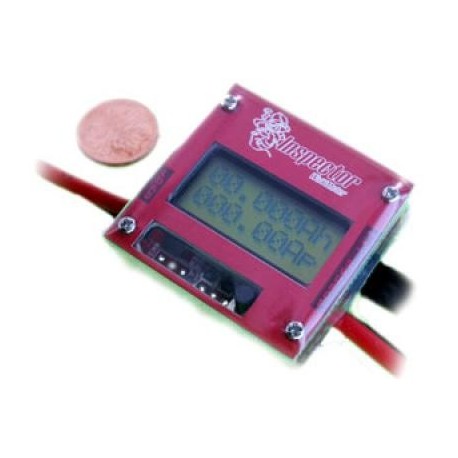

Western Robotics Inspector WattMeter

Αναφορά (SKU): WRL-WATTM

Διαθέσιμο

Product Details


	The Inspector Wattmeter is an easy-
	to-use precision instrument for
	measuring and calculating the
	electrical parameter of any radio
	control model. These parameters
	would be used to optimize your
	electric model to its top performance.
	The Inspector Wattmeter measures
	real-time current, voltage, peak
	current, minimum voltage, power,
	charge and energy for the electric
	model that it's connected to. This will
	allow you to investigate and tune the
	performance of your R/C model to its
	optimal performance. You can also
	determine critical things such as
	efficiency, and current consumption
	of an ESC, BEC and motor, power
	consumption/lost at all conditions.
	These precise measurements and
data will help you fine tune your R/C model to get the proper performance and
provide a safe and consistent power source. The Wattmeter is also ideal for
tracking the current and power consumption during the charging / discharging
of any rechargeable batteries in series with a battery charger.
The Inspector Wattmeter is designed and manufactured in Canada with the
leading edge micro-controller technology and robust components that will
"inspect" most high power applications.

FEATURES:
SPECIFICATIONS:	l	Ultra compact watt meter and
Height ----- 11 mm		power analyzer that will fit most RC
Width ----- 40 mm		models.
Length ----- 40 mm	l	Measures current, voltage, power,
Weight ----- 42 grams		charge, energy, peak current, peak
		wattage and minimum voltage.
Click to Download Instruction Manual	l	Wide range of voltage reading from
		0-60V and current reading of 0-100A.
	l	High precision and accuracy of
		0.01A and 0.1 V.
	l	High current capability up to 50A
		continuous and 100A peak at 60V.
	l	Compact and light weight LCD
		gives visual feedback with user
		selectable display.
	l	Uses leading edge 25 MIPS micro-
		controller with 16 bit resolution delta-sigma ADC.
	l	High quality power components and
		wires to withstand high power
		applications
