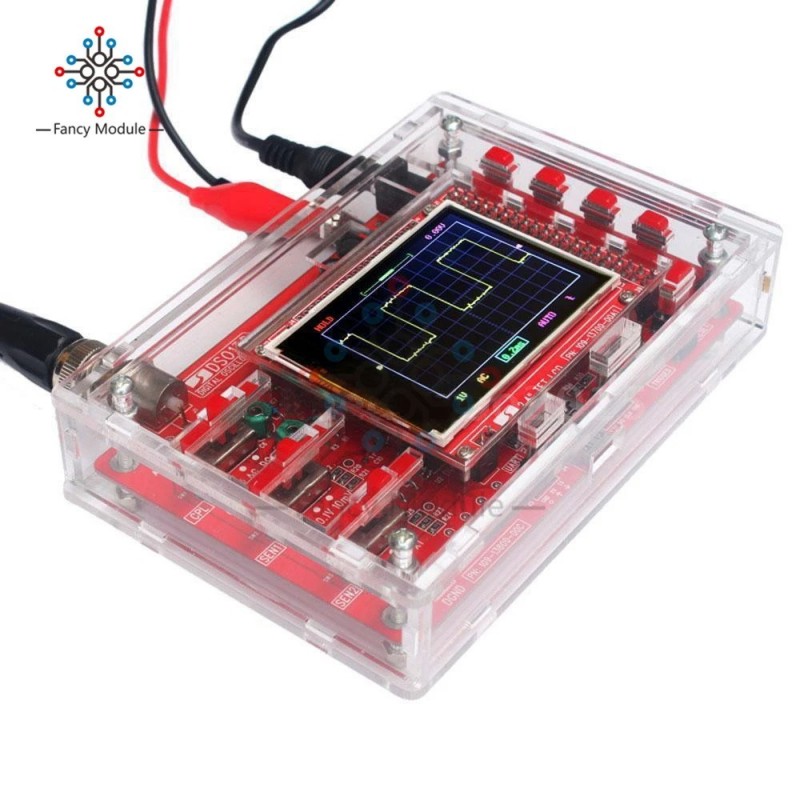

Digital Oscilloscope SMD 2.4" TFT LCD 1Msps 0 -200KHz 12Bit with Alligator Probe for DSOO138 Scilloscope

Αναφορά (SKU): 011343

Περισσότερες λεπτομέρειες

Διαθέσιμο

Εκτύπωση

Άλλες πληροφορίες

Fully Assembled Digital Oscilloscope SMD 2.4" TFT LCD 1Msps 0 -200KHz 12Bit with Alligator Probe for DSOO138 scilloscope

This is Welded(Assembled), buyer can use directly.

Feature:

Training for electronic production, complete detailed descriptive information, including schematics, production guidance, instructions, troubleshooting methods, etc., making a high success rate.

Component species diversity for students to identify elements, inline elements welding, soldering SMD components training.

Students can get in at the same time making a practical tool for audio, video synchronization, low-frequency switching power supply, infrared receiver transmitter signal waveform and many other occasions, effectively observed and measured, increased interest in learning, improve learning outcomes.

Kits using ARM Cortex-M3 processor, and includes a 2.4 -inch color TFT display can be used as test ARM development board.

Available source, the ability of a friend can be secondary development kit based on, for example, it can be changed to Millivoltmeter, data loggers, and so on.

Circuit is simple, reliable.

Specification:

Maximum real-time sampling rate: 1Msps

Accuracy: 12Bit

Sampling buffer depth: 1024 bytes

Analog bandwidth: 0 - 200KHz

Vertical Sensitivity: 10mV / Div - 5V / Div ( 1-2-5 progressive manner )

Adjustable vertical displacement, and with instructions

Input impedance: 1MΩ

Maximum input voltage: 50Vpp (1: 1 probe ), 400Vpp (10: 1 probe )

Coupling modes include DC / AC / GND

The horizontal time base range: 10μs / Div - 50s / Div ( 1-2-5 progressive manner )

With automatic, regular and one-shot mode, easy to capture the moment waveform

Available rising or falling edge trigger

Adjustable trigger level position, and with instructions

Observable trigger waveform before ( negative delay )

Can freeze at any time waveform display (HOLD function )

Comes 1Hz /3.3V square wave test signal source

Package Included:

1 * Assembled Digital Oscilloscope with Probe

Note:

The product box needs to be assembled manually! !
